Description

Price

1

Front Backrest Ass'y | Includes 1 - 2.

204610391

Unavailable

Front Backrest Ass'y | CHALLENGER 1800 5679.

204610352

Unavailable

2

Backrest Cover (Colorado Pearl)

204610392

Unavailable

Front Backrest Cover (Dark Green) | CHALLENGER 1800 5679.

204610029

Unavailable

3

Staple

293730005

Unavailable

4

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

5

Pop Rivet 3/16"

293150043

$2.09

6

Threaded Rod M5

269000380

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Rear Backrest Ass'y | Includes 8 - 12. CHALLENGER 1800 5675.

204610399

Unavailable

Rear Backrest Ass'y | CHALLENGER 1800 5679.

204610264

Unavailable

9

Rear Bump Cover (Colorado Pearl) | CHALLENGER 1800 5675.

204610400

Unavailable

Rear Bump Cover (Dark Green) | CHALLENGER 1800 5679.

204610035

Unavailable

10

Rear Backrest Cover (Earthern Clay) (Cen | CHALLENGER 1800 5675.

204610401

Unavailable

Rear Backrest Cover (White) (Center) | CHALLENGER 1800 5679.

204610368

Unavailable

11

Rear Backrest Cover (Earthern Clay) RH | CHALLENGER 1800 5675.

204610402

Unavailable

Rear Backrest Cover (White) R.H | CHALLENGER 1800 5679.

204610369

Unavailable

12

Rear Backrest Cover (Earthern Clay) L.H | CHALLENGER 1800 5675.

204610403

Unavailable

Rear Backrest Cover (White) L.H | CHALLENGER 1800 5679.

204610382

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Rear Seat Ass'y | Includes 14 - 20. CHALLENGER 1800 5675.

204610404

Unavailable

Rear Seat Ass'y | CHALLENGER 1800 5679.

204610365

Unavailable

15

Rear Seat Cover (Colorado Pearl) | CHALLENGER 1800 5675.

204610405

Unavailable

Rear Seat Cover (Dark Green) | CHALLENGER 1800 5679.

204610039

Unavailable

16

Rear Seat Pillow Ass'y | Includes 16 - 17. CHALLENGER 1800 5675.

204610406

Unavailable

Rear Seat Pillow Ass'y | CHALLENGER 1800 5679.

204610383

Unavailable

17

Rear Seat Pillow Cover (Earthern Clay) | CHALLENGER 1800 5675.

204610407

Unavailable

Rear Seat Pillow Cover | CHALLENGER 1800 5679.

204610384

Unavailable

18

Rear Seat Strap (Colorado Pearl)

204610517

Unavailable

Rear Seat Strap (Dark Green) | CHALLENGER 1800 5679.

204610518

Unavailable

19

Hex. Screw M6 X 16

207161660

$1.59

20

Flat Washer M6, Stainless

234062600

$0.77

21

Stainless Flat Washer M6

234061600

$0.33

22

LH Rear Seat Arm-Rest Ass'y | Includes 22 - 23. CHALLENGER 1800 5675.

204610410

Unavailable

LH Rear Seat Arm-Rest Ass'y | CHALLENGER 1800 5679.

204610009

Unavailable

23

LH Rear Seat Arm-Rest Cover (Colorado Pe | CHALLENGER 1800 5675.

204610411

Unavailable

LH Rear Seat Arm-Rest Cover (Dark Green) | CHALLENGER 1800 5679.

204610050

Unavailable

24

Rear Spoiler Ass'y | Includes 67 - 69.

204610420

Unavailable

Rear Spoiler Ass'y | CHALLENGER 1800 5679.

204610362

Unavailable

25

Spoiler Cover

204610421

Unavailable

Rear Spoiler Cover (Dark Green) | CHALLENGER 1800 5679.

204610052

Unavailable

26

Staple Cover, Meter

204610184

Unavailable

27

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

28

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

29

Platform Ass'y | Includes 29 - 31.

204610422

Unavailable

Platform Ass'y | CHALLENGER 1800 5679.

204610360

Unavailable

30

Platform Cover (Earthern Clay)

204610423

Unavailable

Platform Cover | CHALLENGER 1800 5679.

204610361

Unavailable

31

Strap

204610194

Unavailable

32

Flat Washer 10 mm, Stainless

234002600

$2.22

33

Black, Dart

293730006

$0.99

34

RH Elbow Padding Ass'y | Includes 34 - 37.

204610412

Unavailable

RH Elbow Padding Ass'y | CHALLENGER 1800 5679.

204610356

Unavailable

35

RH Elbow Padding Cover (Colorado Pearl

204610413

Unavailable

RH Elbow Padding Cover (Dark Green) | CHALLENGER 1800 5679.

204610120

Unavailable

36

Black, Dart

293730006

$0.99

37

Flat Washer M6, Stainless

234062600

$0.77

38

LH Elbow Padding Ass'y | Includes 38 - 41.

204610414

Unavailable

LH Elbow Padding Ass'y | CHALLENGER 1800 5679.

204610357

Unavailable

39

Black, Dart

293730006

$0.99

40

LH Elbow Padding Cover (Colorado Pearl

204610415

Unavailable

LH Elbow Padding Cover (Dark Green) | CHALLENGER 1800 5679.

204610122

Unavailable

41

Flat Washer M6, Stainless

234062600

$0.77

42

Center Front Seat Ass'y | Includes 42 - 49.

204610393

Unavailable

Center Front Seat Ass'y | CHALLENGER 1800 5679.

204610261

Unavailable

43

Front Seat Latch

204610178

Unavailable

44

Staple Cover, Meter

204610184

Unavailable

45

Passenger Strap

293000060

Unavailable

46

Screw K40 X 10

241140060

$1.48

47

Flat Washer 4 mm, Stainless

234042600

$1.15

48

Center Front Seat Cover (Earthern Clay)

204610394

Unavailable

Center Front Seat Cover (White) | CHALLENGER 1800 5679.

204610350

Unavailable

49

Socket Head Screw M4 X 16

205441660

$1.47

50

Rubber Stopper

293830043

Unavailable

51

Pop Rivet 3/16"

293150013

$1.37

52

Passenger Strap

293000060

Unavailable

53

Flat Washer 4 mm, Stainless

234042600

$1.15

54

Screw K40 X 10

241140060

$1.48

55

LH Front Seat Ass'y | Includes 55 - 56.

204610395

Unavailable

LH Front Seat Ass'y | CHALLENGER 1800 5679.

204610262

Unavailable

56

LH Front Seat Cover (Earthern Clay)

204610396

Unavailable

LH Front Seat Cover (White) | CHALLENGER 1800 5679.

204610353

Unavailable

57

RH Rear Seat Arm-Rest Ass'y | Includes 57 - 58. CHALLENGER 1800 5675.

204610408

Unavailable

RH Rear Seat Arm-Rest Ass'y | CHALLENGER 1800 5679.

204610008

Unavailable

58

RH Rear Seat Arm-Rest Cover (Colorado | CHALLENGER 1800 5675.

204610409

Unavailable

RH Rear Seat Arm-Rest Cover (Dark Gree | CHALLENGER 1800 5679.

204610048

Unavailable

59

SEAT BRACKET - Call your local BRP dealership

204610100

Unavailable

60

RH Front Seat Ass'y | Includes 60 - 61.

204610397

Unavailable

RH Front Seat Ass'y | CHALLENGER 1800 5679.

204610263

Unavailable

61

RH Front Seat Cover (Earthern Clay)

204610398

Unavailable

RH Front Seat Cover (White) | CHALLENGER 1800 5679.

204610355

Unavailable

62

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

63

Dart

293730021

$7.79

64

Seat Stud

204610207

Unavailable

65

Flat Washer 8 mm, Stainless

234082600

$2.43

66

RIVET - Call your local BRP dealership

293150065

Unavailable

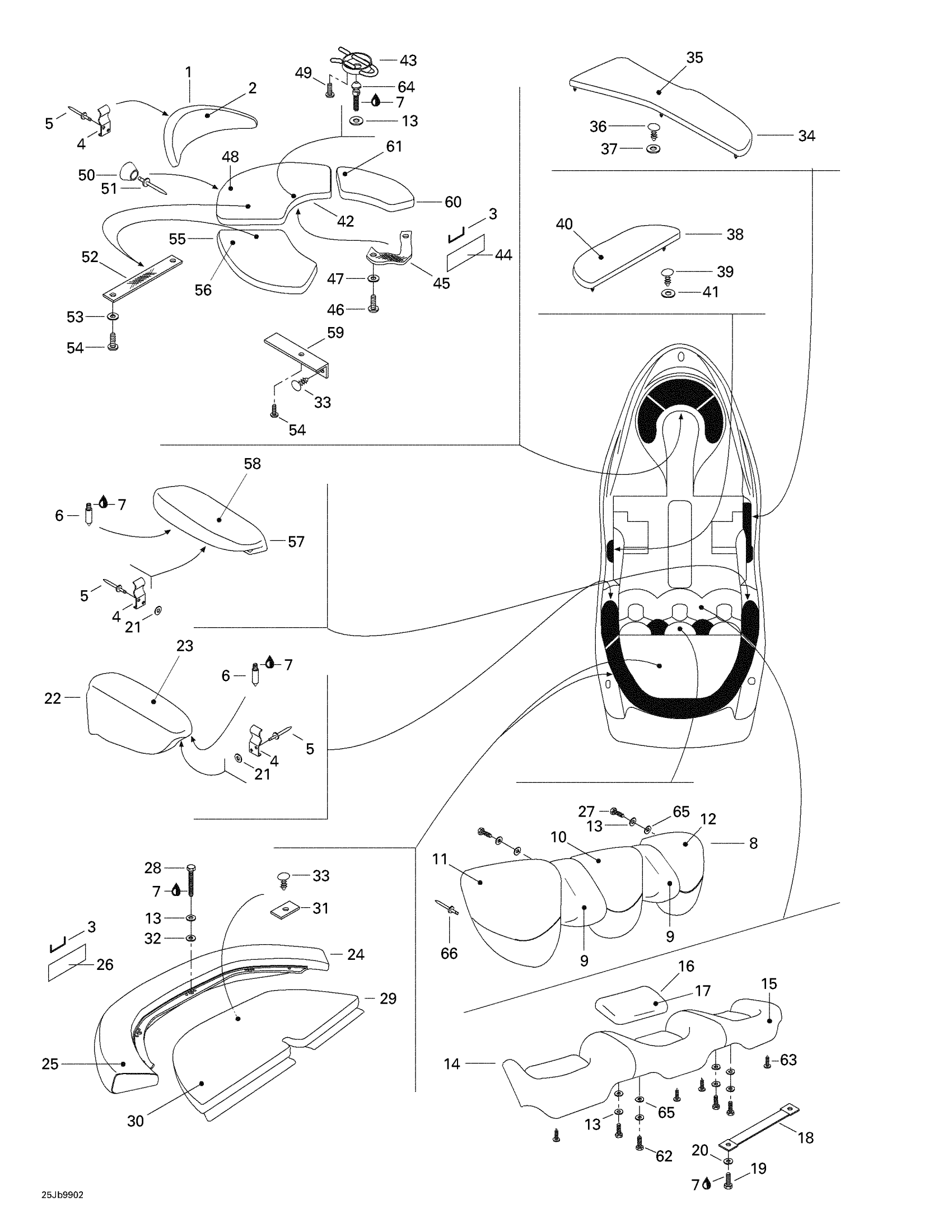

Sea-doo Challenger 1800, 5675/5679, 1999 09- Rear Seat Diagram

Front Backrest Ass'y | Includes 1 - 2.

Front Backrest Ass'y | CHALLENGER 1800 5679.

Backrest Cover (Colorado Pearl)

Front Backrest Cover (Dark Green) | CHALLENGER 1800 5679.

Staple

SEAT SUPPORT - Call your local BRP dealership

Pop Rivet 3/16"

Threaded Rod M5

Loctite 243, 10 ml

Rear Backrest Ass'y | Includes 8 - 12. CHALLENGER 1800 5675.

Rear Backrest Ass'y | CHALLENGER 1800 5679.

Rear Bump Cover (Colorado Pearl) | CHALLENGER 1800 5675.

Rear Bump Cover (Dark Green) | CHALLENGER 1800 5679.

Rear Backrest Cover (Earthern Clay) (Cen | CHALLENGER 1800 5675.

Rear Backrest Cover (White) (Center) | CHALLENGER 1800 5679.

Rear Backrest Cover (Earthern Clay) RH | CHALLENGER 1800 5675.

Rear Backrest Cover (White) R.H | CHALLENGER 1800 5679.

Rear Backrest Cover (Earthern Clay) L.H | CHALLENGER 1800 5675.

Rear Backrest Cover (White) L.H | CHALLENGER 1800 5679.

Flat Washer M6, Stainless

Rear Seat Ass'y | Includes 14 - 20. CHALLENGER 1800 5675.

Rear Seat Ass'y | CHALLENGER 1800 5679.

Rear Seat Cover (Colorado Pearl) | CHALLENGER 1800 5675.

Rear Seat Cover (Dark Green) | CHALLENGER 1800 5679.

Rear Seat Pillow Ass'y | Includes 16 - 17. CHALLENGER 1800 5675.

Rear Seat Pillow Ass'y | CHALLENGER 1800 5679.

Rear Seat Pillow Cover (Earthern Clay) | CHALLENGER 1800 5675.

Rear Seat Pillow Cover | CHALLENGER 1800 5679.

Rear Seat Strap (Colorado Pearl)

Rear Seat Strap (Dark Green) | CHALLENGER 1800 5679.

Hex. Screw M6 X 16

Flat Washer M6, Stainless

Stainless Flat Washer M6

LH Rear Seat Arm-Rest Ass'y | Includes 22 - 23. CHALLENGER 1800 5675.

LH Rear Seat Arm-Rest Ass'y | CHALLENGER 1800 5679.

LH Rear Seat Arm-Rest Cover (Colorado Pe | CHALLENGER 1800 5675.

LH Rear Seat Arm-Rest Cover (Dark Green) | CHALLENGER 1800 5679.

Rear Spoiler Ass'y | Includes 67 - 69.

Rear Spoiler Ass'y | CHALLENGER 1800 5679.

Spoiler Cover

Rear Spoiler Cover (Dark Green) | CHALLENGER 1800 5679.

Staple Cover, Meter

Hex. Screw M6 X 40, Scotch Grip

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

Platform Ass'y | Includes 29 - 31.

Platform Ass'y | CHALLENGER 1800 5679.

Platform Cover (Earthern Clay)

Platform Cover | CHALLENGER 1800 5679.

Strap

Flat Washer 10 mm, Stainless

Black, Dart

RH Elbow Padding Ass'y | Includes 34 - 37.

RH Elbow Padding Ass'y | CHALLENGER 1800 5679.

RH Elbow Padding Cover (Colorado Pearl

RH Elbow Padding Cover (Dark Green) | CHALLENGER 1800 5679.

Black, Dart

Flat Washer M6, Stainless

LH Elbow Padding Ass'y | Includes 38 - 41.

LH Elbow Padding Ass'y | CHALLENGER 1800 5679.

Black, Dart

LH Elbow Padding Cover (Colorado Pearl

LH Elbow Padding Cover (Dark Green) | CHALLENGER 1800 5679.

Flat Washer M6, Stainless

Center Front Seat Ass'y | Includes 42 - 49.

Center Front Seat Ass'y | CHALLENGER 1800 5679.

Front Seat Latch

Staple Cover, Meter

Passenger Strap

Screw K40 X 10

Flat Washer 4 mm, Stainless

Center Front Seat Cover (Earthern Clay)

Center Front Seat Cover (White) | CHALLENGER 1800 5679.

Socket Head Screw M4 X 16

Rubber Stopper

Pop Rivet 3/16"

Passenger Strap

Flat Washer 4 mm, Stainless

Screw K40 X 10

LH Front Seat Ass'y | Includes 55 - 56.
