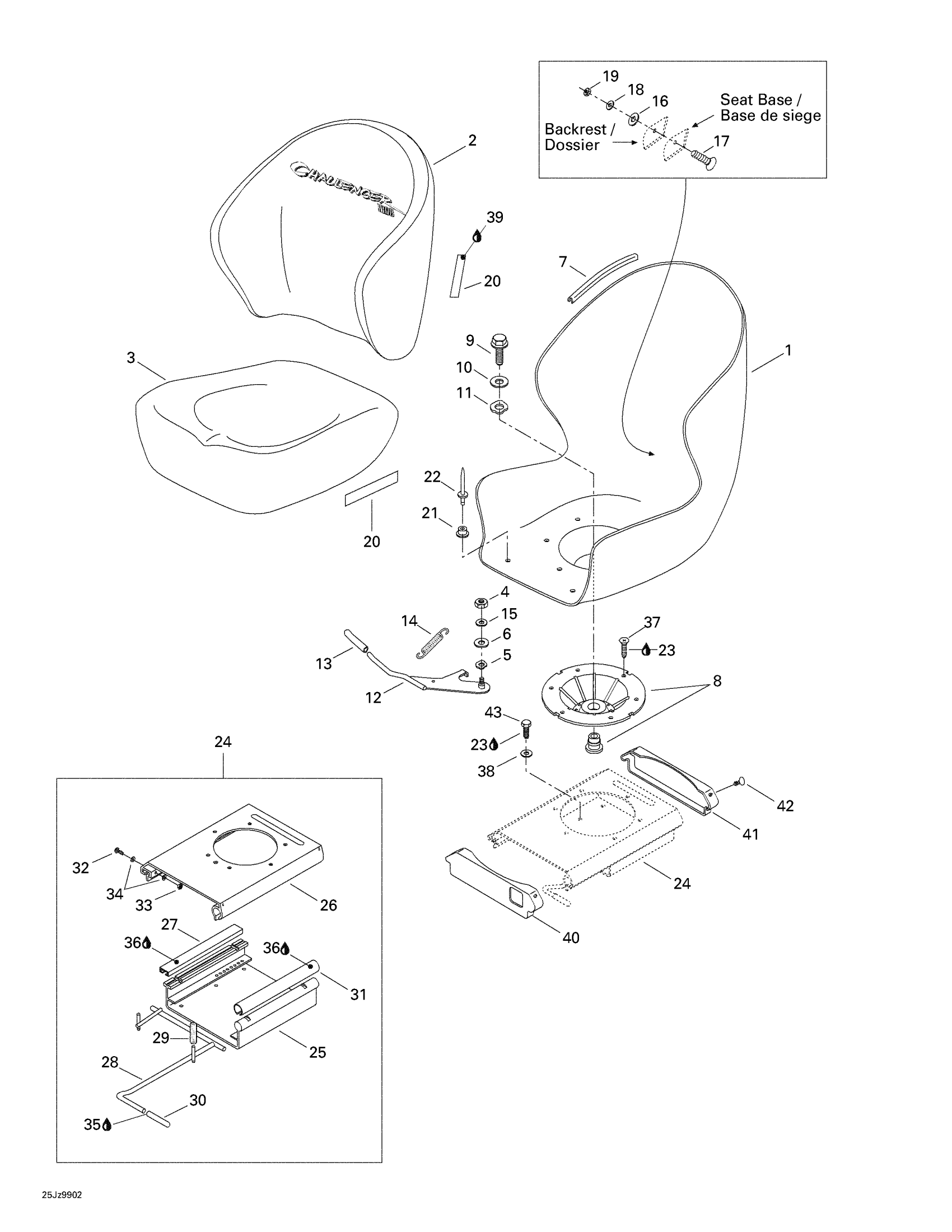

Sea-doo Challenger 1800, 5675/5679, 1999 Driver Passenger Seat Diagram

#

Description
Price

1

Driver Seat Ass'y | Includes 1 - 22.

204610416

Unavailable

Driver Seat Ass'y (5679)

204610509

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Backrest Cushion

204610418

Unavailable

Backrest Cushion (White) (5679)

204610373

Unavailable

3

Seat Cushion

204610419

Unavailable

Seat Cushion (Dark Green) (5679)

204610374

Unavailable

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Washer

211200059

Unavailable

6

Washer (Nylon)

204610440

Unavailable

7

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

8

SWIVEL PLATE - Call your local BRP dealership

204610513

Unavailable

9

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

10

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

11

WASHER - Call your local BRP dealership

293200056

Unavailable

12

Lever Arm

204610524

Unavailable

13

Handle

204610348

Unavailable

14

SPRING - Call your local BRP dealership

204610349

Unavailable

15

Stainless Flat Washer M6

234061600

$0.33

16

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

17

Socket Head Screw M4 X 16

205441660

$1.47

18

Flat Washer

204610439

Unavailable

19

NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership

232041600

Unavailable

20

VELCRO STRIP - Call your local BRP dealership

293740004

Unavailable

21

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

22

Pop Rivet 1/8

293150061

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Lower Part

269500636

Unavailable

26

Upper Part

269500637

Unavailable

27

Rectangular Bushing

269500638

Unavailable

28

Rod Ass'y

269500639

Unavailable

29

Spring

269500640

Unavailable

30

Handle

204610348

Unavailable

31

Circle Bushing

269500642

Unavailable

32

Hex. Screw M6 X 50

207065060

$2.22

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Stainless Flat Washer M6

234061600

$0.33

35

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

36

Synthetic Grease, 400 G

293550010

Unavailable

37

PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

208561660

Unavailable

38

Flat Washer M6, Stainless

234062600

$0.77

39

Loctite 4471, 20 G

293800058

Unavailable

40

Front Protector

204610375

Unavailable

41

Rear Protector

204610376

Unavailable

42

Black, Dart

293730006

$0.99

43

Hex. Screw M6 X 35

207163560

$1.49
