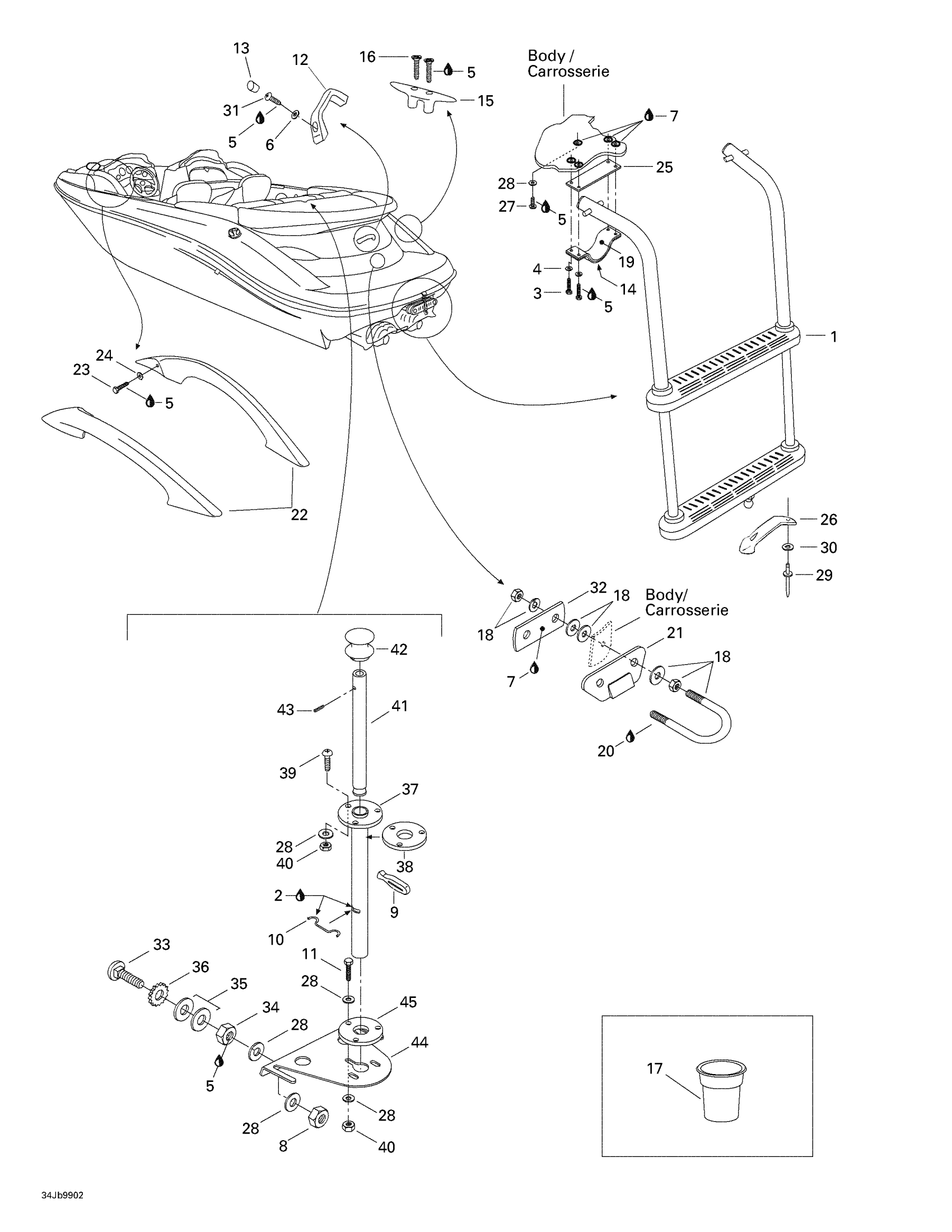

Sea-doo Challenger 1800, 5675/5679, 1999 09- Body And Accessories 3 Diagram

#

Description
Price

1

LADDER - Call your local BRP dealership

204060186

Unavailable

2

Step

291001279

Unavailable

3

Retaining Knob

293000084

Unavailable

4

Lock Washer Helical M6

234161601

$1.15

5

Loctite 243, 10 ml

293800060

$21.49

6

Stainless Flat Washer M6

234061600

$0.33

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

9

Windshield Latch

570023800

$4.49

10

SPRING - Call your local BRP dealership

291001205

Unavailable

11

Hex. Forming Screw M6 X 20

207162060

$1.29

12

Grip Handle | Includes 12 - 13.

204070296

Unavailable

Grip Handle (Dark Green) (5679)

204070012

Unavailable

13

Snap Cap

204070297

Unavailable

Snap Cap (Drak Green) (5679)

293000082

Unavailable

14

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

15

CLEAT - Call your local BRP dealership

204070100

Unavailable

16

Socket Head Screw M6 x 55

205365560

Unavailable

17

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

18

Ski Tow Hook

204070206

Unavailable

19

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

20

Loctite 271, 10 ml

293800005

$26.99

21

Ski Tow Plate, Black

204070054

Unavailable

22

Lat Handle RH

204070298

Unavailable

RH Lateral Handle (Dark Green) (5679)

204070019

Unavailable

Lat Handle LH

204070299

Unavailable

LH Lateral Handle (Dark Green) (5679)

204070020

Unavailable

23

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

26

Hood Latch

570027100

$13.49

27

SCREW M4 X 30 - Call your local BRP dealership

208443070

Unavailable

28

Flat Washer M6, Stainless

234062600

$0.77

29

Pop Rivet 3/16"

293150013

$1.37

30

Flat Washer 5 mm, Stainless

234052600

$0.77

31

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

32

Hex. Screw M6 X 35

207163560

$1.49

33

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

34

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

35

Stainless, Flat Washer 8 mm

234081600

$0.55

36

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

37

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

38

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

39

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

40

Hex. Elastic Stop Nut M6

232561600

$1.15

41

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

42

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

43

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

44

Fixation Plate

291001059

Unavailable

45

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

46

Synthetic Grease, 400 G

293550010

Unavailable
