- Challenger 1800, 5675/5679, 1999
09- Body And Accessories 2

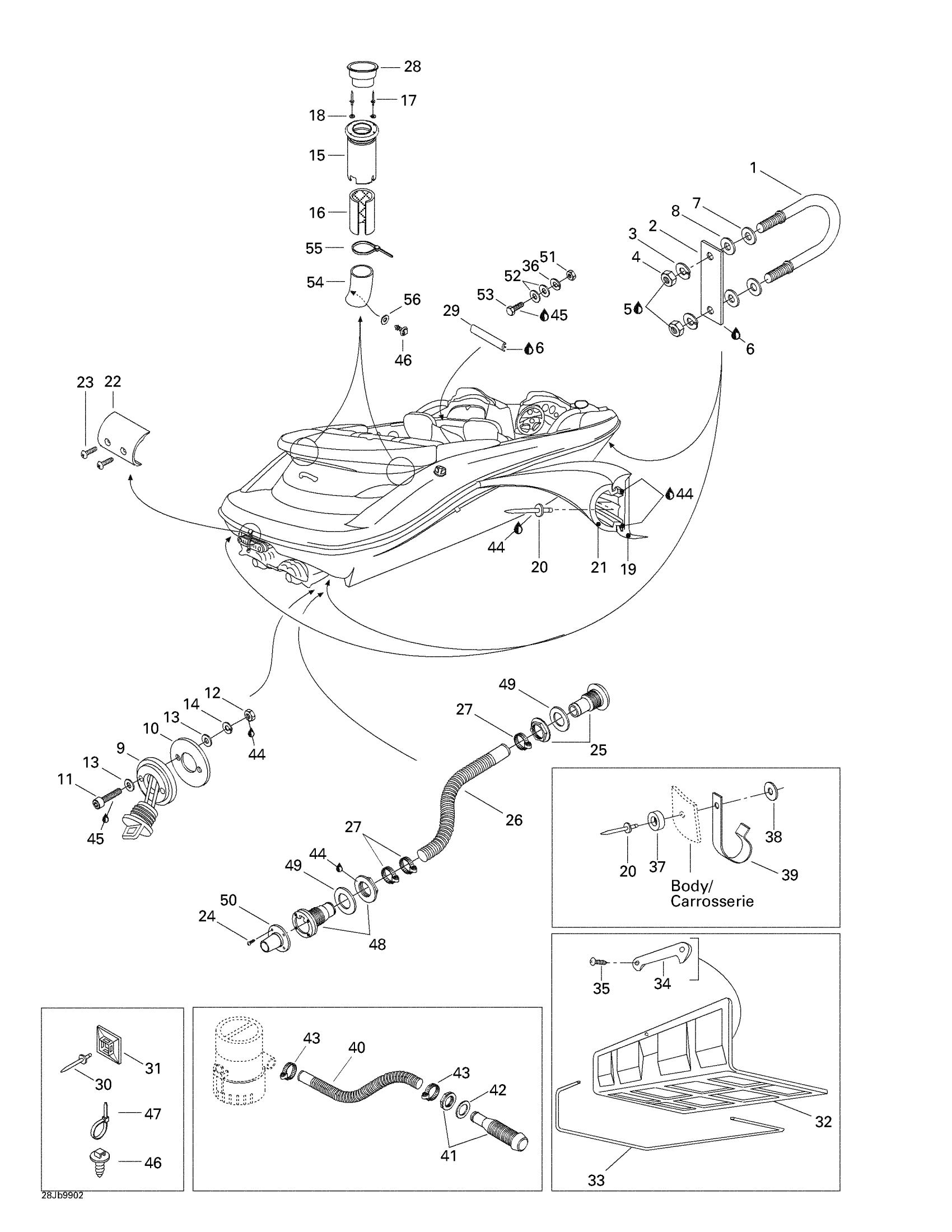

Sea-doo Challenger 1800, 5675/5679, 1999 09- Body And Accessories 2 Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
3
Lock Washer 8 mm, Stainless
234181601
$0.55
4
Hex. Nut M8
232081600
$1.47
5
Loctite 271, 10 ml
293800005
$26.99
6
Silicone Sealant 51388, 300 ml
296000309
$36.99
7
Flat Washer M8.5 x 18
293050001
$3.07
8
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
Socket Head Screw M4 X 25
205042560
$2.22
12
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership
232041600
Unavailable
13
Flat Washer 4 mm
234040600
$0.55
14
Lock Washer 4 mm
234141601
$1.15
15
Rear Vent Hose
204050171
Unavailable
16
Sound Damping
291000400
Unavailable
17
Pop Rivet 3/16"
293150014
$1.09
18
FLAT WASHER 3/16? - Call your local BRP dealership
211200039
Unavailable
19
Black, Bumper
204050136
Unavailable
Bumper (Green) (5679)
204050083
Unavailable
20
Pop Rivet 3/16"
293150013
$1.37
21
Black, Trim - Call your local BRP dealership
204050137
Unavailable
Bumper Trim (Green) (5679)
204050084
Unavailable
22
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
Bumper Cover (Green) (5679)
204050085
Unavailable
23
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
24
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
25
FITTING - Call your local BRP dealership
293710060
Unavailable
26
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
27
Norma Clamp
293650074
$17.05
28
Cup Holder
291000914
Unavailable
29
TRIM, WHITE - Call your local BRP dealership
204050048
Unavailable
30
Pop Rivet 3/16"
293150043
$2.09
31
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
32
Accessories Cover Ass'y | Includes 32 - 35.
204050150
Unavailable
33
Seal Tray 1000Mm Long
219704368
$13.99
34
Black, Handle - Call your local BRP dealership
204050159
Unavailable
35
Hex. Flange Screw K40 X 16
241141660
$1.48
36
Helical Lock Washer M5
234151601
$1.15
37
Rubber Stopper
293830043
Unavailable
38
Flat Washer
211200028
Unavailable
39
Clip Cable
414839700
Unavailable
40
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
41
Fitting
293710162
$13.49
42
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
43
Tridon Clamp
293650016
$10.99
44
Silicone Sealant 51388, 300 ml
296000309
$36.99
45
Loctite 243, 10 ml
293800060
$21.49
46
Black, Dart
293730006
$0.99
47
Tie Wrap 142 mm
293750002
$1.25
Tie Wrap 368 mm
293750008
$1.04
Tie-Rap 180 mm
414115200
$0.11
48
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
49
GASKET - Call your local BRP dealership
292800106
Unavailable
50
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
51
Hex. Nut M5
232051600
$1.15
52
Flat Washer M5, Stainless
234051600
$0.77
53
Hex. Screw M5 X 35
207153560
Unavailable
54
Was 204050122 Vent Hose 4"
219704358
$25.99
55
Tie Rap
293750019
$3.29
56
Flat Washer 10 mm, Stainless
234002600
$2.22
57
Tie-Rap 180 mm
414115200
$0.11
58
Mount Dart
293730040
$1.04
