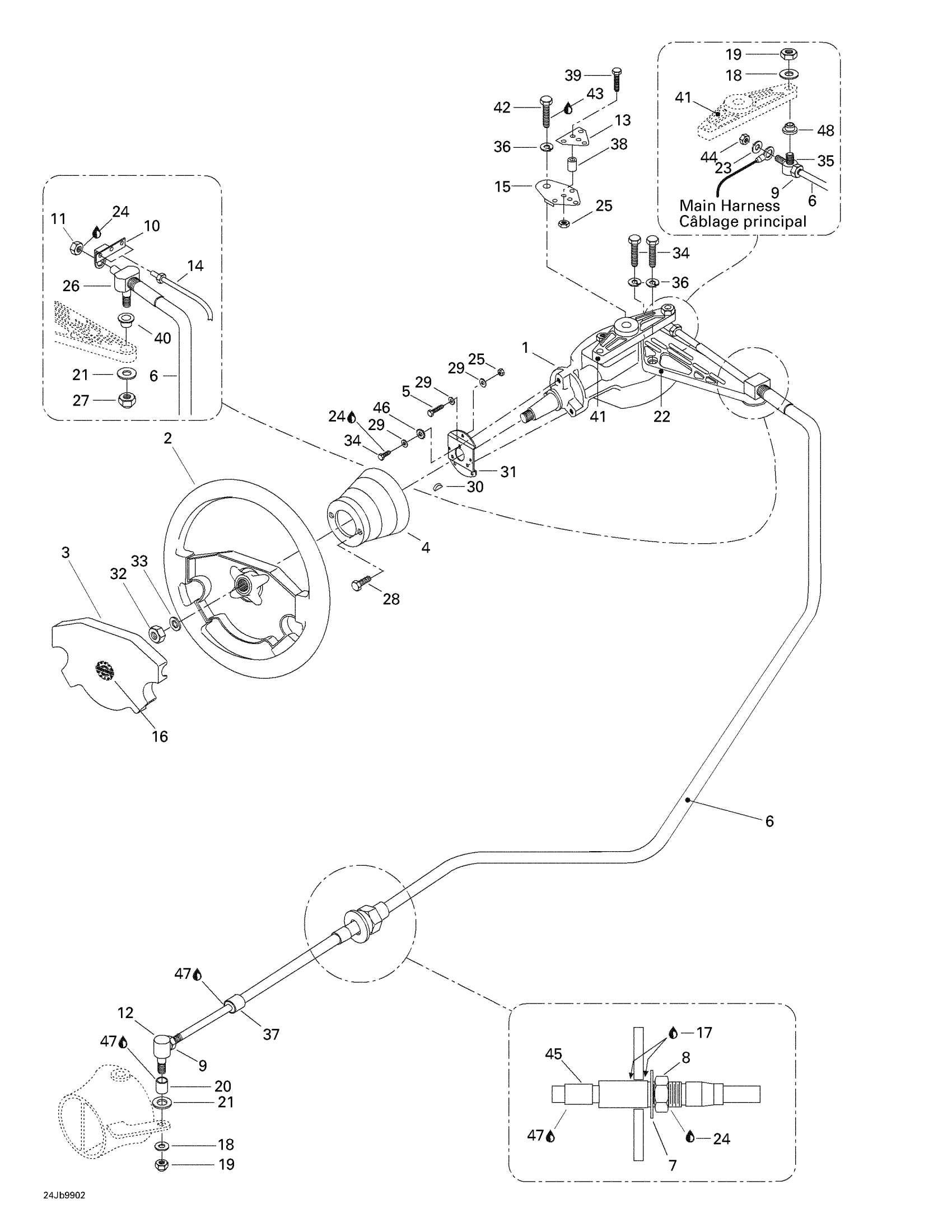

Sea-doo Challenger 1800, 5675/5679, 1999 07- Steering System Diagram

#

Description
Price

1

Helm Ass'y

204390003

Unavailable

2

STEERING, BLACK - Call your local BRP dealership

204390440

Unavailable

3

Steering Center (Aztec Red) (5675)

204390136

Unavailable

Steering Center (Dark Green) (5679)

204390086

Unavailable

4

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

5

Hex. Screw M6 X 30

207163060

$1.48

6

STEERING CABLE ASS'Y - Call your local BRP dealership | Includes 6 - 9.

204390145

Unavailable

7

Washer

277000438

Unavailable

8

Nut

277000437

Unavailable

9

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

10

Cable Support

204390035

Unavailable

11

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

12

PIVOT - Call your local BRP dealership

277000456

Unavailable

13

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

14

Throttle Cable R.H

204390090

Unavailable

THROTTLE CABLE L.H - Call your local BRP dealership

204390091

Unavailable

15

Lower Clip

204390036

Unavailable

16

BRP Logo 48mm

516008738

$16.99

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

19

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

20

Bushing

204390134

Unavailable

21

Flat Washer 10 mm, Stainless

234001600

$1.15

22

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

23

Flat Washer M8, Stainless

234080600

$1.48

24

Loctite 243, 10 ml

293800060

$21.49

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

27

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

28

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

29

Stainless Flat Washer M6

234061600

$0.33

30

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

31

Support

277000383

Unavailable

32

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

33

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

34

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

35

PIVOT - Call your local BRP dealership

277000456

Unavailable

36

Lock Washer 1/4”

211200025

$1.29

37

Terminal Wiper

277000441

$11.99

38

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

39

Hex. Forming Screw M6 X 20

207162060

$1.29

40

Flanged Bushing

293350014

$12.99

41

ARM - Call your local BRP dealership

204390040

Unavailable

42

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

43

Loctite 271, 10 ml

293800005

$26.99

44

Elastic Stop Nut

204390147

Unavailable

45

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

46

External Serrated Lock Washer 6 mm

234461608

$1.15

47

Synthetic Grease, 400 G

293550010

Unavailable

48

BUSHING - Call your local BRP dealership

293350012

Unavailable
