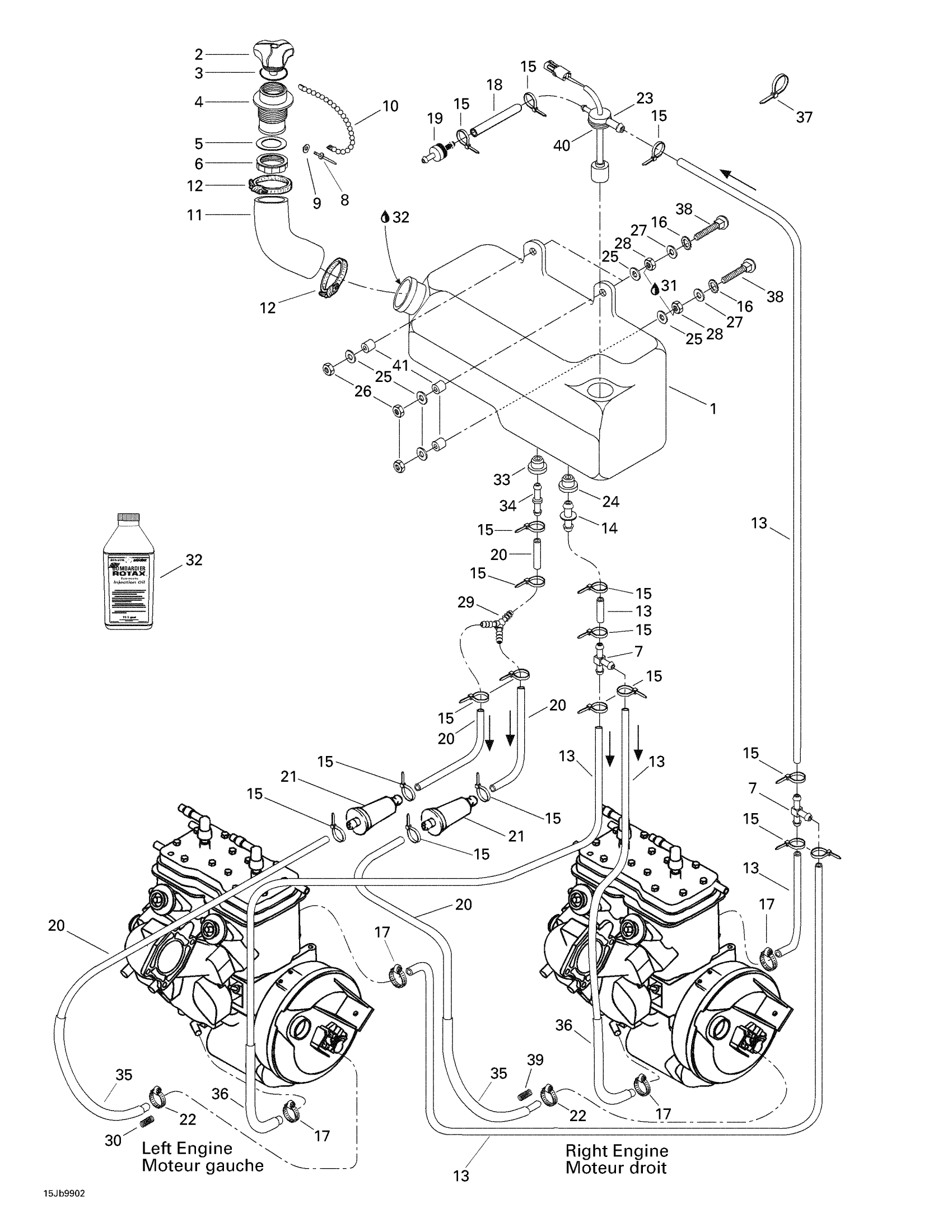

Sea-doo Challenger 1800, 5675/5679, 1999 Oil Injection System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

204550029

Unavailable

2

Oil Cap

275000186

Unavailable

3

O-RING - Call your local BRP dealership

293250025

Unavailable

4

Filler Neck

275000212

Unavailable

5

Gasket

293250016

Unavailable

6

Nut-Neck Oil Filler

211100013

Unavailable

7

T-FITTING - Call your local BRP dealership

293710053

Unavailable

8

Pop Rivet 1/8"

293150056

Unavailable

9

Flat Washer M3, Stainless

234032600

$0.55

10

Oil Cap Chain

275500015

Unavailable

11

Filler Neck Hose

275000070

Unavailable

12

Tridon Clamp

293650035

$7.29

13

Was 275500008 Hose 12 mm

219704356

$20.49

14

STRAIGHT FITTING - Call your local BRP dealership

293710045

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

17

Tridon Gear Clamp

293650170

$1.99

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

19

Check Valve

275500398

$10.99

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$3.09

23

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

24

Grommet | Europe

707800347

$10.49

25

Flat Washer M6, Stainless

234062600

$0.77

26

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

27

Stainless, Flat Washer 8 mm

234081600

$0.55

28

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

29

Y-Fitting

204550001

Unavailable

30

Spring

270000377

Unavailable

31

Loctite 271, 10 ml

293800005

$26.99

32

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

33

Grommet

709200285

$9.69

34

STRAIGHT FITTING - Call your local BRP dealership

293710046

Unavailable

35

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

36

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

37

Tie Wrap 142 mm

293750002

$1.25

38

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

39

SPACER SLEEVE - Call your local BRP dealership

204550033

Unavailable

40

Grommet

204470104

Unavailable
