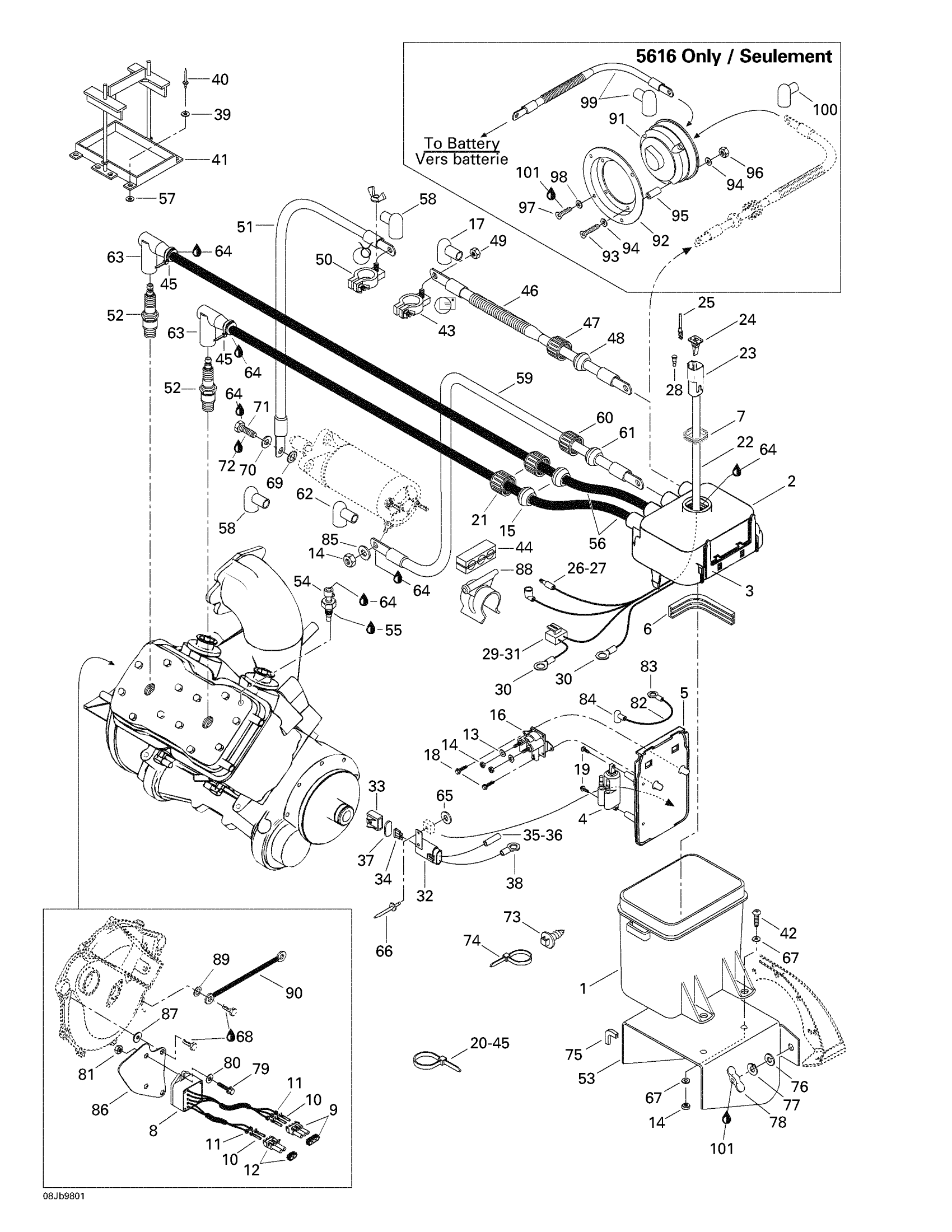

Sea-doo Challenger 1800, 5611/5616, 1998 Electrical System Diagram

#

Description
Price

1

High Voltage Box Base

278001089

Unavailable

2

Cover

278001265

Unavailable

3

Ground Plate

278000732

Unavailable

4

LH Ignition Coil

204470236

Unavailable

5

Mounting Plate

278001193

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 8 - 12.

278001240

Unavailable

9

Male Housing, 3 Circuits

278000273

$9.59

10

Female Terminal

409007300

$0.45

11

Wire Seal

278000218

$4.39

12

Male Connector, 2 Circuits

278000220

$15.49

13

Stainless Flat Washer M6

234061600

$0.33

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$42.49

17

RED BOOT - Call your local BRP dealership

204470269

Unavailable

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

Self Tapping Screw M6.3 x 25

215462550

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

Electric Wire Cap

278000100

Unavailable

22

Electric Box Harness | Includes 22 - 31.

204470166

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Male Terminal

278000631

$4.39

26

Male Terminal

278000230

$4.39

27

Insulated Sheath

278001008

$3.28

28

Sealing Cap

293000052

$3.19

29

Female Terminal

278001114

$3.19

30

Open Barrel

278000992

$2.21

31

Male Connector, 2 Circuits

278001113

$16.86

32

Harness Fuse 15 Amp | Includes 32 - 38.

204470161

Unavailable

33

Fuse Holder Cap

278001326

$7.69

34

Fuse, 15 Amperes

278000343

$3.28

35

Female Terminal | DS 650 X

278001009

$3.19

36

Insulated Sheath

278001007

$3.58

37

Cushion

278000805

$3.28

38

Ring Terminal

278000300

Unavailable

39

Flat Washer M5, Stainless

234051600

$0.77

40

Pop Rivet 3/16"

293150008

$0.50

41

Battery Support

204470254

Unavailable

42

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

43

Double Faced Tape (Meter)

204470268

Unavailable

44

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

45

Tie Wrap 142 mm

293750002

$1.25

46

RH Battery Cable (Red) | Includes 46 - 48.

204470167

Unavailable

LH Battery Cable (Red)

204470168

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

50

Battery Pole (Negative)

278000680

Unavailable

51

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

LH Ground Cable

204470051

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

53

Box Support

204470224

Unavailable

54

Temperature Sensor

278000965

$73.99

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

56

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

57

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

58

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

59

Starter Cable | Includes 59 - 62.

204470164

Unavailable

60

Electric Wire Cap

278000100

Unavailable

61

GROMMET - Call your local BRP dealership

278000098

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

Spark Plug Cap

204470091

Unavailable

64

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

65

Flat Washer, Emhart

213200016

$0.72

66

Pop Rivet 3/16"

293150005

$0.52

67

Flat Washer M6, Stainless

234062600

$0.77

68

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

69

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

70

Stainless, Flat Washer 8 mm

234081600

$0.55

71

Hex. Screw M8 x 16

215681660

Unavailable

72

Loctite 271, 10 ml

293800005

$26.99

73

Mount Dart

293730040

$1.04

74

Tie Wrap 142 mm

293750002

$1.25

75

Was 271000110 Protection Trim

219704353

$15.99

76

Flat Washer 8 mm, Stainless

234082600

$2.43

77

Lock Washer 8 mm, Stainless

234181601

$0.55

78

Wing Nut M8

232681100

$2.19

79

Hex. Forming Screw M6 X 20

207162060

$1.29

80

Stainless Flat Washer M6

234061600

$0.33

81

Hex. Elastic Stop Nut M6

232561600

$1.15

82

Ground Harness | Includes 82 - 84.

278000664

Unavailable

83

Ring Terminal

278000300

Unavailable

84

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

85

Stainless Flat Washer M6

234061600

$0.33

86

Regulator Support

204250037

Unavailable

87

Flat Washer, Stainless/Neoprene

211200055

$0.73

88

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

89

External Serrated Lock Washer 6 mm

234461608

$1.15

90

Ground Cable

204470052

Unavailable

91

Battery Switch (5616)

204470226

Unavailable

92

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

93

Phillips Screw M5 X 35

208653560

$2.22

94

Flat Washer M5, Stainless

234051600

$0.77

95

Spacer (5616)

204470253

Unavailable

96

Hex. Elastic Nut M5 | X

232551600

$1.15

97

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

98

Flat Washer 4 mm, Stainless

234041600

$1.15

99

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

100

RED BOOT - Call your local BRP dealership

204470269

Unavailable

101

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99
