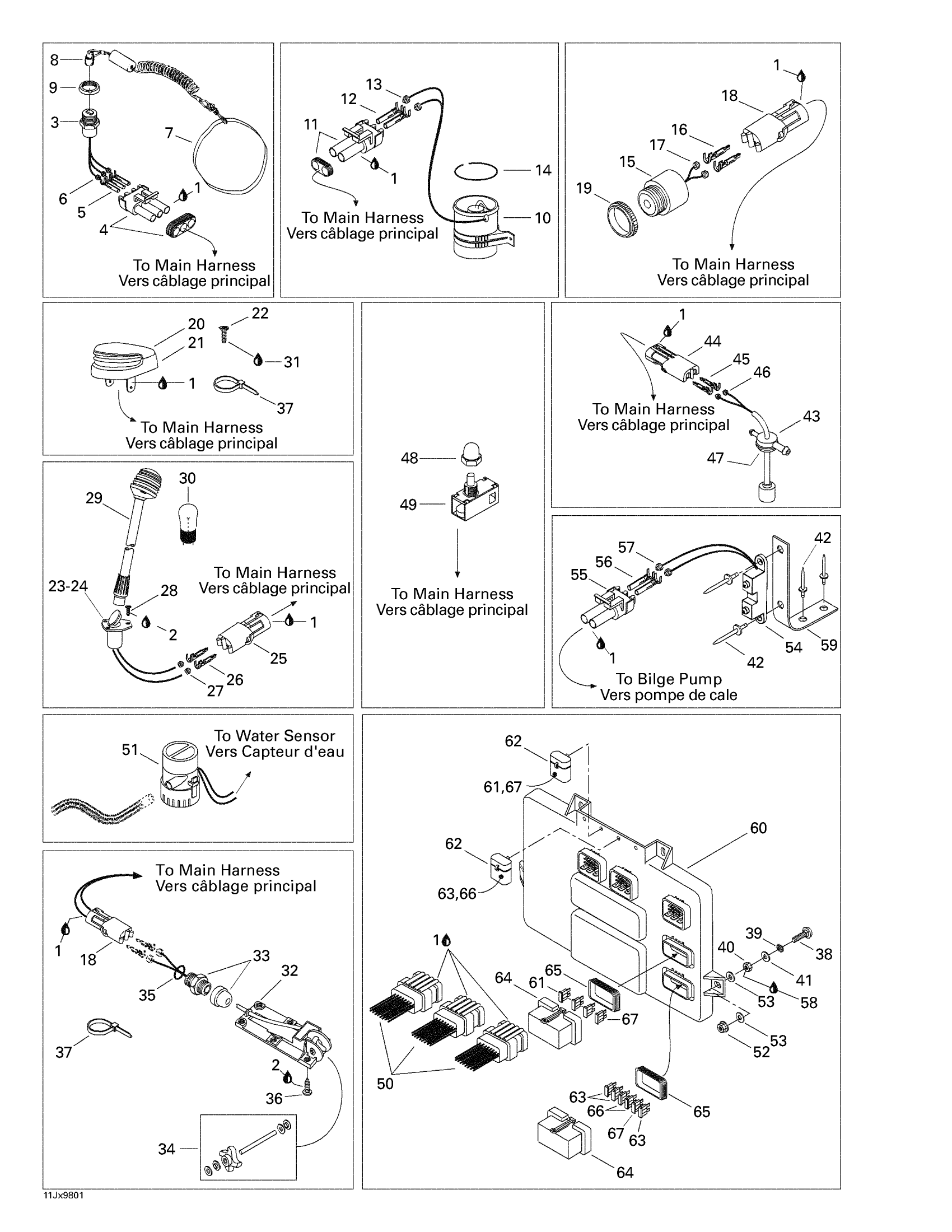

Sea-doo Challenger 1800, 5611/5616, 1998 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

2

Loctite 243, 10 ml

293800060

$20.77

3

Safety Switch This part replaces 278002325.

278002773

$89.67

4

Male Housing, 3 Circuits

278000273

$7.59

5

Female Terminal

278000223

$2.55

6

Wire Seal

278000218

$3.48

7

Safety Strap

204470025

Unavailable

8

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

9

Safety Nut (DESS Switch)

278002963

$2.72

10

Fan Ass'y | Includes 44 to 47

204470108

$114.37

11

Male Connector, 2 Circuits

278000220

$11.02

12

Female Terminal

278000223

$2.55

13

Wire Seal

278000218

$3.48

14

BROACH - Call your local BRP dealership

204000133

Unavailable

15

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

16

Male Terminal | XT Models

278000222

$2.55

17

Wire Seal

278000218

$3.48

18

Female Housing, 2 Circuits

278000217

$7.59

19

Buzzer Nut

278000707

Unavailable

20

Front Lamp

204470071

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

Phillips Screw M4 X 16

208641660

$0.74

23

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

24

Rear Lamp Base Ass'y | Includes 12 to 16

204471177

Unavailable

25

Female Housing, 2 Circuits

278000217

$7.59

26

Male Terminal | XT Models

278000222

$2.55

27

Wire Seal

278000218

$3.48

28

Screw M4 x 30

211000136

Unavailable

29

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

30

Bulb

204470053

Unavailable

31

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

36

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

37

Tie Wrap 94 mm | 4X4

293750001

$0.83

38

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

39

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

40

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

41

Stainless, Flat Washer 8 mm

234081600

$0.46

42

Not Available As Spare Part - Friction Washer

Unavailable

43

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

44

Female Housing, 2 Circuits

278000217

$7.59

45

Male Terminal | XT Models

278000222

$2.55

46

Wire Seal

278000218

$3.48

47

Grommet

204470104

Unavailable

48

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

49

RH IGNITION SWITCH - Call your local BRP dealership

278000622

Unavailable

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

50

Harness Ass'y

204470170

Unavailable

51

Bilge Pump This part replaces 204470220.

278002020

$79.92

52

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

53

Flat Washer M6, Stainless

234062600

$0.64

54

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

55

Male Connector, 2 Circuits

278000220

$11.02

56

Female Terminal

278000223

$2.55

57

Wire Seal

278000218

$3.48

58

Loctite 271, 10 ml

293800005

$20.77

59

Sensor Support

204470058

Unavailable

60

Electronic Module Ass'y | Includes 57 - 64.

204470155

Unavailable

61

Fuse, 5 Amperes | CE

278000344

$3.12

62

Fuse Holder

278000379

Unavailable

63

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

64

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

65

Cover Seal

278001070

Unavailable

66

Fuse, 10 Amperes | North America

278001197

$1.79

67

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable
