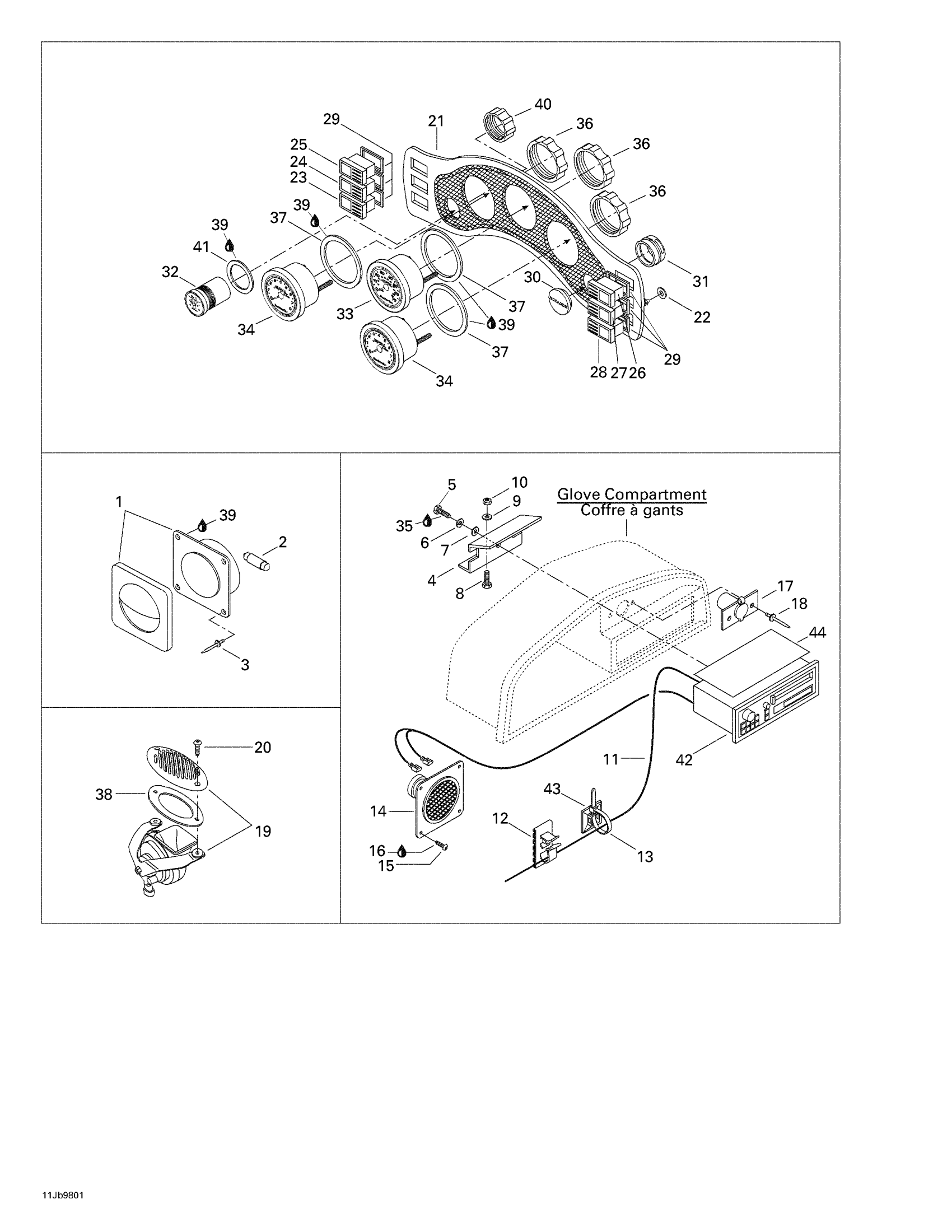

Sea-doo Challenger 1800, 5611/5616, 1998 Electrical Accessories 1 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

4

Radio Support

204470198

Unavailable

5

Screw M5 x 10

215851068

Unavailable

6

Helical Lock Washer M5

234151601

$1.15

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Antenna

204470028

Unavailable

12

Clip Cable

414839700

Unavailable

13

Tie Wrap 142 mm

293750002

$1.25

14

Speaker

204470029

Unavailable

15

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

16

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

17

12V. Jack

204470030

Unavailable

18

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

19

HORN - Call your local BRP dealership

204470801

Unavailable

20

SCREW-RD.HD.PH. - Call your local BRP dealership

211000100

Unavailable

21

Facia Ass'y

204470178

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.77

23

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

24

Bilge Pump Switch

204470012

Unavailable

25

Light Switch

204470013

Unavailable

26

Horn Switch

204470014

Unavailable

27

Coutesy Light Switch

204470015

Unavailable

28

Fuel Tank Reserve Switch

204470086

Unavailable

29

Gasket

204470132

Unavailable

30

Cap Jauge (Black)

269700035

Unavailable

31

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

32

Fuel/Oil Gauge

204470144

Unavailable

33

Speedometer

204470158

Unavailable

34

Tachometer

204470172

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Gauge Nut

204470171

Unavailable

37

Gasket

204470169

Unavailable

38

Horn Gasket

293250089

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

40

Gauge Nut

204470146

Unavailable

41

Gasket

204470145

Unavailable

42

Radio Tape

204470331

Unavailable

43

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

44

Protector

204470283

Unavailable
