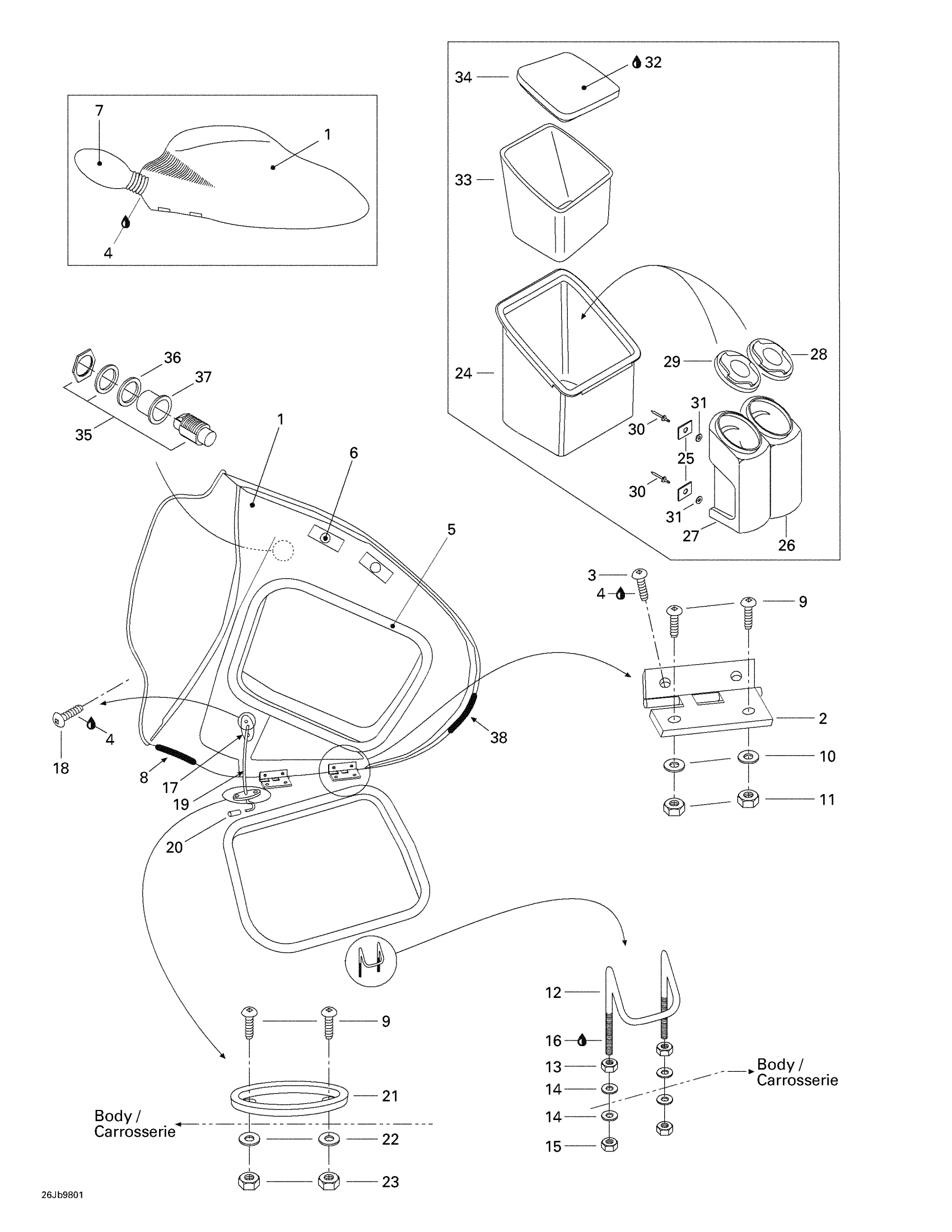

Sea-doo Challenger 1800, 5611/5616, 1998 Front Storage Compartment Diagram

#

Description
Price

1

RH Windshield

204620002

Unavailable

LH Windshield

204620021

Unavailable

2

Console Hinge

204620005

Unavailable

3

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

4

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

5

Seal Tray 1000Mm Long

219704368

$13.99

6

Rubber Stopper

204620048

Unavailable

7

Black, RH Mirror

204620026

Unavailable

8

Neoprene Seal

293200045

Unavailable

9

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216142060

Unavailable

10

Flat Washer 4 mm

234040600

$0.55

11

Elastic Stop Nut M4

232541600

$1.15

12

Hook

204620027

Unavailable

13

Hex. Nut M6

232061600

$1.15

14

Flat Washer M6, Stainless

234062600

$0.77

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Loctite 243, 10 ml

293800060

$21.49

17

ROD HOLDER - Call your local BRP dealership

204620028

Unavailable

18

Screw M4 x 16

216141660

Unavailable

19

Rod Support

204620029

Unavailable

20

CAP - Call your local BRP dealership

204620044

Unavailable

21

ROD STOP - Call your local BRP dealership

204620030

Unavailable

22

Flat Washer 4 mm, Stainless

234042600

$1.15

23

Elastic Stop Nut M4

232541600

$1.15

24

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

25

GASKET - Call your local BRP dealership

293250037

Unavailable

26

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

27

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

28

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

29

Storage Housing Cap

269500237

Unavailable

30

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

31

Flat Washer M3, Stainless

234032600

$0.55

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

34

Icebox Foam Cover

204630013

Unavailable

35

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

36

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

37

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable

38

Seal Tray 1000Mm Long

219704368

$13.99
