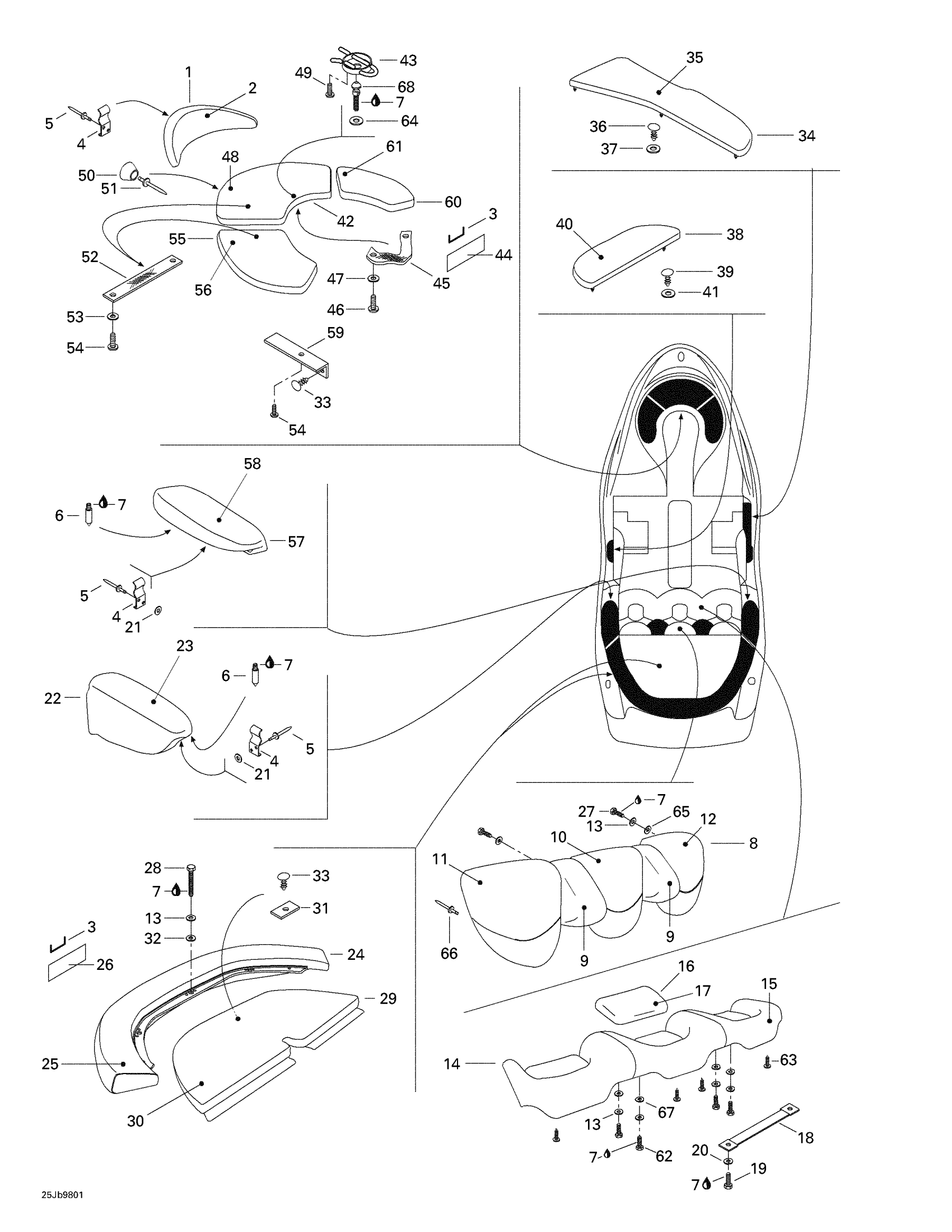

Sea-doo Challenger 1800, 5611/5616, 1998 Front / Rear Seat Diagram

#

Description
Price

1

Front Backrest Ass'y | CHALLENGER 1800 5679.

204610352

Unavailable

2

Front Backrest Cover (Dark Green) | CHALLENGER 1800 5679.

204610029

Unavailable

3

Staple

293730005

Unavailable

4

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

5

Pop Rivet 3/16"

293150043

$2.09

6

Threaded Rod M5

269000380

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Rear Backrest Ass'y | CHALLENGER 1800 5679.

204610264

Unavailable

9

Rear Bump Cover (Dark Green) | CHALLENGER 1800 5679.

204610035

Unavailable

10

Rear Backrest Cover (White) (Center) | CHALLENGER 1800 5679.

204610368

Unavailable

11

Rear Backrest Cover (White) R.H | CHALLENGER 1800 5679.

204610369

Unavailable

12

Rear Backrest Cover (White) L.H | CHALLENGER 1800 5679.

204610382

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Rear Seat Ass'y | CHALLENGER 1800 5679.

204610365

Unavailable

15

Rear Seat Cover (Dark Green) | CHALLENGER 1800 5679.

204610039

Unavailable

16

Rear Seat Pillow Ass'y | CHALLENGER 1800 5679.

204610383

Unavailable

17

Rear Seat Pillow Cover | CHALLENGER 1800 5679.

204610384

Unavailable

18

Retaining Strap

204610284

Unavailable

19

Hex. Screw M6 X 16

207161660

$1.59

20

Flat Washer M6, Stainless

234062600

$0.77

21

Stainless Flat Washer M6

234061600

$0.33

22

LH Rear Seat Arm-Rest Ass'y | CHALLENGER 1800 5679.

204610009

Unavailable

23

LH Rear Seat Arm-Rest Cover (Dark Green) | CHALLENGER 1800 5679.

204610050

Unavailable

24

Rear Spoiler Ass'y | CHALLENGER 1800 5679.

204610362

Unavailable

25

Rear Spoiler Cover (Dark Green) | CHALLENGER 1800 5679.

204610052

Unavailable

26

Staple Cover, Meter

204610184

Unavailable

27

Hex. Screw M6 X 40

207164060

$3.38

28

Hex. Screw M6 X 25

207162560

$1.47

29

Platform Ass'y | CHALLENGER 1800 5679.

204610360

Unavailable

30

Platform Cover | CHALLENGER 1800 5679.

204610361

Unavailable

31

Strap

204610194

Unavailable

32

Flat Washer 10 mm, Stainless

234002600

$2.22

33

Black, Dart

293730006

$0.99

34

RH Elbow Padding Ass'y | CHALLENGER 1800 5679.

204610356

Unavailable

35

RH Elbow Padding Cover (Dark Green) | CHALLENGER 1800 5679.

204610120

Unavailable

36

Black, Dart

293730006

$0.99

37

Flat Washer M6, Stainless

234062600

$0.77

38

LH Elbow Padding Ass'y | CHALLENGER 1800 5679.

204610357

Unavailable

39

Black, Dart

293730006

$0.99

40

LH Elbow Padding Cover (Dark Green) | CHALLENGER 1800 5679.

204610122

Unavailable

41

Flat Washer M6, Stainless

234062600

$0.77

42

Center Front Seat Ass'y | CHALLENGER 1800 5679.

204610261

Unavailable

43

Front Seat Latch

204610178

Unavailable

44

Staple Cover, Meter

204610184

Unavailable

45

Passenger Strap

293000060

Unavailable

46

Screw K40 X 10

241140060

$1.48

47

Flat Washer 4 mm, Stainless

234042600

$1.15

48

Center Front Seat Cover (White) | CHALLENGER 1800 5679.

204610350

Unavailable

49

Socket Head Screw M4 X 16

205441660

$1.47

50

Rubber Stopper

293830043

Unavailable

51

Pop Rivet 3/16"

293150013

$1.37

52

Passenger Strap

293000060

Unavailable

53

Flat Washer 4 mm, Stainless

234042600

$1.15

54

Screw K40 X 10

241140060

$1.48

55

LH Front Seat Ass'y | CHALLENGER 1800 5679.

204610262

Unavailable

56

LH Front Seat Cover (White) | CHALLENGER 1800 5679.

204610353

Unavailable

57

RH Rear Seat Arm-Rest Ass'y | CHALLENGER 1800 5679.

204610008

Unavailable

58

RH Rear Seat Arm-Rest Cover (Dark Gree | CHALLENGER 1800 5679.

204610048

Unavailable

59

SEAT BRACKET - Call your local BRP dealership

204610100

Unavailable

60

RH Front Seat Ass'y | CHALLENGER 1800 5679.

204610263

Unavailable

61

RH Front Seat Cover (White) | CHALLENGER 1800 5679.

204610355

Unavailable

62

Hex. Screw M6 X 45

207164560

$1.89

63

Black Dart

293730014

$0.99

64

Flat Washer M6, Stainless

234062600

$0.77

65

Flat Washer 8 mm, Stainless

234082600

$2.43

66

Pop Rivet 3/16"

293150008

$0.50

67

Flat Washer 8 mm, Stainless

234082600

$2.43

68

Seat Stud

204610207

Unavailable
