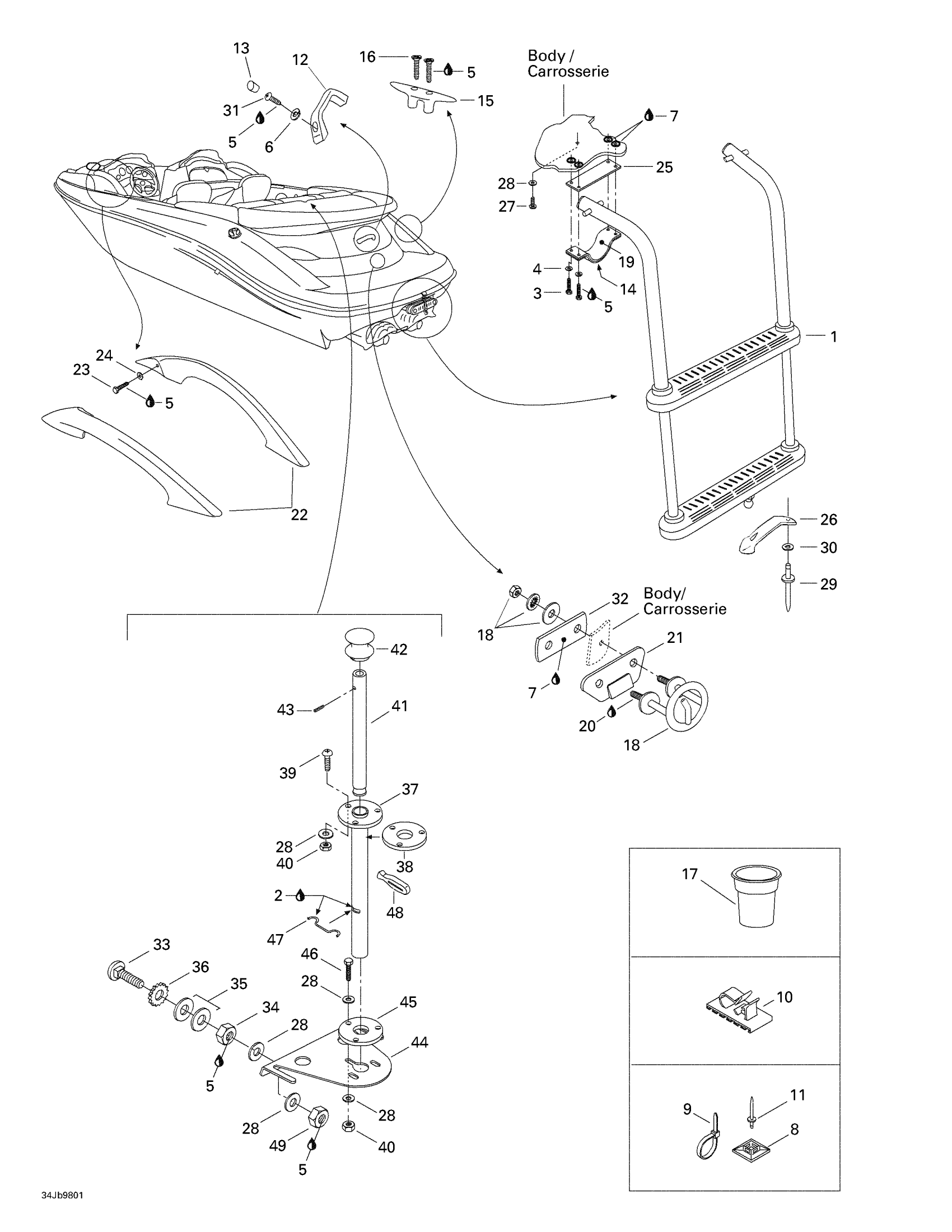

Sea-doo Challenger 1800, 5611/5616, 1998 Body And Accessories 3 Diagram

#

Description
Price

1

LADDER - Call your local BRP dealership

204060186

Unavailable

2

Synthetic Grease, 400 G

293550010

Unavailable

3

Hex. Screw M6 X 35

207163560

$1.49

4

Lock Washer Helical M6

234161601

$1.15

5

Loctite 243, 10 ml

293800060

$21.49

6

External Serrated Lock Washer 6 mm

234461608

$1.15

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

9

Tie-Rap 180 mm

414115200

$0.11

10

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

11

Pop Rivet 3/16"

293150043

$2.09

12

Grip Handle (Dark Green) (5679)

204070012

Unavailable

13

Snap Cap (Drak Green) (5679)

293000082

Unavailable

14

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

15

CLEAT - Call your local BRP dealership

204070100

Unavailable

16

Allen Screw M6 x 55

215965560

Unavailable

17

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

18

Ski Tow Hook

204070206

Unavailable

19

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

20

Loctite 271, 10 ml

293800005

$26.99

21

Ski Tow Plate, Black

204070054

Unavailable

22

RH Lateral Handle (Dark Green) (5679)

204070019

Unavailable

LH Lateral Handle (Dark Green) (5679)

204070020

Unavailable

23

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

26

Hood Latch

570027100

$13.49

27

Screw M4 x 30

211000136

Unavailable

28

Flat Washer M6, Stainless

234062600

$0.77

29

Pop Rivet 3/16"

293150013

$1.37

30

Flat Washer 5 mm, Stainless

234052600

$0.77

31

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

34

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

35

Stainless, Flat Washer 8 mm

234081600

$0.55

36

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

37

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

38

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

39

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

40

Hex. Elastic Stop Nut M6

232561600

$1.15

41

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

42

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

43

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

44

Fixation Plate

291001059

Unavailable

45

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

46

Hex. Forming Screw M6 X 20

207162060

$1.29

47

SPRING - Call your local BRP dealership

291001205

Unavailable

48

Windshield Latch

570023800

$4.49

49

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable
