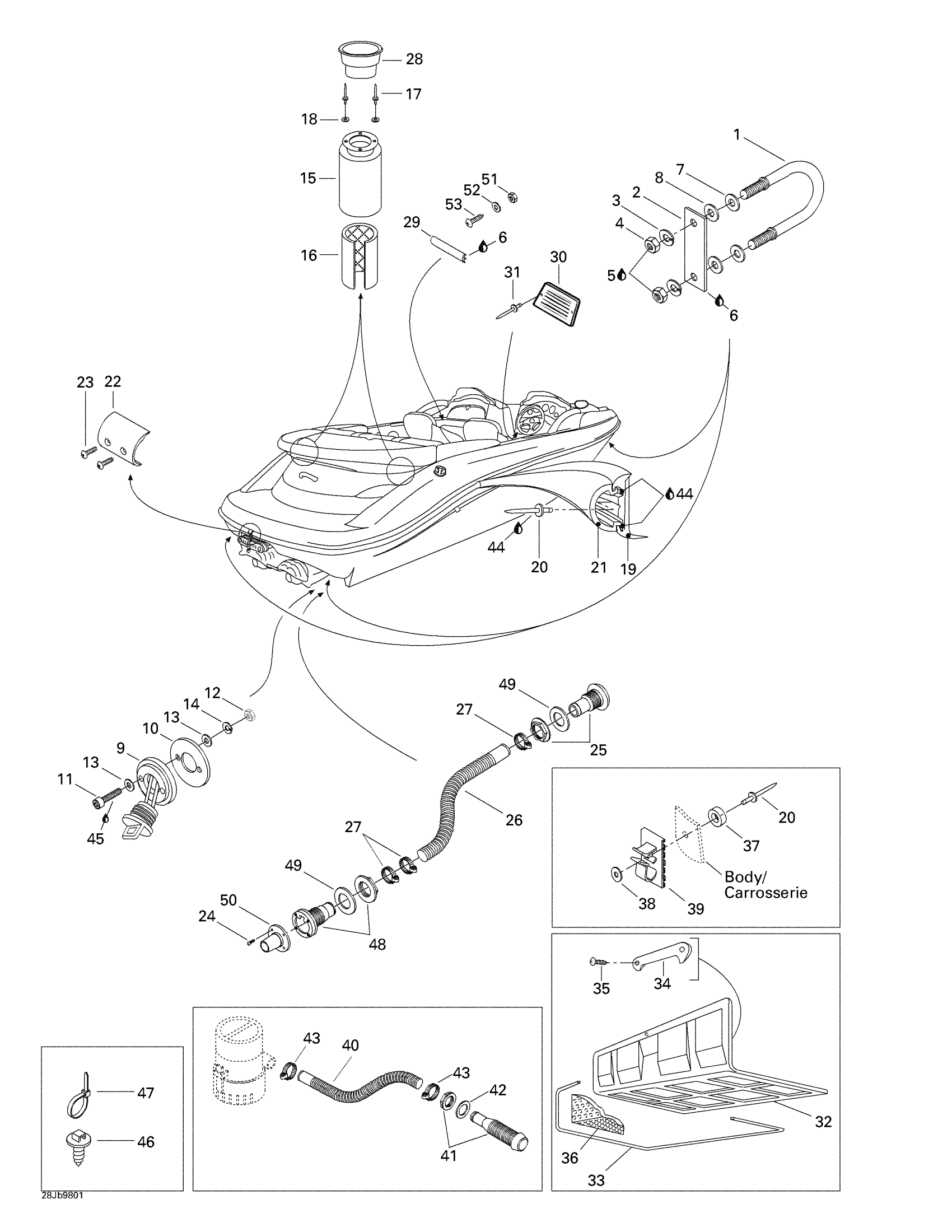

Sea-doo Challenger 1800, 5611/5616, 1998 Body And Accessories 2 Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

3

Lock Washer 8 mm, Stainless

234181601

$0.55

4

Hex. Nut M8

232081600

$1.47

5

Loctite 271, 10 ml

293800005

$26.99

6

Silicone Sealant 51388, 300 ml

296000309

$36.99

7

Flat Washer M8.5 x 18

293050001

$3.07

8

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

9

Drain Plug

292000187

$14.49

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

Socket Head Screw M4 X 25

205042560

$2.22

12

Nut M4

211100025

Unavailable

13

Flat Washer 4 mm

234040600

$0.55

14

Lock Washer 4 mm

234141601

$1.15

15

Rear Hose Vent

204050004

Unavailable

16

Sound Damping

291000400

Unavailable

17

Pop Rivet 3/16"

293150014

$1.09

18

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

19

Bumper (Green) (5679)

204050083

Unavailable

20

Pop Rivet 3/16"

293150013

$1.37

21

Bumper Trim (Green) (5679)

204050084

Unavailable

22

Bumper Cover (Green) (5679)

204050085

Unavailable

23

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

24

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

25

FITTING - Call your local BRP dealership

293710060

Unavailable

26

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

27

Tridon Gear Clamp

293650045

$5.69

28

Cup Holder

291000914

Unavailable

29

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

30

Rear Intake Grill (Black)

291000300

Unavailable

31

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

32

Accessories Cover Ass'y | Includes 32 - 36.

295500425

Unavailable

33

Seal Tray 1000Mm Long

219704368

$13.99

34

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

35

Hex. Flange Screw K40 X 16

241141660

$1.48

36

Luggage Foam

204320005

Unavailable

37

Rubber Stopper

293830043

Unavailable

38

Flat Washer

211200028

Unavailable

39

Clip Cable

414839700

Unavailable

40

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

41

Fitting

293710162

$13.49

42

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

43

Tridon Clamp

293650016

$10.99

44

Silicone Sealant 51388, 300 ml

296000309

$36.99

45

Loctite 243, 10 ml

293800060

$21.49

46

Mount Dart

293730040

$1.04

47

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

48

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

49

GASKET - Call your local BRP dealership

292800106

Unavailable

50

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

51

Hex. Elastic Nut M5 | X

232551600

$1.15

52

Flat Washer 5 mm, Stainless

234052600

$0.77

53

Screw M5 x 25

216152560

Unavailable
