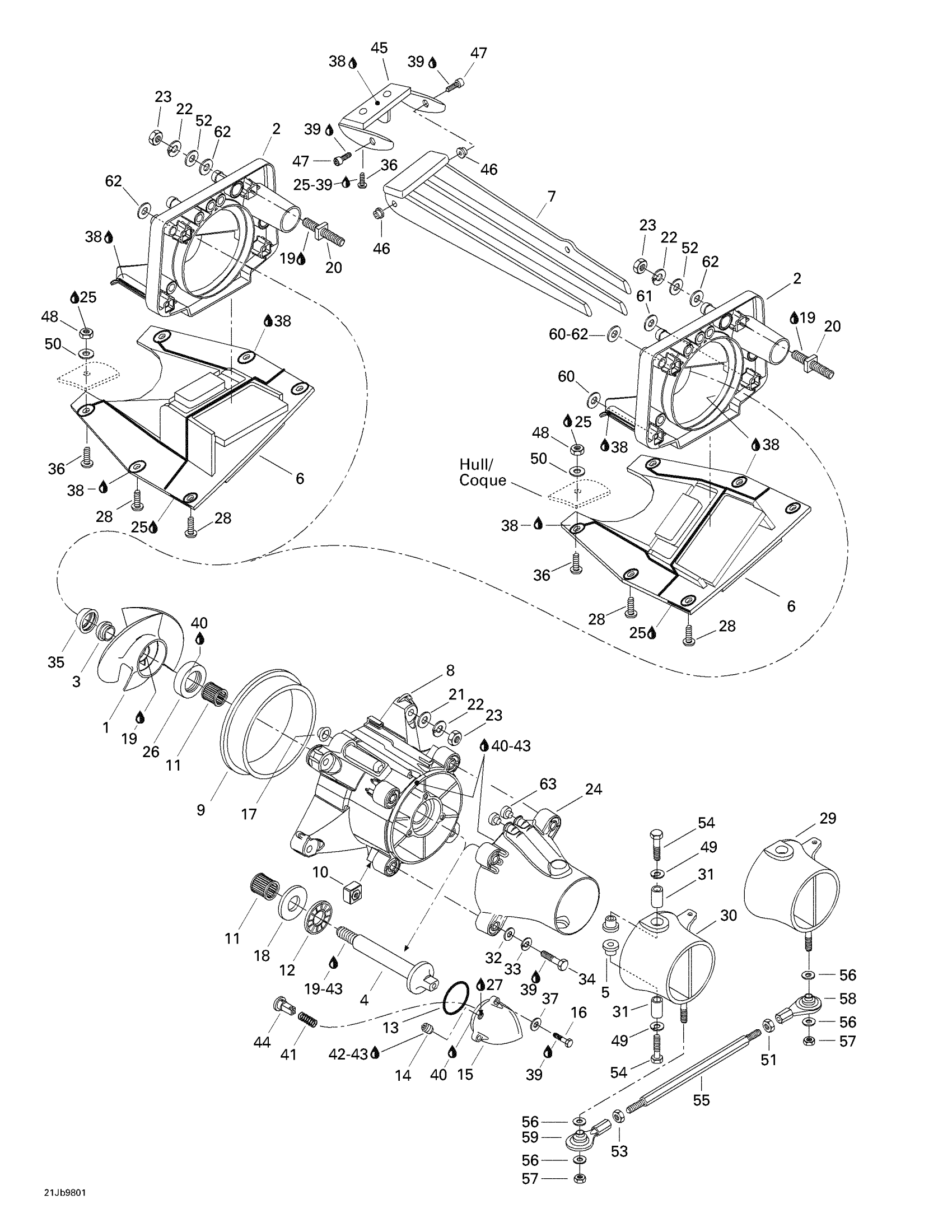

Sea-doo Challenger 1800, 5611/5616, 1998 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller

204160050

Unavailable

2

Pump Support

204120127

Unavailable

3

Impeller Boot

271000516

$6.86

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Venturi Bushing

293900001

$6.14

6

RH Shoe

204120094

Unavailable

LH Shoe

204120095

Unavailable

7

RH MOBIL GRATE - Call your local BRP dealership

204120084

Unavailable

LH Mobil Grate

204120087

Unavailable

8

Impeller Housing Ass'y | Includes 8 - 10.

204160051

Unavailable

9

Wear Ring

271000290

$47.42

10

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

11

Needle Bearing

293350017

$21.42

12

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

13

O-Ring

293300011

$6.46

14

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

15

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

16

Hex. Screw M5 X 20

207152060

$1.22

17

Watertight Seal

293250084

$5.81

18

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

19

Loctite 271, 10 ml

293800005

$20.77

20

Square Stud

250300022

$15.57

21

Flat Washer 10 mm, Stainless

234001600

$0.91

22

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

23

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

24

Venturi

271000624

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$35.72

26

Oil Seal

267000094

$17.52

27

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

28

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

29

Steering Nozzle (Black) R.H

204120110

Unavailable

30

Steering Nozzle (Black) L.H

204120111

Unavailable

31

Sleeve

271001816

$11.58

32

Stainless, Flat Washer 8 mm

234081600

$0.46

33

Lock Washer 8 mm, Stainless

234181601

$0.46

34

Hex. Screw M8 x 75

215687560

Unavailable

35

Impeller Ring

271000517

$6.86

36

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

37

Flat Washer M5, Stainless

234051600

$0.64

38

Instant Gasket

219701421

$50.02

39

Loctite 243, 10 ml

293800060

$20.77

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

41

SPRING - Call your local BRP dealership

271000704

Unavailable

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Was 293800041 Loctite Primer 7649

219704458

$41.99

44

Pusher

271000898

Unavailable

45

Grate Support, Starboard

204120083

Unavailable

GRATE SUPPORT, PORT SIDE - Call your local BRP dealership

204120086

Unavailable

46

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

47

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

48

Hex. Elastic Stop Nut M6

232561600

$0.92

49

Lock Spring Washer 8 mm, Stainless

234180602

$1.09

50

Flat Washer M6, Stainless

234062600

$0.64

51

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

52

Flat Washer 10 mm, Stainless

234002600

$1.85

53

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

54

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

55

Link Rod

204120076

Unavailable

56

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

57

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

58

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

59

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

60

Shim 1.3 mm

204120128

Unavailable

61

Shim 0.3 mm

204120129

Unavailable

62

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

63

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable
