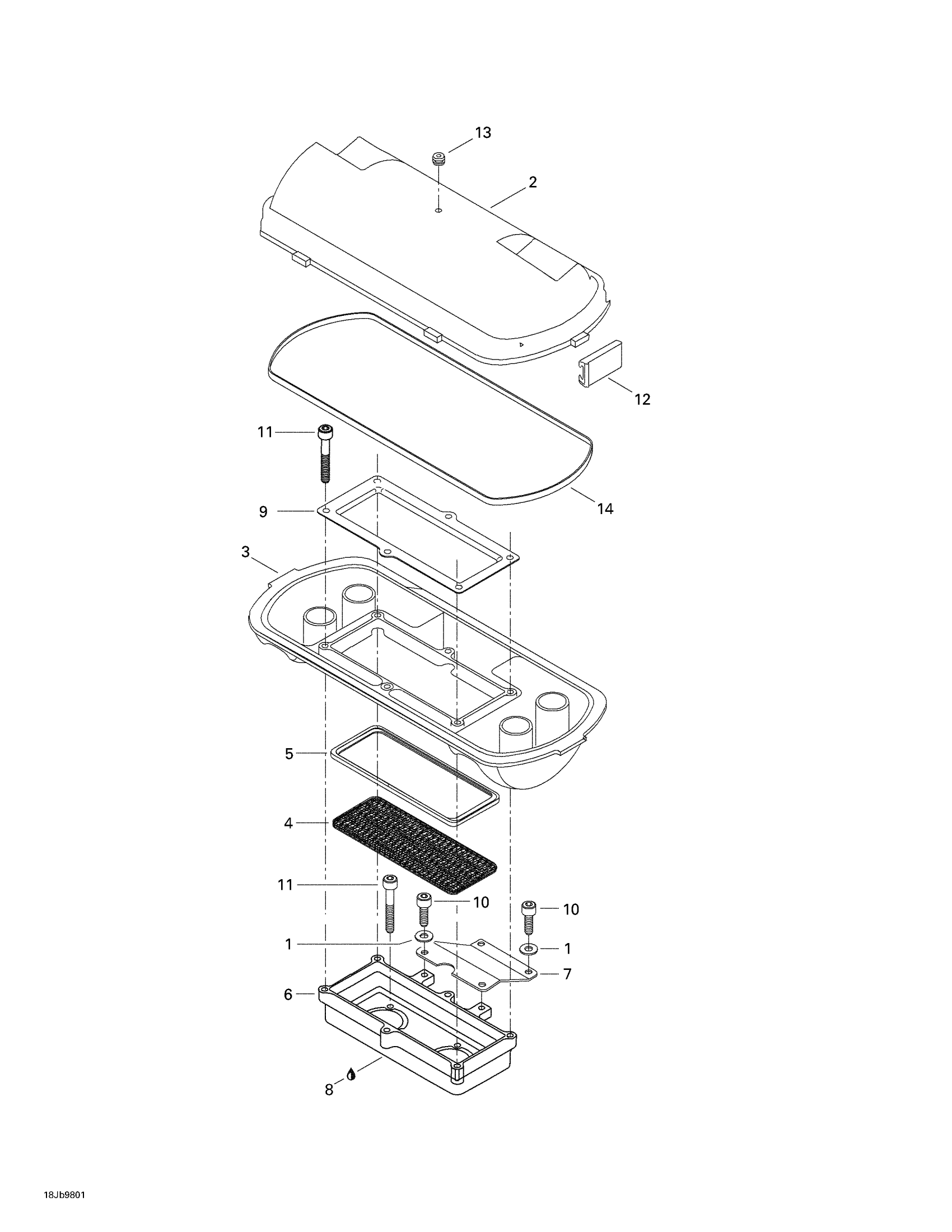

Sea-doo Challenger 1800, 5611/5616, 1998 Air Intake System Diagram

#

Description

Price

1

Stainless Flat Washer M6

234061600

$0.33

2

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

3

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

4

Flame Arrester

273000118

Unavailable

5

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

6

Housing Arrester (Double Intake)

273000022190

Unavailable

7

Support

270000412

Unavailable

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

9

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

10

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

11

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

12

Retainer Clip

273000006

Unavailable

13

Rubber Bumper

293830005

$8.09

14

GASKET - Call your local BRP dealership

293250023

Unavailable
