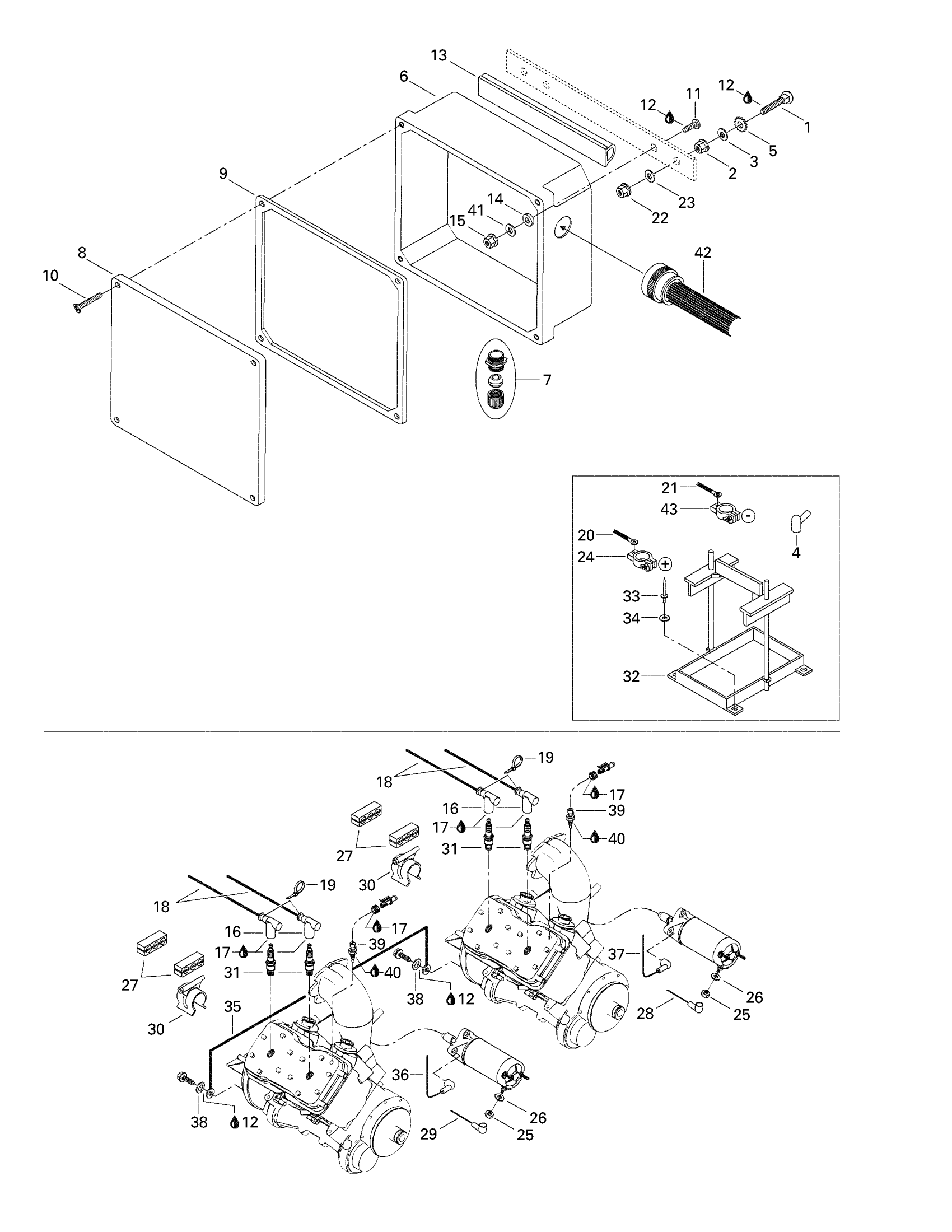

Sea-doo Challenger 1800, 5600/5601, 1997 10- Electrical System Diagram

#

Description
Price

1

Elevator Bolt

204000130

Unavailable

2

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

5

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

6

Electrical Box | Includes 6 - 7.

204470007

Unavailable

7

Cap & Grommet

278000528

Unavailable

8

Electrical Box Cover

278000625

Unavailable

9

Gasket

293250033

Unavailable

10

Screw 1/4-20 x 5/8

211000052

Unavailable

11

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

12

Loctite 243, 10 ml

293800060

$21.49

13

Was 293200017 Neoprene Seal

219704365

$149.99

14

Rubber Washer 6 mm

211200032

Unavailable

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Spark Plug Wire

204470093

Unavailable

19

Tie Wrap 142 mm

293750002

$1.25

20

Red Cable

204470068

Unavailable

21

Ground Cable

204470047

Unavailable

22

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

23

Flat Washer M6, Stainless

234062600

$0.77

24

Battery Pole (Negative)

278000680

Unavailable

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

Stainless Flat Washer M6

234061600

$0.33

27

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

28

Starter Cable R.H

204470048

Unavailable

29

Starter Cable L.H

204470066

Unavailable

30

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

31

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

32

Battery Support

204470118

Unavailable

33

Pop Rivet 3/16"

293150008

$0.50

34

Flat Washer 5 mm, Stainless

234052600

$0.77

35

Ground Cable

204470052

Unavailable

36

LH Ground Cable

204470051

Unavailable

37

Ground Cable R.H

204470050

Unavailable

38

External Serrated Lock Washer 6 mm

234461608

$1.15

39

Temperature Sensor

278000965

$73.99

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

41

Flat Washer

213200017

Unavailable

42

Main Harness Ass'y | Includes 11 - 37.

204470010

Unavailable

43

Battery Pole (Positive)

278000679

Unavailable
