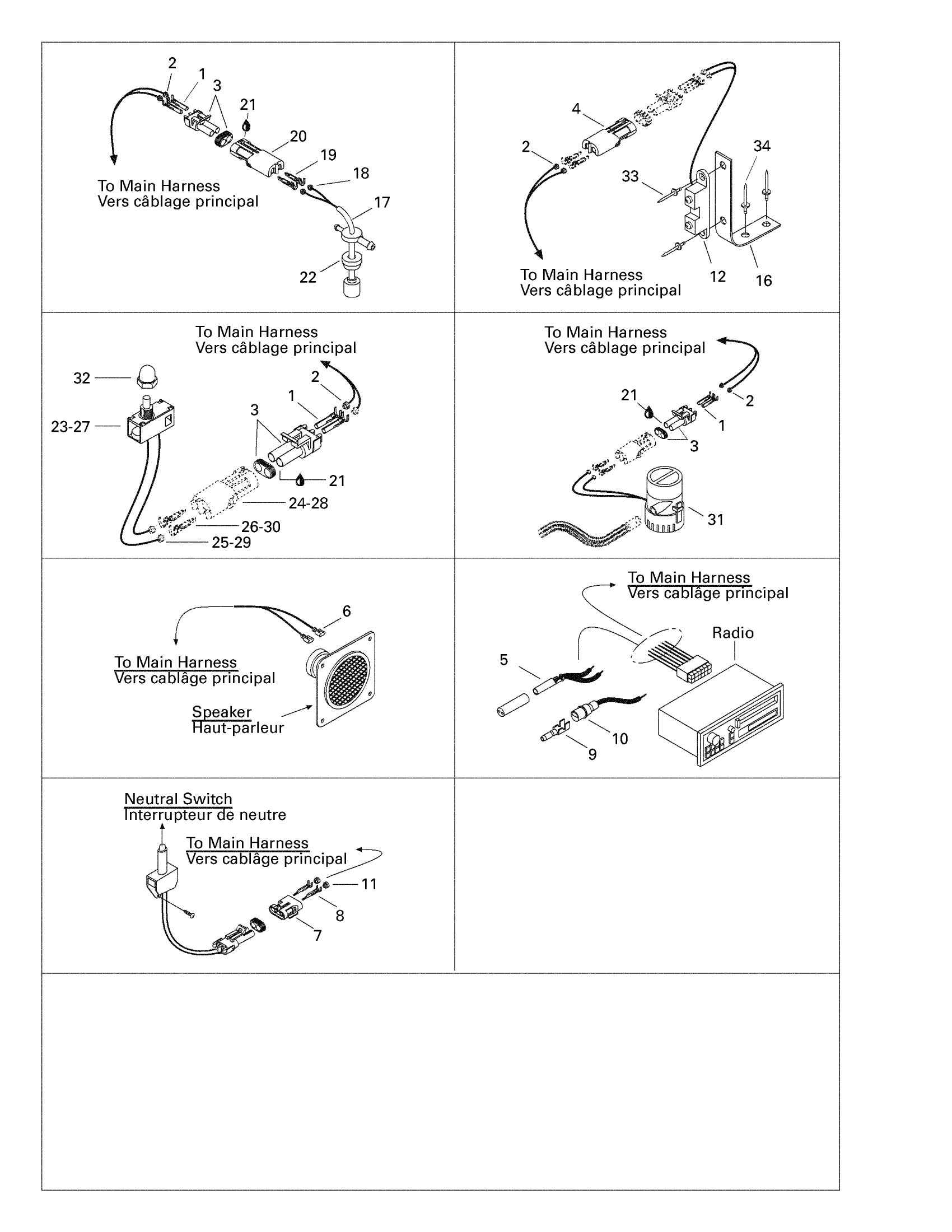

Sea-doo Challenger 1800, 5600/5601, 1997 Electrical Accessories 4 Diagram

#

Description
Price

1

Female Terminal

409007300

$0.36

2

Wire Seal

278000218

$3.48

3

Male Connector, 2 Circuits

278000220

$11.02

4

Female Housing, 2 Circuits

278000217

$7.59

5

Female Terminal | DS 650 X

278001009

$2.55

6

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

7

Male Terminal Housing, 2 Circuits

409209400

$14.97

8

Male Terminal | Europe Models

409012900

$3.22

9

Male Terminal

278000230

$3.48

10

Insulated Sheath

278001008

$3.20

11

Wire Seal

278001013

$2.72

12

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

13

Male Connector, 2 Circuits

278000220

$11.02

14

Female Terminal

278000223

$2.55

15

Wire Seal

278000218

$3.48

16

Sensor Support

204470058

Unavailable

17

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

18

Wire Seal

278000218

$3.48

19

Male Terminal | XT Models

278000222

$2.55

20

Female Housing, 2 Circuits

278000217

$7.59

21

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

22

Grommet

204470104

Unavailable

23

RH IGNITION SWITCH - Call your local BRP dealership

278000622

Unavailable

24

Female Housing, 2 Circuits

278000217

$7.59

25

Wire Seal

278000218

$3.48

26

Male Terminal | XT Models

278000222

$2.55

27

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

28

Female Housing, 2 Circuits

278000217

$7.59

29

Wire Seal

278000218

$3.48

30

Male Terminal | XT Models

278000222

$2.55

31

Bilge Pump This part replaces 204470220.

278002020

$79.92

32

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

33

Pop Rivet 5/32

293150050

Unavailable

34

Pop Rivet 3/16"

293150008

$0.40
