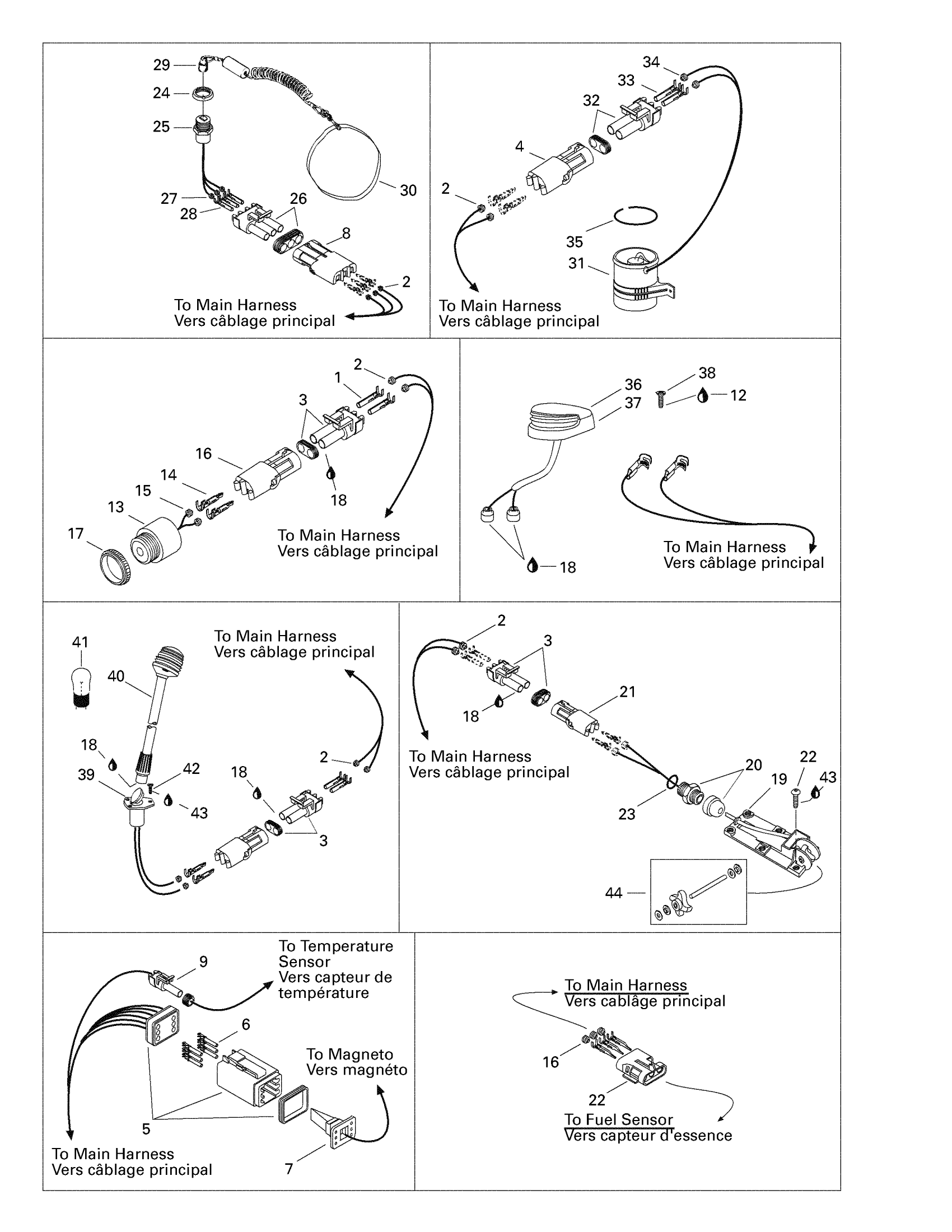

Sea-doo Challenger 1800, 5600/5601, 1997 Electrical Accessories 3 Diagram

#

Description
Price

1

Female Terminal

409007300

$0.36

2

Wire Seal

278000218

$3.48

3

Male Connector, 2 Circuits

278000220

$11.02

4

Female Housing, 2 Circuits

278000217

$7.59

5

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

6

Female Terminal

278000632

$1.69

7

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

8

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

9

Male Housing, 1 Circuit

278001012

$12.65

10

Wire Seal

278001013

$2.72

11

Female Terminal

278001014

$2.72

12

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

13

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

14

Male Terminal | XT Models

278000222

$2.55

15

Wire Seal

278000218

$3.48

16

Female Housing, 2 Circuits

278000217

$7.59

17

Buzzer Nut

278000707

Unavailable

18

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

19

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

20

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

21

Female Housing, 2 Circuits

278000217

$7.59

22

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

23

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

24

Safety Nut (DESS Switch)

278002963

$2.72

25

Safety Switch This part replaces 278002325.

278002773

$89.67

26

Male Housing, 3 Circuits

278000273

$7.59

27

Wire Seal

278000218

$3.48

28

Female Terminal

278000223

$2.55

29

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

30

Safety Strap

204470025

Unavailable

31

Fan Ass'y | Includes 44 to 47

204470108

$114.37

32

Male Connector, 2 Circuits

278000220

$11.02

33

Female Terminal

278000223

$2.55

34

Wire Seal

278000218

$3.48

35

BROACH - Call your local BRP dealership

204000133

Unavailable

36

Front Lamp Ass'y

204470062

Unavailable

37

Front Lamp Base

204470070

Unavailable

38

Phillips Screw M4 X 16

208641660

$0.74

39

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

40

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

41

Bulb

204470053

Unavailable

42

Screw M4 x 30

211000136

Unavailable

43

Loctite 243, 10 ml

293800060

$20.77

44

Paddle Wheel Kit

295500108

Unavailable
