- Challenger 1800, 5600/5601, 1997
10- Electrical Accessories 2

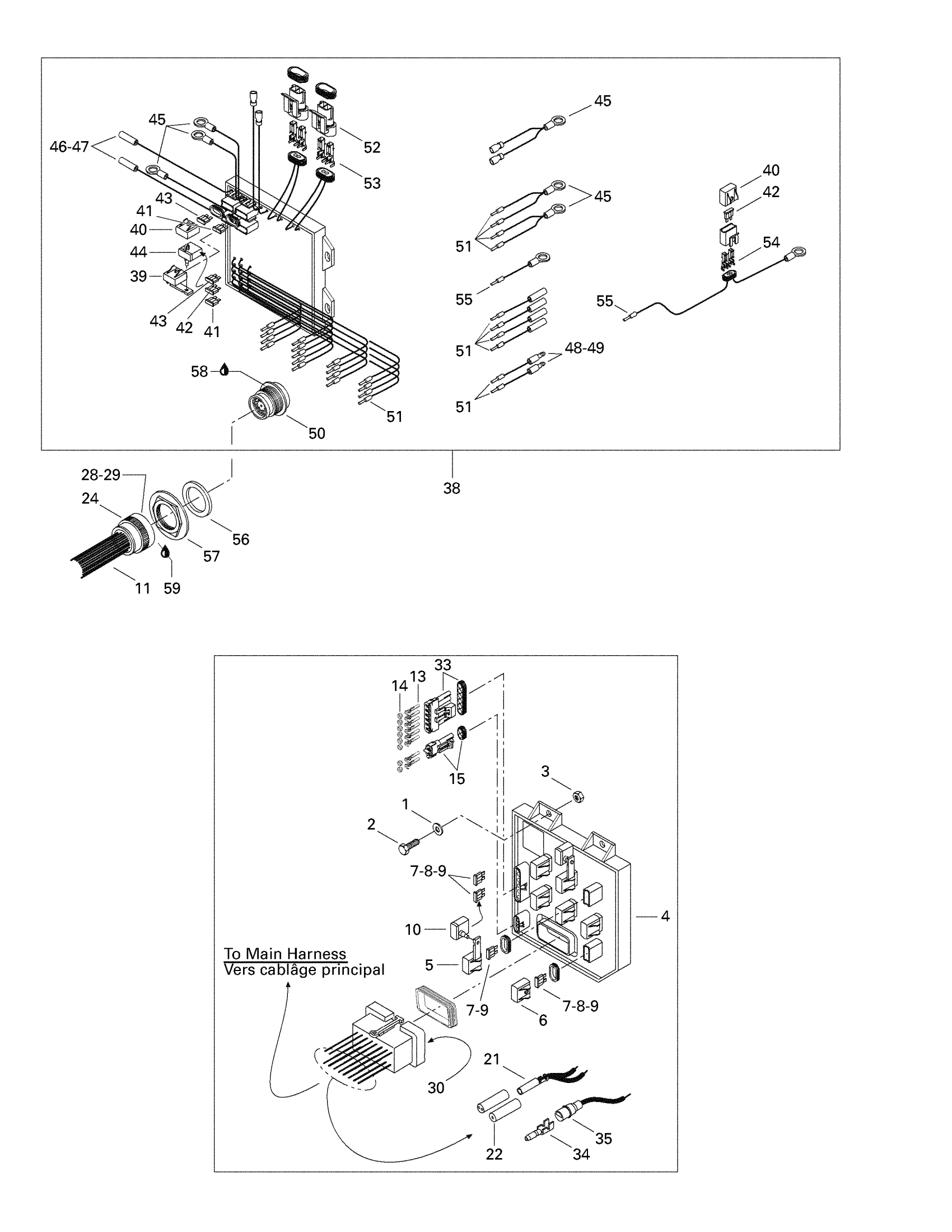

Sea-doo Challenger 1800, 5600/5601, 1997 10- Electrical Accessories 2 Diagram
#
1
Flat Washer M6, Stainless
234062600
$0.77
2
Phillips Screw M6 X 25
208562560
$2.32
3
Hex. Elastic Stop Nut M6
232561600
$1.15
4
Fuse Block | Includes 4 - 10.
204470017
Unavailable
5
Fuse Holder Cap
278001326
$7.69
6
FUSE CAP - Call your local BRP dealership
278000378
Unavailable
7
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
8
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
9
Fuse, 10 Amperes | North America
278001197
$2.21
10
Fuse Holder
278000379
Unavailable
11
Main Harness Ass'y | Includes 11 - 37.
204470010
Unavailable
12
Male Housing, 3 Circuits
278000273
$9.59
13
Female Terminal
409007300
$0.45
14
Wire Seal
278000218
$4.39
15
Male Connector, 2 Circuits
278000220
$15.49
16
Female Housing, 2 Circuits
278000217
$9.59
17
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
18
Female Terminal
278000632
$2.09
19
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
20
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
21
Female Terminal | DS 650 X
278001009
$3.19
22
Insulated Sheath
278001007
$3.58
23
FEMALE TERMINAL - Call your local BRP dealership
278000228
Unavailable
24
Male Housing(Canon)
278000870
Unavailable
25
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
26
Male Housing, 1 Circuit
278001012
$16.86
27
Female Housing, 1 Circuit
278000161
$9.59
28
Female Terminal(Canon)
278000871
Unavailable
29
Female terminal(Canon)
278000872
Unavailable
30
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
31
Male Terminal Housing, 2 Circuits
409209400
$16.86
32
Male Terminal | Europe Models
409012900
$3.28
33
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000221
Unavailable
34
Male Terminal
278000230
$4.39
35
Insulated Sheath
278001008
$3.28
36
Wire Seal
278001013
$3.28
37
Female Terminal
278001014
$3.28
38
Electronic Module | Includes 38 - 55.
204470076
Unavailable
39
Fuse Holder Cap
278001326
$7.69
40
FUSE CAP - Call your local BRP dealership
278000378
Unavailable
41
Fuse, 5 Amperes | CE
278000344
$3.28
42
Fuse, 20 Amperes
409003900
$3.28
43
Fuse, 15 Amperes
278000343
$3.28
44
Fuse Holder
278000379
Unavailable
45
Open Barrel
278000992
$2.21
46
Female Terminal | DS 650 X
278001009
$3.19
47
Insulated Sheath
278001007
$3.58
48
Male Terminal
278000230
$4.39
49
Insulated Sheath
278001007
$3.58
50
Female Housing(Canon)
278000867
Unavailable
51
Male Terminal(Canon)
278000868
Unavailable
52
Male Connector, 2 Circuits
278001113
$16.86
53
Female Terminal
278001114
$3.19
54
Not Available As Spare Part - Friction Washer
Unavailable
55
Male Terminal
278000869
Unavailable
56
Gasket(Canon)
293250053
Unavailable
57
Nut(Canon)
211100029
Unavailable
58
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
59
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
