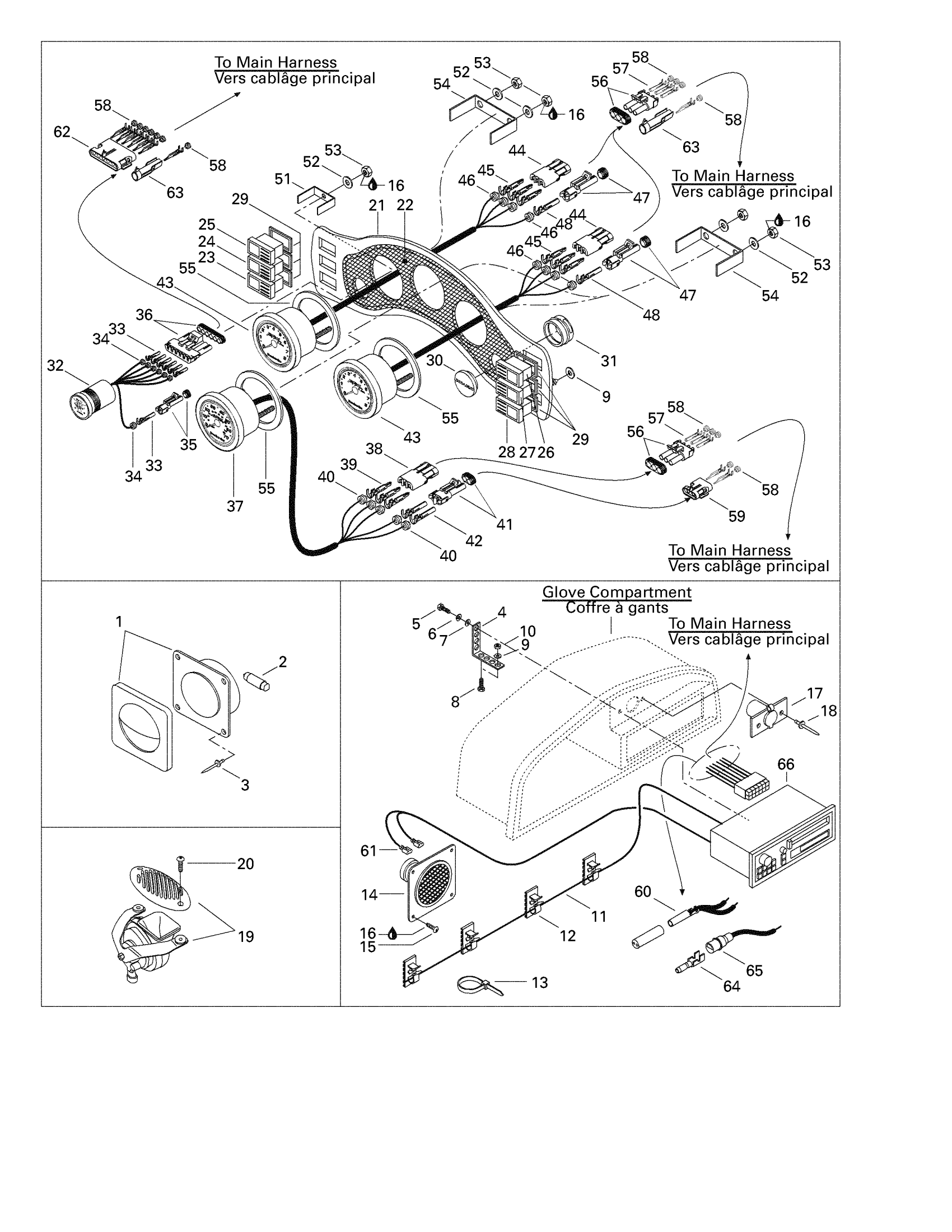

Sea-doo Challenger 1800, 5600/5601, 1997 10- Electrical Accessories 1 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

4

Radio Support

204470128

Unavailable

5

Screw M5 x 10

215851068

Unavailable

6

Helical Lock Washer M5

234151601

$1.15

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Antenna

204470028

Unavailable

12

Clip Cable

414839700

Unavailable

13

Tie Wrap 142 mm

293750002

$1.25

14

Speaker

204470029

Unavailable

15

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

16

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

17

12V. Jack

204470030

Unavailable

18

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

19

HORN - Call your local BRP dealership

204470801

Unavailable

20

SCREW-RD.HD.PH. - Call your local BRP dealership

211000100

Unavailable

21

Facia Ass'y | Includes 21 - 22.

204470114

Unavailable

22

Dash Decal

204900028

Unavailable

23

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

24

Bilge Pump Switch

204470012

Unavailable

25

Light Switch

204470013

Unavailable

26

Horn Switch

204470014

Unavailable

27

Coutesy Light Switch

204470015

Unavailable

28

Fuel Tank Reserve Switch

204470086

Unavailable

29

Gasket

204470132

Unavailable

30

Cap Jauge (Black)

269700035

Unavailable

31

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

32

Oil / Fuel Gauge | Includes 32 - 36.

204470130

Unavailable

33

Female Terminal

278000223

$3.19

34

Wire Seal

278000218

$4.39

35

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

36

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

37

Speedometer | Includes 37 - 42.

204470018

Unavailable

38

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

39

Male Terminal | XT Models

278000222

$3.19

40

Wire Seal

278000218

$4.39

41

Male Connector, 2 Circuits

278000220

$15.49

42

Female Terminal

278000223

$3.19

43

Tachometer | Includes 43 - 48.

204470019

Unavailable

44

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

45

Male Terminal | XT Models

278000222

$3.19

46

Wire Seal

278000218

$4.39

47

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

48

Female Terminal

278000223

$3.19

49

Gasket

293250040

Unavailable

50

Loctite 243, 10 ml

293800060

$21.49

51

<> Support

204470131

Unavailable

52

Star Washer

204470113

Unavailable

53

Nut

211100042

Unavailable

54

<> Support

204470112

Unavailable

55

Gasket

204470135

Unavailable

56

Male Housing, 3 Circuits

278000273

$9.59

57

Female Terminal

409007300

$0.45

58

Wire Seal

278000218

$4.39

59

Female Housing, 2 Circuits

278000217

$9.59

60

Female Terminal | DS 650 X

278001009

$3.19

61

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

62

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

63

Female Housing, 1 Circuit

278000161

$9.59

64

Male Terminal

278000230

$4.39

65

Insulated Sheath

278001008

$3.28

66

Radio

204470027

Unavailable
