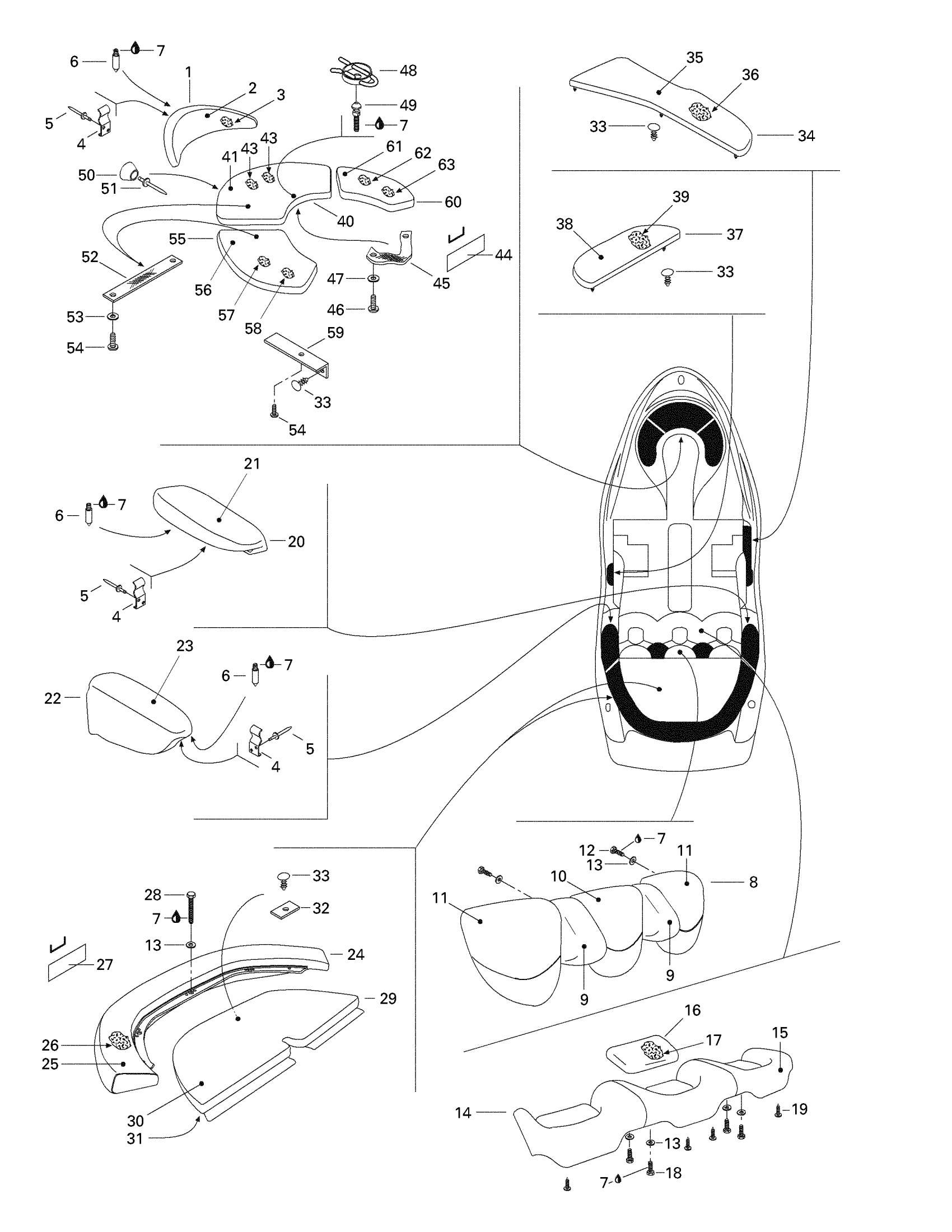

Sea-doo Challenger 1800, 5600/5601, 1997 Front / Rear Seat Diagram

#

Description
Price

1

Front Backrest Ass'y | Includes 1 - 3.

204610001

Unavailable

2

Front Backrest Cover (Dark Green) | CHALLENGER 1800 5679.

204610029

Unavailable

3

Front Backrest Foam (1/2")

204610030

Unavailable

4

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

5

Pop Rivet 3/16"

293150043

$2.09

6

Threaded Rod M5

269000380

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Rear Backrest Ass'y | Includes 8 - 11.

204610006

Unavailable

9

Rear Bump Cover (Dark Green) | CHALLENGER 1800 5679.

204610035

Unavailable

10

Rear (Center) Backrest Cover (White)

204610036

Unavailable

11

Rear Backrest Cover (White/Serigraphy)

204610037

Unavailable

12

Hex. Screw M6 X 30

207163060

$1.48

13

Flat Washer M6, Stainless

234062600

$0.77

14

Rear Seat Ass'y | Includes 14 - 17.

204610007

Unavailable

15

Rear Seat Cover (Dark Green) | CHALLENGER 1800 5679.

204610039

Unavailable

16

Rear Seat Pillow Cover

269000231

Unavailable

17

Rear Seat Pillow Foam

269000232

Unavailable

18

Hex. Screw M6 X 25

207162560

$1.47

19

Black Dart

293730014

$0.99

20

RH Rear Seat Arm-Rest Ass'y | CHALLENGER 1800 5679.

204610008

Unavailable

21

RH Rear Seat Arm-Rest Cover (Dark Gree | CHALLENGER 1800 5679.

204610048

Unavailable

22

LH Rear Seat Arm-Rest Ass'y | CHALLENGER 1800 5679.

204610009

Unavailable

23

LH Rear Seat Arm-Rest Cover (Dark Green) | CHALLENGER 1800 5679.

204610050

Unavailable

24

Rear Spoiler Ass'y | Includes 24 - 27.

204610010

Unavailable

25

Rear Spoiler Cover (Dark Green) | CHALLENGER 1800 5679.

204610052

Unavailable

26

Foam Spoiler

204610053

Unavailable

27

Staple Cover, Meter

204610184

Unavailable

28

Hex. Screw M6 X 30

207063060

$1.89

29

Sun Deck Pillow Ass'y | Includes 29 - 32.

204610011

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Sun Deck Lower Cover

204610193

Unavailable

32

Strap

204610194

Unavailable

33

Black, Dart

293730006

$0.99

34

RH Elbow Padding Ass'y | Includes 34 - 36.

204610012

Unavailable

35

RH Elbow Padding Cover (Dark Green) | CHALLENGER 1800 5679.

204610120

Unavailable

36

Neoprene Foam

204610121

Unavailable

37

LH Elbow Padding Ass'y | Includes 37 - 39.

204610013

Unavailable

38

LH Elbow Padding Cover (Dark Green) | CHALLENGER 1800 5679.

204610122

Unavailable

39

Neoprene Foam

204610123

Unavailable

40

Center Front Seat Ass'y | Includes 40 - 48.

204610002

Unavailable

41

Center Front Seat Cover (White)

204610032

Unavailable

42

Center Front Seat Foam (1 1/4")

204610033

Unavailable

43

Center Front Seat Foam (1/4")

204610034

Unavailable

44

Staple Cover, Meter

204610184

Unavailable

45

Passenger Strap

293000060

Unavailable

46

Screw K40 X 10

241140060

$1.48

47

Flat Washer 4 mm, Stainless

234042600

$1.15

48

Front Seat Latch

204610178

Unavailable

49

Seat Stud

204610207

Unavailable

50

Rubber Stopper

293830043

Unavailable

51

Pop Rivet 3/16"

293150013

$1.37

52

Passenger Strap

293000060

Unavailable

53

Flat Washer 4 mm, Stainless

234042600

$1.15

54

Screw K40 X 10

241140060

$1.48

55

LH Front Seat Ass'y | Includes 55 - 58.

204610003

Unavailable

56

LH Front Seat Cover (White)

204610040

Unavailable

57

LH Front Seat Foam (1 1/4")

204610041

Unavailable

58

LH Front Seat Foam (1/4")

204610042

Unavailable

59

SEAT BRACKET - Call your local BRP dealership

204610100

Unavailable

60

RH Front Seat Ass'y | Includes 60 - 63.

204610004

Unavailable

61

RH Front Seat Cover (White)

204610044

Unavailable

62

LH Front Seat Foam (1 1/4")

204610041

Unavailable

63

LH Front Seat Foam (1/4")

204610042

Unavailable
