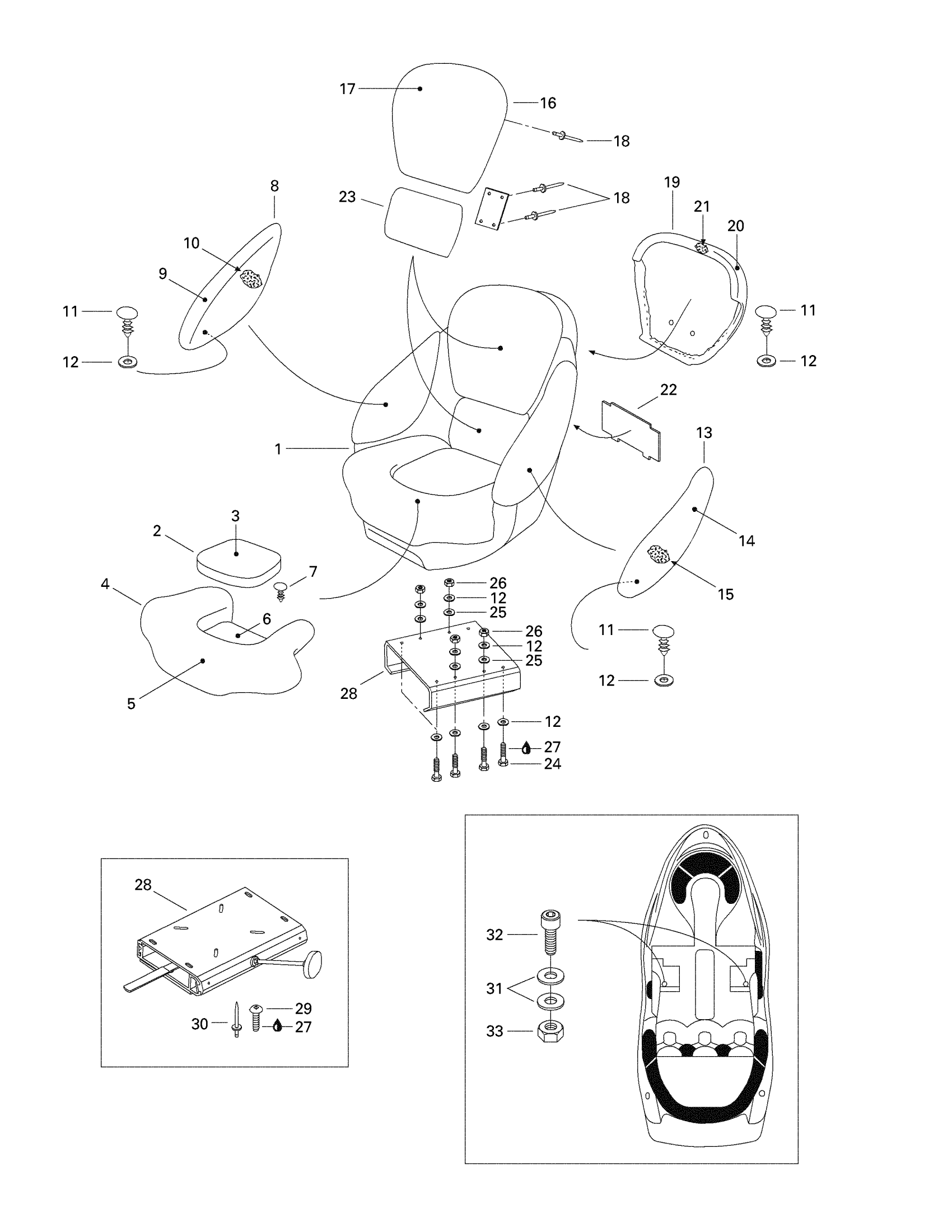

Sea-doo Challenger 1800, 5600/5601, 1997 09- Driver Passenger Seat Diagram

#

Description
Price

1

Rotary Seat Base

204610015

Unavailable

2

Center Seat Ass'y | Includes 2 - 3.

204610016

Unavailable

3

Seat Cover (White)

204610057

Unavailable

4

Driver Seat Bezel Ass'y | Includes 4 - 6.

204610017

Unavailable

5

Seat Bezel Cover (Green)

204610082

Unavailable

6

Seat Plate

204610176

Unavailable

7

Black Dart

293730014

$0.99

8

RH Arm Rest Ass'y | Includes 8 - 10.

204610018

Unavailable

9

RH Arm Rest Cover (Green)

204610061

Unavailable

10

Arm Rest Foam (1/4")

204610062

Unavailable

11

Black, Dart

293730006

$0.99

12

Flat Washer M6, Stainless

234062600

$0.77

13

LH Arm Rest Ass'y | Includes 13 - 15.

204610019

Unavailable

14

LH Arm Rest Cover (Green)

204610064

Unavailable

15

Arm Rest Foam (1/4")

204610062

Unavailable

16

Inner Backrest | Includes 16 - 17.

204610020

Unavailable

17

Inner Backrest Cover (White)

204610067

Unavailable

18

Pop Rivet 3/16"

293150008

$0.50

19

Seat-Backside Ass'y | Includes 19 - 21.

204610021

Unavailable

20

Seat-Backside Cover (Green)

204610070

Unavailable

21

Seat-Backside Foam (1/4")

204610071

Unavailable

22

Finition Plate

204610195

Unavailable

23

Lumbar Support

204610196

Unavailable

24

Hex. Screw M6 X 30

207063060

$1.89

25

Flat Washer 8 mm, Stainless

234082600

$2.43

26

Hex. Elastic Stop Nut M6

232561600

$1.15

27

Loctite 243, 10 ml

293800060

$21.49

28

RH Seat Base

204610022

Unavailable

LH Seat Base

204610023

Unavailable

29

Screw M6 x 35

211000010

Unavailable

30

Pop Rivet 3/16"

293150013

$1.37

31

Stainless, Flat Washer 8 mm

234081600

$0.55

32

Socket Screw M8 X 30

205083060

$2.96

33

Hex. Elastic Nut M8

232581600

$1.48
