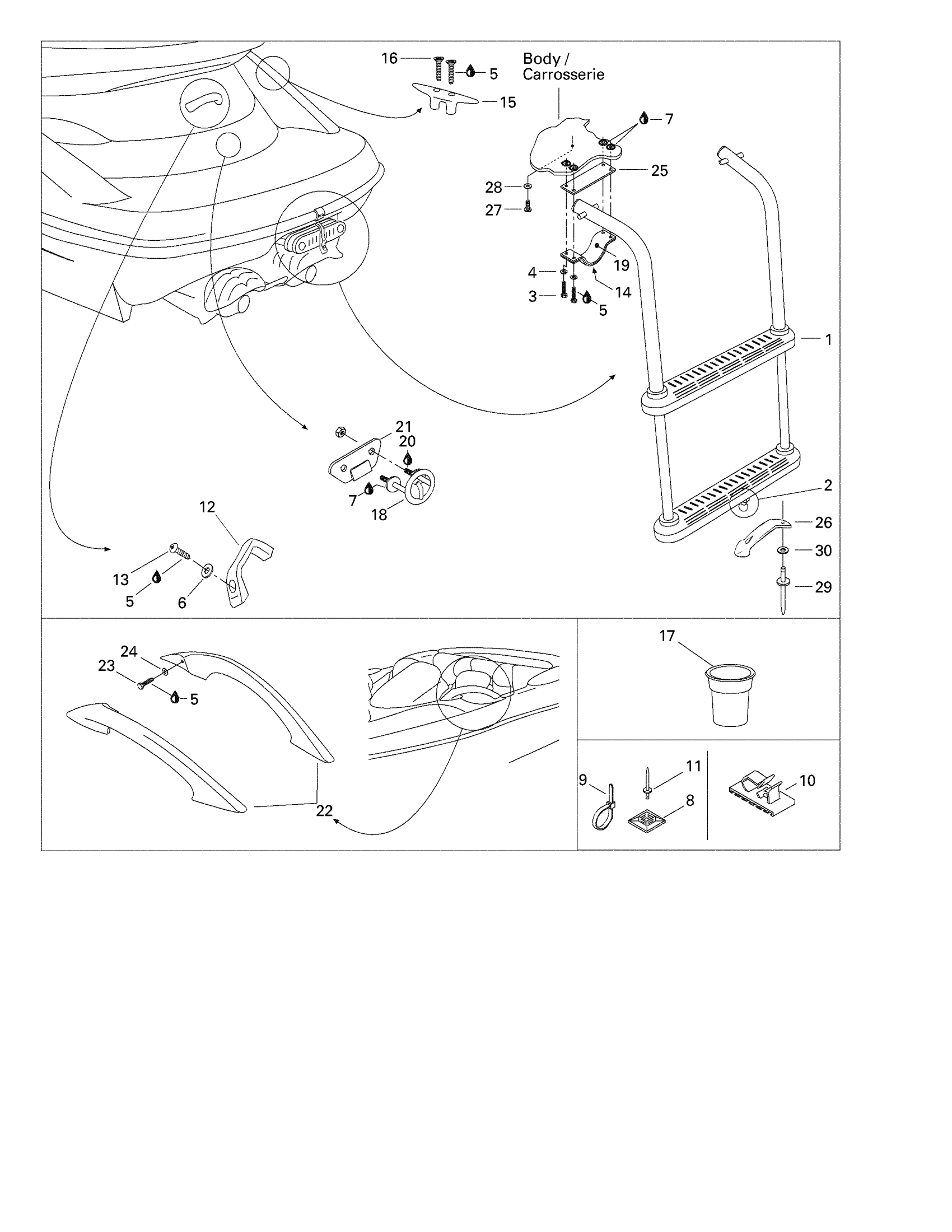

Sea-doo Challenger 1800, 5600/5601, 1997 09- Body And Accessories 3 Diagram

#

Description
Price

1

Ladder

204060012

Unavailable

2

Ladder Knob

204060054

Unavailable

3

Hex. Screw M6 X 35

207163560

$1.49

4

Lock Washer Helical M6

234161601

$1.15

5

Loctite 243, 10 ml

293800060

$21.49

6

Stainless Flat Washer M6

234061600

$0.33

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

9

Tie-Rap 180 mm

414115200

$0.11

10

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

11

Rivet 1/8"

293150016

$0.40

12

Grip Handle (Dark Green) (5679)

204070012

Unavailable

13

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

14

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

15

Cleat

204070090

Unavailable

16

Allen Screw M6 x 55

215965560

Unavailable

17

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

18

Ski Tow

291000610

Unavailable

19

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

20

Loctite 271, 10 ml

293800005

$26.99

21

Ski Tow Plate, Black

204070054

Unavailable

22

RH Lateral Handle (Dark Green) (5679)

204070019

Unavailable

LH Lateral Handle (Dark Green) (5679)

204070020

Unavailable

23

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

26

Hood Latch

570027100

$13.49

27

Screw M4 x 30

211000136

Unavailable

28

Flat Washer M6, Stainless

234062600

$0.77

29

Pop Rivet 3/16"

293150013

$1.37

30

Flat Washer 5 mm, Stainless

234052600

$0.77
