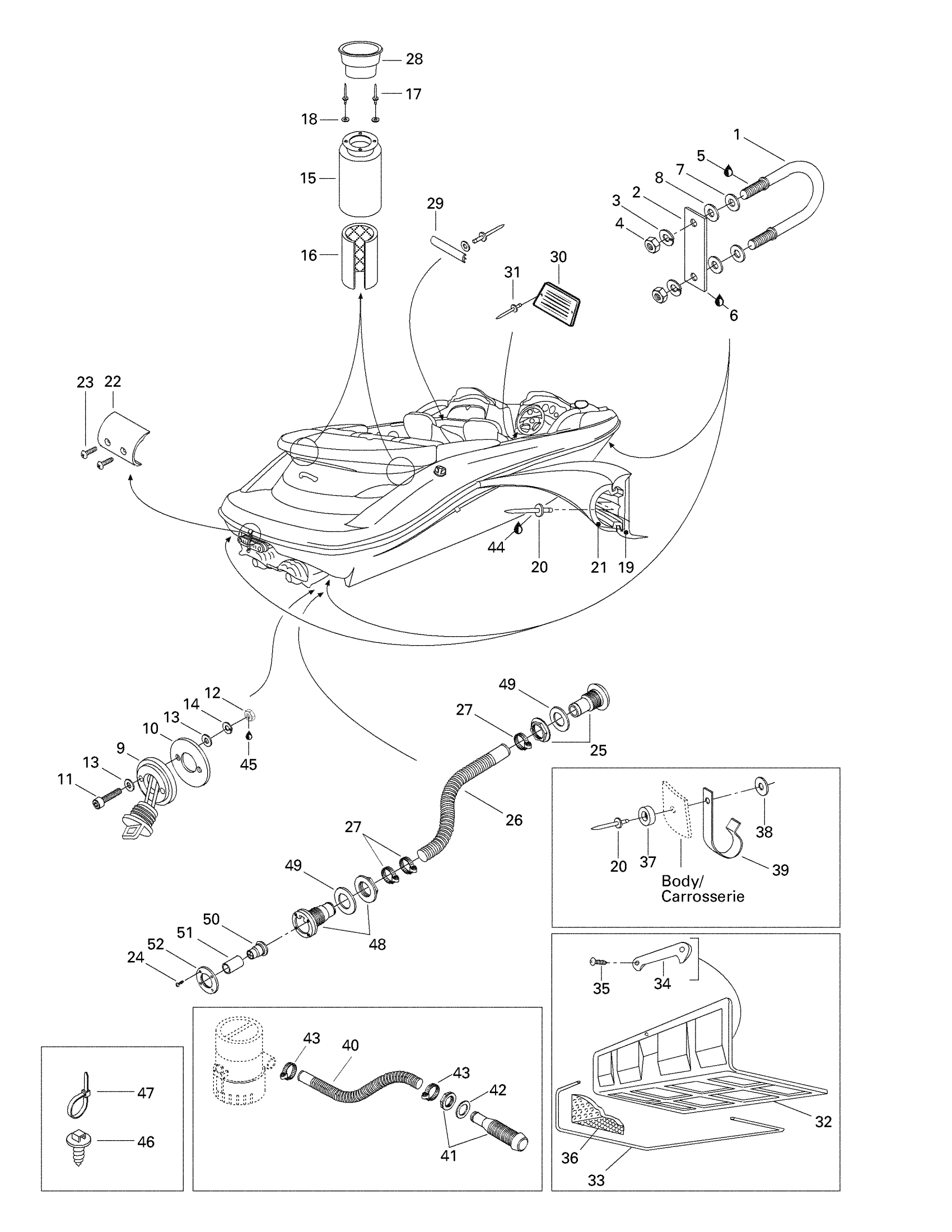

Sea-doo Challenger 1800, 5600/5601, 1997 Body And Accessories 2 Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

3

Lock Washer 8 mm, Stainless

234181601

$0.46

4

Hex. Nut M8

232081600

$1.22

5

Loctite 271, 10 ml

293800005

$20.77

6

Silicone Sealant 51388, 300 ml

296000309

$35.72

7

Flat Washer M8.5 x 18

293050001

$1.29

8

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

9

Drain Plug

292000187

$10.21

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

Socket Head Screw M4 X 25

205042560

$1.85

12

Nut M4

211100025

Unavailable

13

Flat Washer 4 mm

234040600

$0.46

14

Lock Washer 4 mm

234141601

$1.06

15

Rear Hose Vent

204050004

Unavailable

16

Noise Deflector

291001133

Unavailable

17

Pop Rivet 3/16"

293150014

$0.87

18

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

19

Bumper, Metallic Pewter

291000903

Unavailable

20

Pop Rivet 3/16"

293150013

$1.11

21

Bumper Trim, Metallic Pewter

291000904

Unavailable

22

BUMPER COVER - Call your local BRP dealership

291000905

Unavailable

23

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

24

Screw K40 X 10

241140060

$1.25

25

FITTING - Call your local BRP dealership

293710060

Unavailable

26

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

27

Tridon Gear Clamp

293650045

$4.51

28

Cup Holder

291000914

Unavailable

29

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

30

Rear Intake Grill (Black)

291000300

Unavailable

31

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

32

Accessories Cover Ass'y | Includes 32 - 36.

295500425

Unavailable

33

Seal Tray 1000Mm Long

219704368

$12.30

34

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

35

Hex. Flange Screw K40 X 16

241141660

$1.25

36

Luggage Foam

204320005

Unavailable

37

Rubber Stopper

293830043

Unavailable

38

Flat Washer

211200028

Unavailable

39

Clip Cable

414839700

Unavailable

40

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

41

Fitting

293710162

$11.87

42

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

43

Tridon Clamp

293650016

$8.57

44

Silicone Sealant 51388, 300 ml

296000309

$35.72

45

Loctite 243, 10 ml

293800060

$20.77

46

Mount Dart

293730040

$0.86

47

Tie Wrap 142 mm

293750002

$0.88

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

48

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

49

GASKET - Call your local BRP dealership

292800106

Unavailable

50

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

51

Scupper Support

204060072

Unavailable

52

Scupper Clamp

204060074

Unavailable
