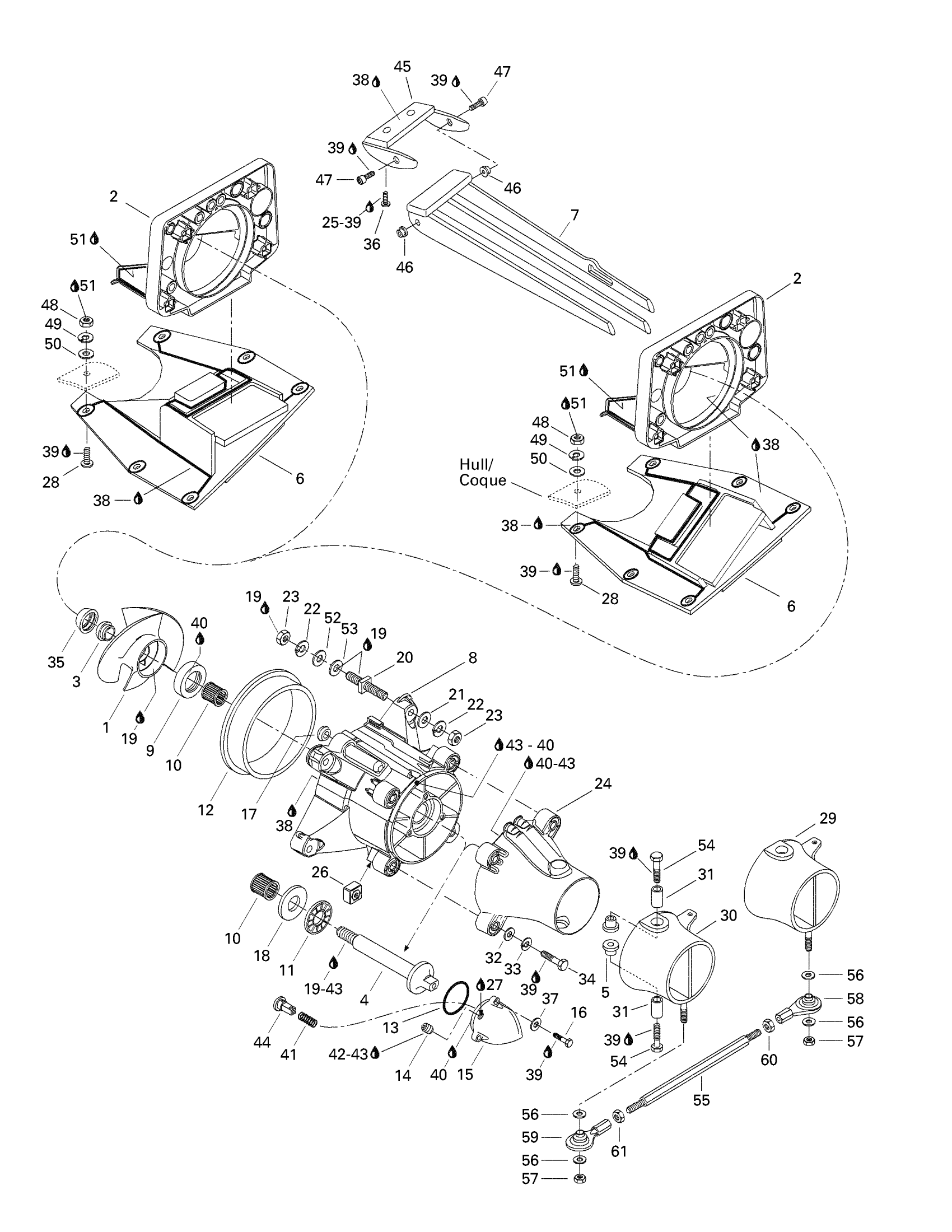

Sea-doo Challenger 1800, 5600/5601, 1997 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

204160027

Unavailable

2

PUMP SUPPORT - Call your local BRP dealership

204120001

Unavailable

3

Impeller Boot

271000516

$9.59

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Venturi Bushing

293900001

$7.62

6

Shoe - R.H

204120029

Unavailable

Shoe L.H

204120030

Unavailable

7

Inlet Grate - R.H

204120051

Unavailable

Inlet Grate L.H

204120053

Unavailable

8

IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 7 - 11.

295500521

Unavailable

9

Oil Seal

267000094

$22.49

10

Needle Bearing

293350017

$27.99

11

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

12

Wear Ring

271000290

$58.49

13

O-Ring

293300011

$8.64

14

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

15

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

16

Hex. Screw M5 X 20

207152060

$1.47

17

O-RING - Call your local BRP dealership

293300040

Unavailable

18

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

19

Loctite 271, 10 ml

293800005

$26.99

20

Square Stud

250300022

$20.99

21

Flat Washer 10 mm, Stainless

234001600

$1.15

22

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

23

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

24

Venturi

271000624

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$36.99

26

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

27

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

28

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

29

RH Steering Nozzle (Black)

204120069

Unavailable

30

Steering Nozzle (Black) L.H

204120071

Unavailable

31

Sleeve

271001816

$14.99

32

Stainless, Flat Washer 8 mm

234081600

$0.55

33

Lock Washer 8 mm, Stainless

234181601

$0.55

34

SCREW-HEX.CAP DIN.931A2 - Call your local BRP dealership

215688060

Unavailable

35

Impeller Ring

271000517

$9.59

36

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

37

Flat Washer M5, Stainless

234051600

$0.77

38

Instant Gasket

219701421

$51.99

39

Loctite 243, 10 ml

293800060

$21.49

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

41

SPRING - Call your local BRP dealership

271000704

Unavailable

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Was 293800041 Loctite Primer 7649

219704458

$39.99

44

Pusher

271000703

Unavailable

45

Grate Support R.H

204120050

Unavailable

Grate Support L.H

204120052

Unavailable

46

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

47

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

48

Hex. Nut M6

232061600

$1.15

49

Lock Washer Helical M6

234161601

$1.15

50

Flat Washer M6, Stainless

234062600

$0.77

51

Silicone Sealant 51388, 300 ml

296000309

$36.99

52

Flat Washer 10 mm, Stainless

234002600

$2.22

53

Shim 0.3 mm

272000053

$11.49

54

Socket Head Screw M8 x 25

211000134

Unavailable

55

Link Rod

204120054

Unavailable

56

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

57

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

58

Ball Joint R.H

204120072

Unavailable

59

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

60

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

61

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable
