- Challenger 1800, 5600/5601, 1997
05- Control Handle

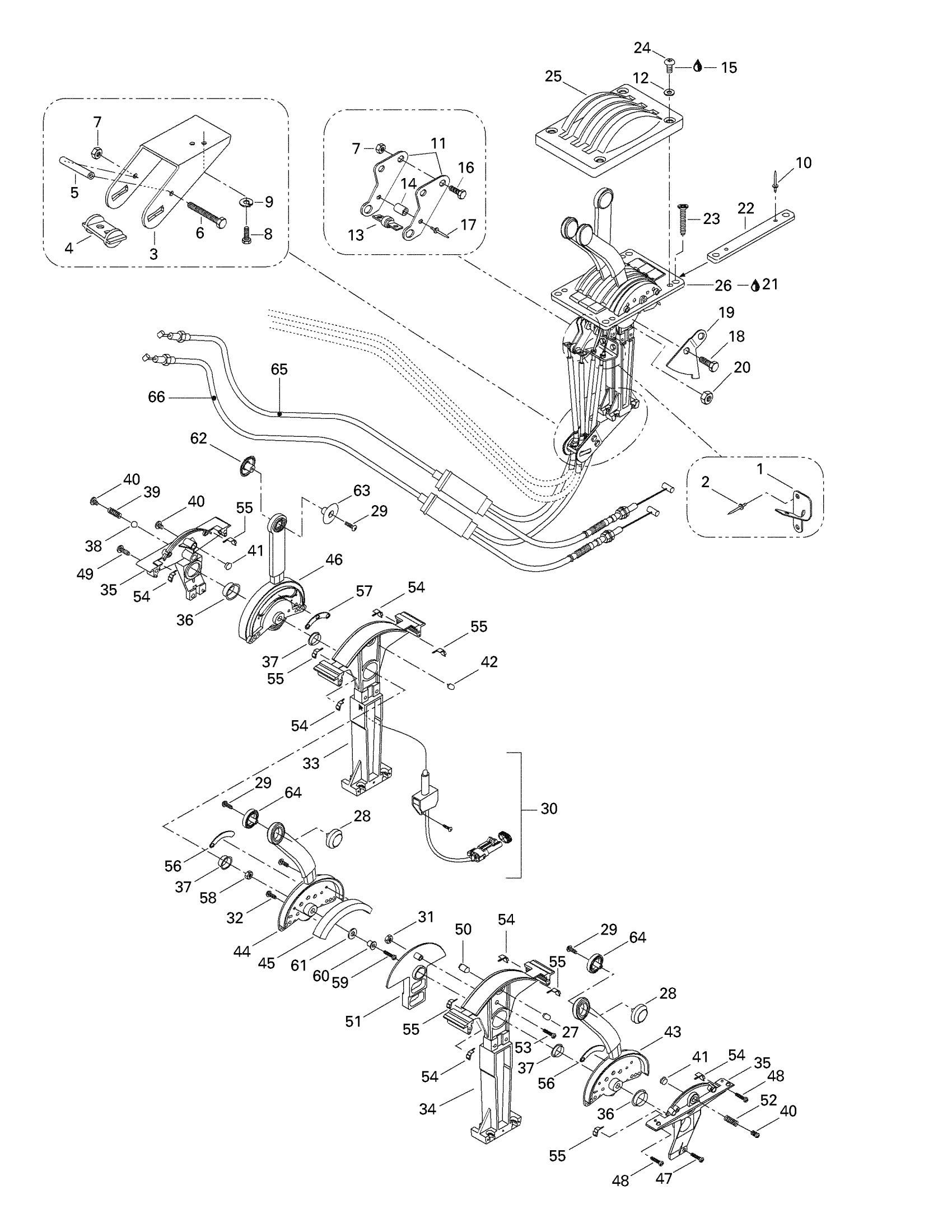

Sea-doo Challenger 1800, 5600/5601, 1997 05- Control Handle Diagram
#
1
CABLE SUPPORT - Call your local BRP dealership
277000504
Unavailable
2
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
3
SUPPORT - Call your local BRP dealership
277000452
Unavailable
4
PIVOT BRACKET - Call your local BRP dealership
277000451
Unavailable
5
SPACER - Call your local BRP dealership
277000453
Unavailable
6
Screw M6 x 80
210100010
Unavailable
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
Hex. Screw M6 x 12
210000011
Unavailable
9
Lock Washer Helical M6
234161601
$1.15
10
Pop Rivet 3/16"
293150013
$1.37
11
Link - Reverse
277000448
Unavailable
12
Flat Washer 4 mm
234040600
$0.55
13
PIVOT BRACKET - Call your local BRP dealership
277000450
Unavailable
14
SPACER - Call your local BRP dealership
277000449
Unavailable
15
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
16
Hex. Screw M6 X 16
207161660
$1.59
17
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
18
SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership
215051660
Unavailable
19
THROTTLE LINK - Call your local BRP dealership
204390045
Unavailable
20
Hex. Elastic Nut M5 | X
232551600
$1.15
21
Synthetic Grease, 400 G
293550010
Unavailable
22
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
23
SCREW-SOCKET HD.CTSK.DIN.7991-A2 - Call your local BRP dealership
211000102
Unavailable
24
Phillips Screw M4 X 10
208641060
$1.01
25
Control Cover
277000505
Unavailable
26
CONTROL ULTRAFLEX ASS'Y - Call your local BRP dealership | Includes 26 - 64.
204390054
Unavailable
27
Throttle Lever Pin
277000708
Unavailable
28
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership
277000415
Unavailable
29
SCREW M3.5 X 25 - Call your local BRP dealership
277000419
Unavailable
30
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership
278001195
Unavailable
31
Hex. Elastic Nut M5 | X
232551600
$1.15
32
Screw M4.2 x 19
277000411
Unavailable
33
LH Frame
277000394
Unavailable
34
RH Frame
277000395
Unavailable
35
Half-Case
277000703
Unavailable
36
BUSHING - Call your local BRP dealership
277000397
Unavailable
37
BUSHING - Call your local BRP dealership
277000398
Unavailable
38
BALL - Call your local BRP dealership
277000399
Unavailable
39
SPRING - Call your local BRP dealership
277000400
Unavailable
40
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
41
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
42
BLOCKING PIVOT - Call your local BRP dealership
277000704
Unavailable
43
THROTTLE LEVER - Call your local BRP dealership
277000655
Unavailable
44
LH THROTTLE LEVER - Call your local BRP dealership
277000409
Unavailable
45
Guide Block
277000410
Unavailable
46
SHIFT LEVER - Call your local BRP dealership
277000414
Unavailable
47
SCREW M5 X 60 - Call your local BRP dealership
277000420
Unavailable
48
Screw M5 X 20
277000421
Unavailable
49
Screw M5 X 70
277000422
Unavailable
50
THROTTLE LEVER PIN - Call your local BRP dealership
277000705
Unavailable
51
SPACER FRAME - Call your local BRP dealership
277000706
Unavailable
52
SPRING - Call your local BRP dealership
277000401
Unavailable
53
Screw M5 X 25
277000412
Unavailable
54
RH Water Seal
277000423
Unavailable
55
LH Water Seal
277000424
Unavailable
56
SPACER - Call your local BRP dealership
277000707
Unavailable
57
Shift Lever Spacer
277000408
Unavailable
58
NUT M6 - Call your local BRP dealership
277000425
Unavailable
59
Screw M6 x 35
277000426
Unavailable
60
Bushing
277000427
Unavailable
61
Washer
277000428
Unavailable
62
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership
277000417
Unavailable
63
HALF-SHIFT HANDLE - Call your local BRP dealership
277000418
Unavailable
64
HALF-THROTTLE HANDLE - Call your local BRP dealership
277000416
Unavailable
65
Throttle Cable (Left Hand)
204390033
Unavailable
66
RH Throttle Cable
204390032
Unavailable
