- Challenger 1800, 5600/5601, 1997
03- Magneto, Oil Pump

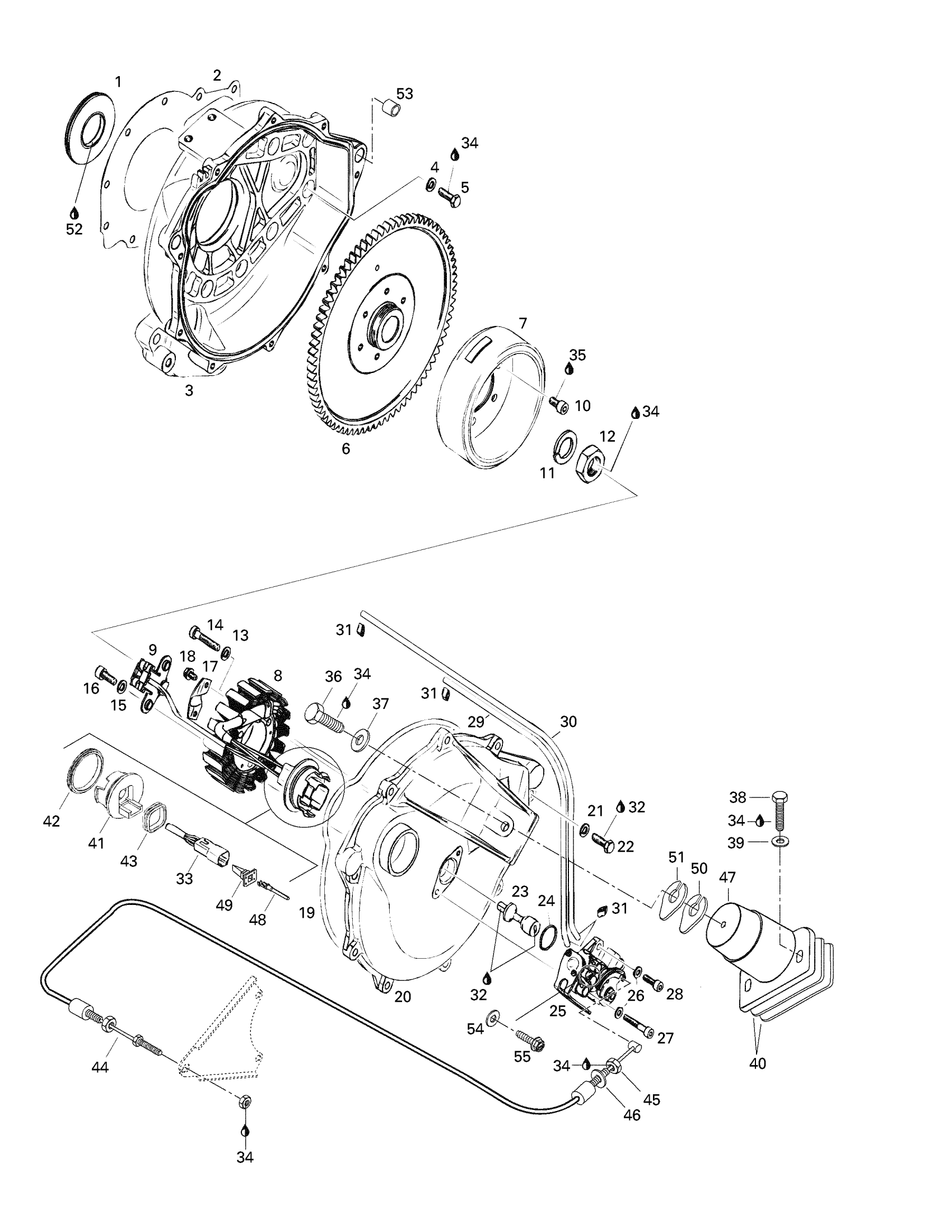

Sea-doo Challenger 1800, 5600/5601, 1997 03- Magneto, Oil Pump Diagram
#
1
Oil Seal This part replaces 290830749.
420830749
$18.54
2
Gasket
290931470
Unavailable
3
Ignition Housing (White)
290810711
Unavailable
4
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
5
Hex. Screw M6 X 25
207162544
$1.15
6
Flywheel Hub
290966442
Unavailable
7
MAGNETO FLYWHEEL - Call your local BRP dealership
290886598
Unavailable
8
STATOR PLATE ASS'Y - Call your local BRP dealership
290886588
Unavailable
9
Sensor Ass'y
420966832
$184.99
10
Socket Head Screw M6 X 12
205061260
$1.58
11
Lock Washer 18 mm
290945757
Unavailable
12
HEX. NUT M18 - Call your local BRP dealership
420942220
Unavailable
13
Lock Washer
290445330
Unavailable
14
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
420840887
Unavailable
15
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
16
Socket Head Screw M6 x 16
420241237
$2.22
17
Retainer Plate
290853080
Unavailable
18
Hex. Screw M5 x 8
215050848
Unavailable
19
O-RING - Call your local BRP dealership This part replaces 290950360.
420950360
Unavailable
20
Ignition Cover
290810721
Unavailable
21
Lock Washer 6 mm
290845381
Unavailable
22
Hex. Screw M6 x 25
290240038
Unavailable
23
Shaft Oil Pump
290837330
Unavailable
24
O-RING - Call your local BRP dealership
293300018
Unavailable
25
PUMP-OIL ASSY. - Call your local BRP dealership This part replaces 290887333.
420887333
$234.99
26
Lock Washer
290845389
Unavailable
27
Socket Head Screw M5 x 30
290940883
Unavailable
28
Cylindrical Slotted Screw M5 x 16
215951660
Unavailable
29
Oil Hose 1500Mm Long
219704404
$17.26
30
Oil Hose 1500Mm Long
219704404
$17.26
31
Clamp
290256408
Unavailable
32
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
33
Male Terminal Housing, 6 Circuits
710001539
$19.99
34
Loctite 243, 10 ml
293800060
$21.49
35
Sealant Loctite 648
219703000
$45.99
36
Hex. Screw M8 X 18
207181860
$1.48
37
Flat Washer 8 mm, Stainless
234082600
$2.43
38
Hex. Screw M8 X 40
207184060
$2.22
39
Stainless, Flat Washer 8 mm
234081600
$0.55
40
Shim 0.4 mm
270000006
Unavailable
Shim 1.3 mm
270000007
Unavailable
41
Adaptor
270000138
Unavailable
42
Gasket
293300033
Unavailable
43
Gasket
293200030
Unavailable
44
Injection Cable Ass'y
270000214
Unavailable
45
Hex. Nut M6
232160600
$1.15
46
Lock Washer Helical M6
234161601
$1.15
47
Rubber Mount
270000297
Unavailable
48
Male Terminal
278000631
$4.39
49
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
50
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
51
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
52
Dow Corning 111, 150 g
413707000
$59.99
53
Dowel Tube
290229153
Unavailable
54
Packing
270500304
Unavailable
55
Screw-Ventilation
270500305
Unavailable
56
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886395
Unavailable
57
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886390
Unavailable
