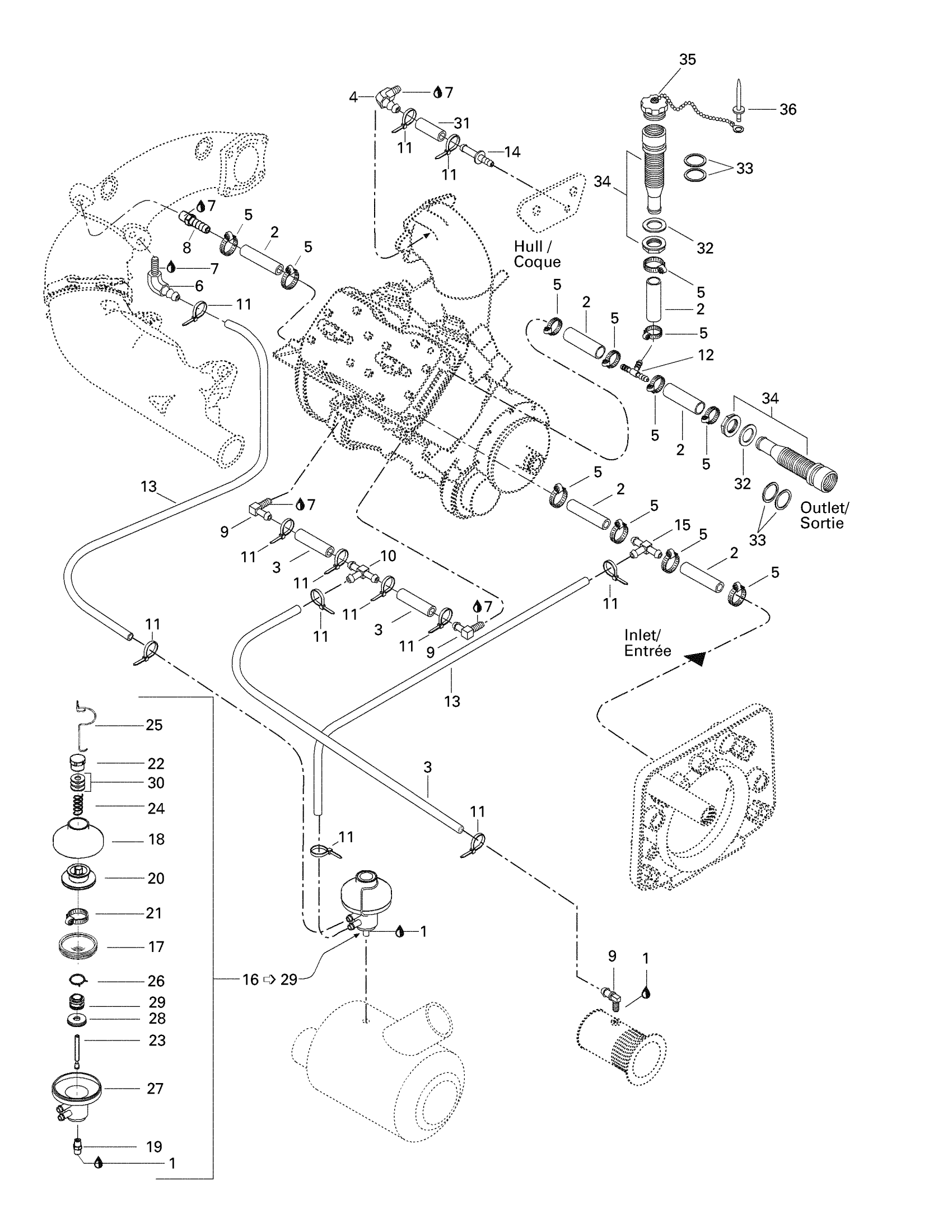

Sea-doo Challenger 1800, 5600/5601, 1997 Cooling System Diagram

#

Description
Price

1

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

2

Was 276000001 Hose 12.5 mm

219704394

$51.99

3

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

4

Elbow Fitting 90°

293710018

Unavailable

5

Tridon Gear Clamp

293650172

$3.09

6

Elbow Fitting 90°

293710048

Unavailable

7

Was 293800013 Loctite 56765

219704454

$65.99

8

Male Connector | With Catalyst

293710021

$14.23

9

Elbow Fitting

293700016

Unavailable

10

T-FITTING - Call your local BRP dealership

293710061

Unavailable

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

12

T-FITTING - Call your local BRP dealership

293710053

Unavailable

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

15

T-FITTING - Call your local BRP dealership

293710052

$12.70

16

PRESURE REGULATOR ASS'Y - Call your local BRP dealership | Includes 22 - 34.

274000576

Unavailable

17

Bellow

420260721

$51.99

18

Valve Cover

420911552

$38.99

19

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

20

EXHAUST VALVE - Call your local BRP dealership

420253255

Unavailable

21

Rivalair Clamp

293650065

Unavailable

22

Adjuster Screw

420241221

$14.22

23

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

24

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

25

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

26

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Flat Washer

213200017

Unavailable

31

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

32

WASHER - Call your local BRP dealership

293050003

Unavailable

33

GASKET - Call your local BRP dealership

293250028

Unavailable

34

Fitting

293710063

Unavailable

35

PLUG - Call your local BRP dealership

293000055

Unavailable

36

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable
