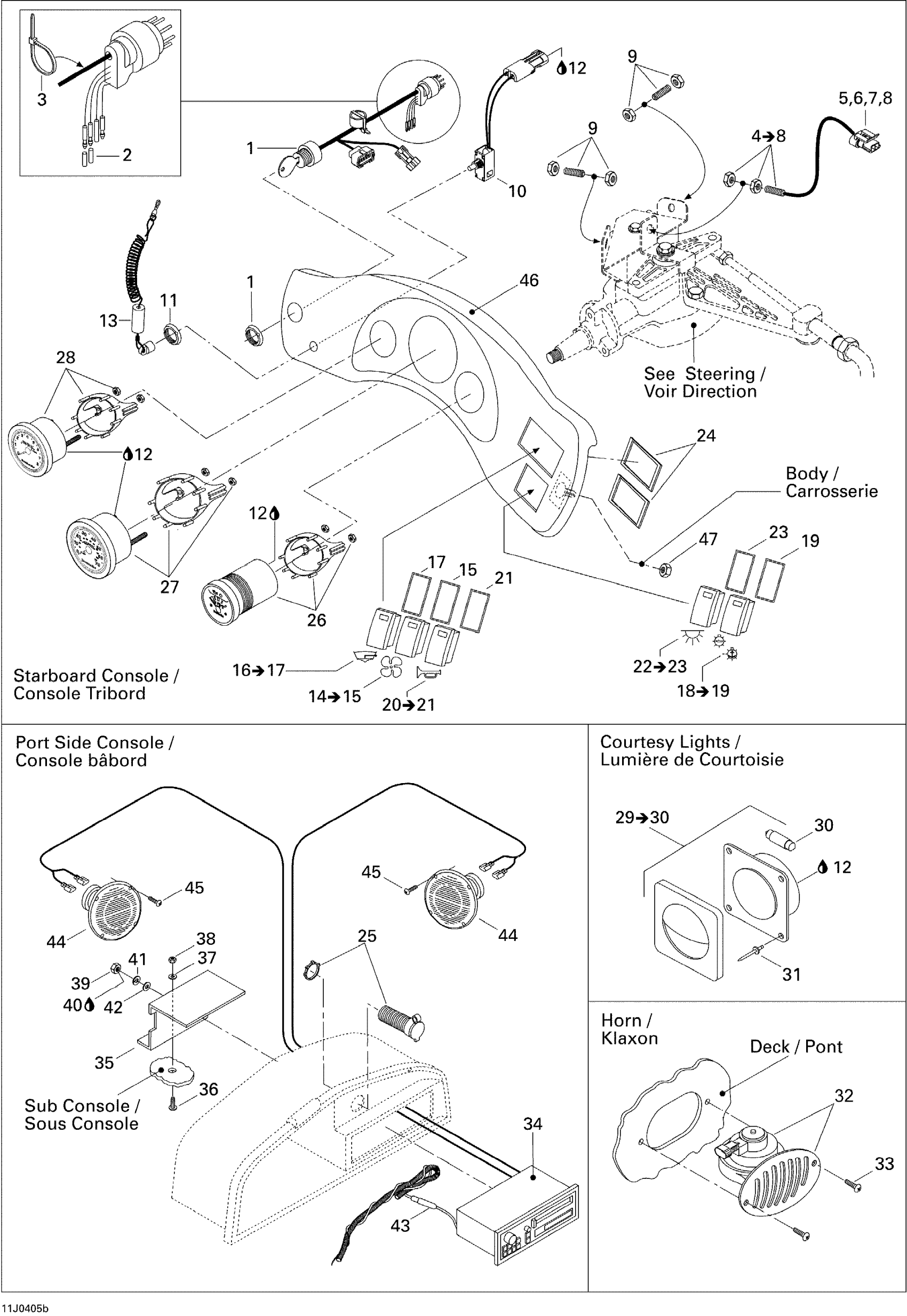

Sea-doo Challenger 1800, 240 ER, 2004 Electrical Accessories 2 Diagram

#

Description
Price

1

Instrument Harness, Mercury

204470800

Unavailable

2

RUBBER CAP - Call your local BRP dealership

204130033

Unavailable

3

Tie Wrap 94 mm | 4X4

293750001

$1.03

4

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

5

Female Terminal Housing

204470634

Unavailable

6

Terminal Support

204470635

Unavailable

7

Wire Seal

204470641

Unavailable

8

Female Terminal

278001481

$3.49

9

Low Speed Control Actuator

204470632

$42.99

10

SAFETY SWITCH ASS'Y - Call your local BRP dealership | Includes 10 to 13

204470867

Unavailable

11

Safety Switch Nut

278000099

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Safety Lanyard

278001431

$47.49

14

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

15

Gasket

204470132

Unavailable

16

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

17

Gasket

204470132

Unavailable

18

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

19

Gasket

204470132

Unavailable

20

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

21

Gasket

204470132

Unavailable

22

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

23

Gasket

204470132

Unavailable

24

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

25

DC Outlet

710001248

$37.99

26

Oil/Fuel Gauge

204470806

Unavailable

27

Speedometer Gauge

204470805

Unavailable

28

Tachometer Gauge

204470807

Unavailable

29

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

30

BULB - Call your local BRP dealership

204470081

Unavailable

31

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

32

HORN - Call your local BRP dealership

204470801

Unavailable

33

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

34

Compact Disk Radio

204470869

Unavailable

35

Radio Support

204470688

Unavailable

36

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.77

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Hex. Nut M5

232051600

$1.15

40

Loctite 243, 10 ml

293800060

$21.49

41

Helical Lock Washer M5

234151601

$1.15

42

Flat Washer 5 mm, Stainless

234052600

$0.77

43

Antenna

204470380

Unavailable

44

Speaker

204470378

Unavailable

45

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

46

Fascia

204470767

Unavailable

47

Hex. Elastic Nut M8

232581600

$1.48
