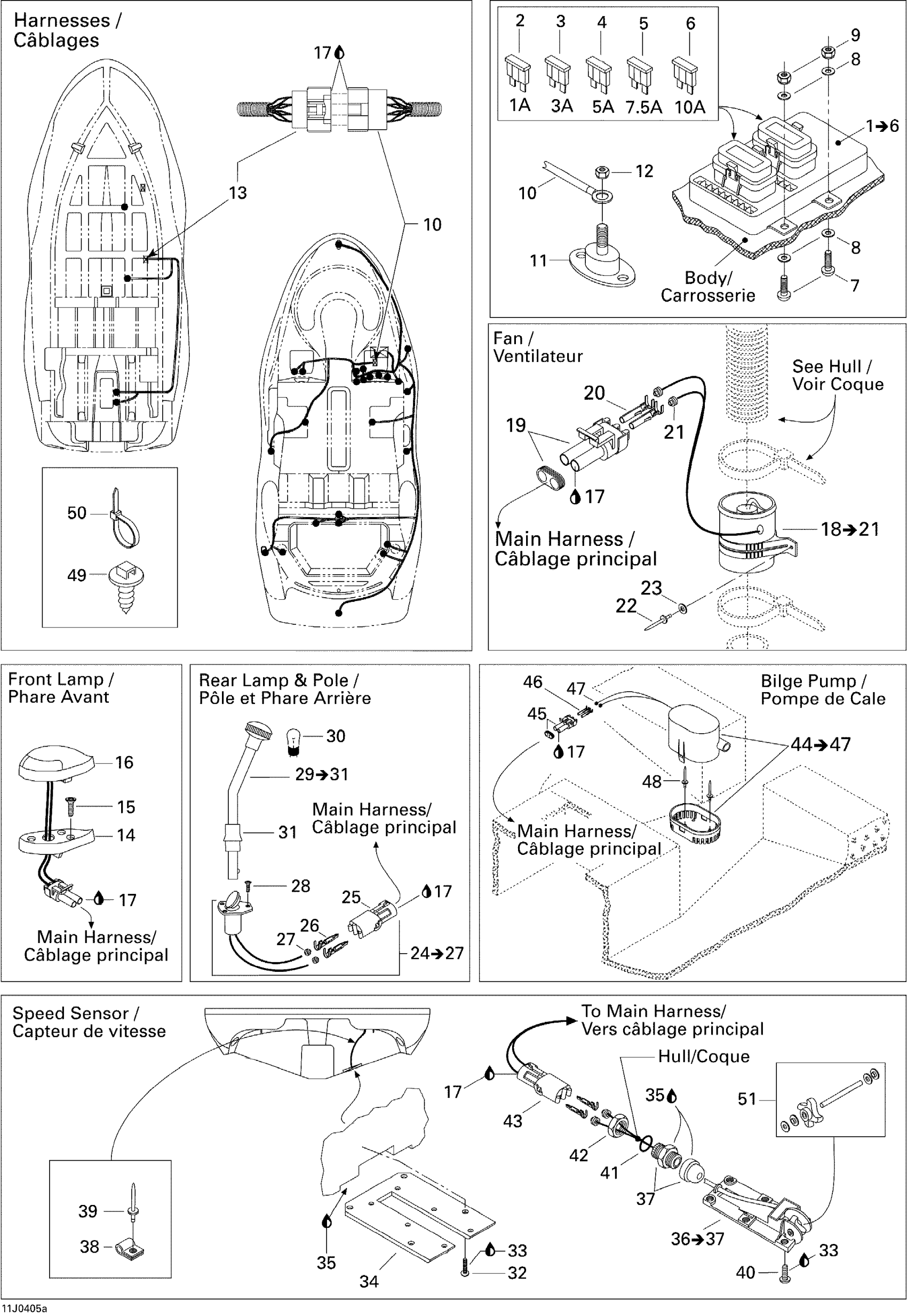

Sea-doo Challenger 1800, 240 ER, 2004 Electrical Accessories 1 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

2

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.77

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Main Harness, Challenger 1800

204470834

Unavailable

11

Ground Post

204470715

Unavailable

12

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

13

Instrument Harness, Mercury

204470800

Unavailable

14

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

15

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

16

Front Lamp

204470311

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Fan Ass'y | Includes 44 to 47

204470108

$144.99

19

Male Connector, 2 Circuits

278000220

$15.49

20

Female Terminal

278000223

$3.19

21

Wire Seal

278000218

$4.39

22

Pop Rivet 3/16"

293150008

$0.50

23

Flat Washer 5 mm, Stainless

234052600

$0.77

24

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

25

Female Housing, 2 Circuits

278000217

$9.59

26

Male Terminal | XT Models

278000222

$3.19

27

Wire Seal

278000218

$4.39

28

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

29

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

30

Bulb

204470053

Unavailable

31

COLLAR - Call your local BRP dealership

204470350

Unavailable

32

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

33

Loctite 243, 10 ml

293800060

$21.49

34

Sensor Support

204470538

Unavailable

35

Silicone Sealant 51388, 300 ml

296000309

$36.99

36

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

37

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

38

Cable Clamp 3/16”

204100026

Unavailable

39

Pop Rivet 3/16"

293150088

$0.99

40

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

41

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

42

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

43

Female Housing, 2 Circuits

278000217

$9.59

44

Bilge Pump

204471431

Unavailable

45

Male Connector, 2 Circuits

278000220

$15.49

46

Female Terminal

278000223

$3.19

47

Wire Seal

278000218

$4.39

48

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

49

Mount Dart

293730040

$1.04

50

Tie-Rap 180 mm

414115200

$0.11

51

Paddle Wheel Kit

295500108

Unavailable
