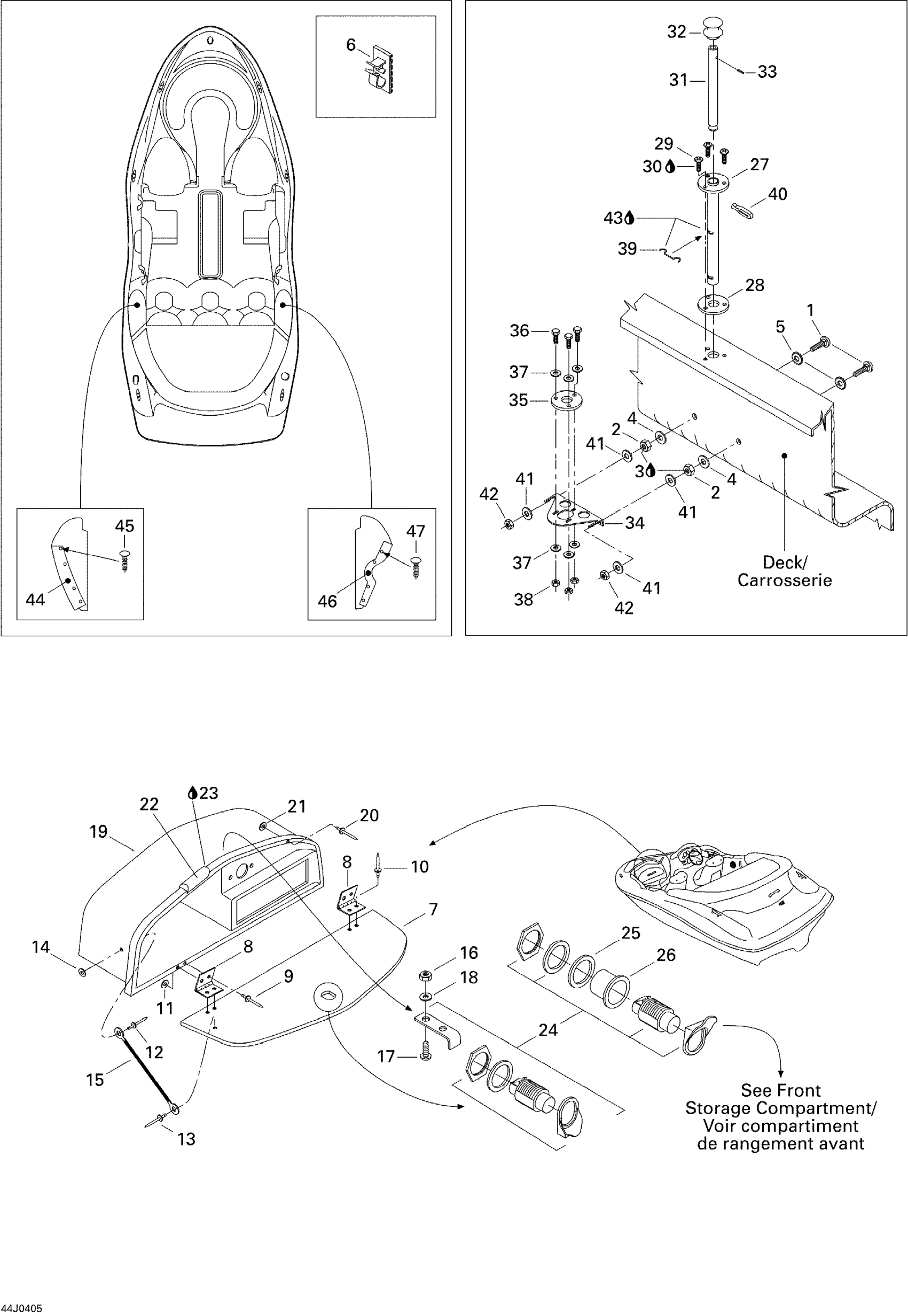

Sea-doo Challenger 1800, 240 ER, 2004 Ski Shaft and Glove Box Diagram

#

Description
Price

1

Elevator Bolt

204000130

Unavailable

2

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

3

Loctite 271, 10 ml

293800005

Unavailable

4

Flat Washer M6, Stainless

234062600

Unavailable

5

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

6

Clip Cable

414839700

Unavailable

7

Tray Door Ass'y

204071891

Unavailable

8

HINGE - Call your local BRP dealership

204071462

Unavailable

9

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

10

Pop Rivet 1/8”

293150063

Unavailable

11

Flat Washer M3, Stainless

234032600

Unavailable

12

Pop Rivet 3/16"

293150008

Unavailable

13

Pop Rivet 3/16"

293150043

Unavailable

14

Flat Washer 5 mm, Stainless

234052600

Unavailable

15

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

16

Elastic Stop Nut M4

232541600

Unavailable

17

Phillips Screw M4 X 12

208641260

Unavailable

18

Flat Washer 4 mm

234040600

Unavailable

19

Glove Box

204070392

Unavailable

20

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

21

Flat Washer M3, Stainless

234032600

Unavailable

22

Neoprene, Meter

204070115

Unavailable

23

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

24

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

25

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

26

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable

27

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

28

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

29

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

30

Loctite 243, 10 ml

293800060

Unavailable

31

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

32

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

33

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

34

Fixation Plate

291001059

Unavailable

35

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

36

Hex. Forming Screw M6 X 20

207162060

Unavailable

37

Flat Washer M6, Stainless

234062600

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

Unavailable

39

SPRING - Call your local BRP dealership

291001205

Unavailable

40

Windshield Latch

570023800

Unavailable

41

Flat Washer M6, Stainless

234062600

Unavailable

42

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

43

Synthetic Grease, 400 G

293550010

Unavailable

44

Soundwall Seal, Port Side

204070661

Unavailable

45

Black, Dart

293730006

Unavailable

46

Soundwall Seal, Starboard

204070662

Unavailable

47

Black, Dart

293730006

Unavailable
