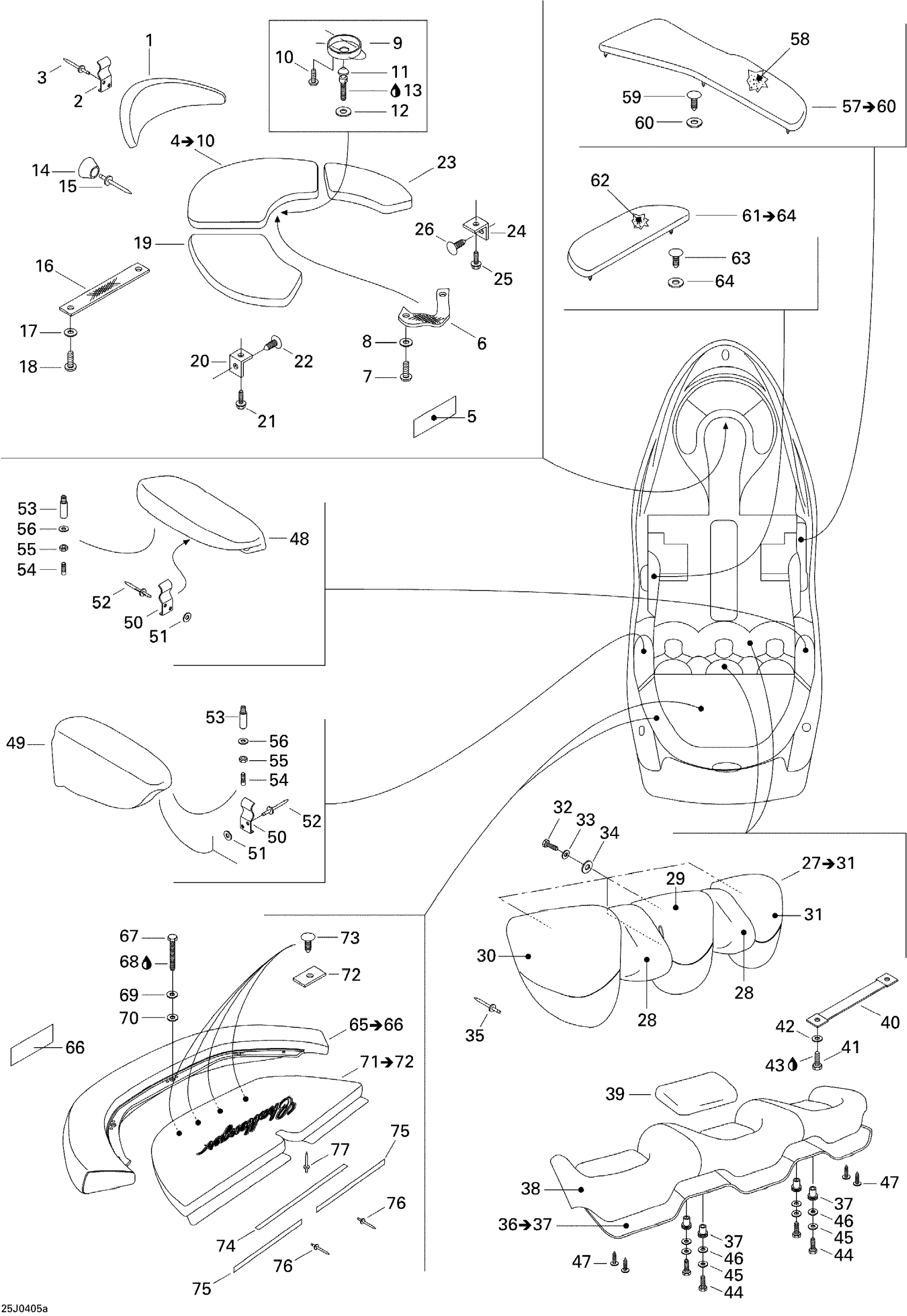

Sea-doo Challenger 1800, 240 ER, 2004 Seat (Front and Rear) Diagram

#

Description
Price

1

Front Backrest Ass'y

204612175

Unavailable

2

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

3

Pop Rivet 3/16"

293150043

$2.09

4

Center Front Seat Ass'y | Includes 4 to 10

204612411

Unavailable

5

Staple Cover, Meter

204610184

Unavailable

6

Strap

204610963

Unavailable

7

Screw K40 X 10

241140060

$1.48

8

Flat Washer 4 mm, Stainless

234042600

$1.15

9

Front Seat Latch

204610178

Unavailable

10

Socket Head Screw M4 X 16

205441660

$1.47

11

Seat Stud

204610207

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Loctite 243, 10 ml

293800060

$21.49

14

Rubber Stopper

293830043

Unavailable

15

Pop Rivet 3/16"

293150013

$1.37

16

Strap

204610963

Unavailable

17

Flat Washer 4 mm, Stainless

234042600

$1.15

18

Screw K40 X 10

241140060

$1.48

19

LH Front Seat Ass'y

204612693

Unavailable

20

SEAT BRACKET - Call your local BRP dealership

204610100

Unavailable

21

Screw K40 X 10

241140060

$1.48

22

Black, Dart

293730006

$0.99

23

RH Front Seat Ass'y

204612694

Unavailable

24

SEAT BRACKET - Call your local BRP dealership

204610100

Unavailable

25

Screw K40 X 10

241140060

$1.48

26

Black, Dart

293730006

$0.99

27

Rear Backrest Ass'y | Includes 27 to 31

204612692

Unavailable

28

Bump Cover

204612699

Unavailable

29

Backrest Cover, Silver Metallic

204612205

Unavailable

30

RH Backrest Cover, Silver Metallic

204612206

Unavailable

31

LH Backrest Cover, Silver Metallic

204612207

Unavailable

32

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

33

Flat Washer M6, Stainless

234062600

$0.77

34

Flat Washer 8 mm, Stainless

234082600

$2.43

35

RIVET - Call your local BRP dealership

293150065

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Anchor Washer

204100005

Unavailable

38

Rear Seat Cover, Off White

204612209

Unavailable

39

Rear Seat Cushion, Silver Metallic

204612210

Unavailable

40

Rear Seat Strap, Off White

204612212

Unavailable

41

Hex. Screw M6 X 16

207161660

$1.59

42

Flat Washer M6, Stainless

234062600

$0.77

43

Loctite 243, 10 ml

293800060

$21.49

44

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

45

Flat Washer M6, Stainless

234062600

$0.77

46

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

47

Dart

293730021

$7.79

48

RH Armrest Ass'y

204612213

Unavailable

49

LH Armrest Ass'y

204612215

Unavailable

50

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

51

Stainless Flat Washer M6

234061600

$0.33

52

Pop Rivet 3/16"

293150043

$2.09

53

Threaded Rod M5, Scotch Grip

204130015

Unavailable

54

Socket Set Screw M5 X 40, Scotch Grip

206254069

Unavailable

55

Hex. Elastic Nut M5 | X

232551600

$1.15

56

Flat Washer 5 mm, Stainless

234052600

$0.77

57

RH Elbow Padding Ass'y | Includes 57 to 60

204612217

Unavailable

58

Neoprene Foam

204610121

Unavailable

59

Black, Dart

293730006

$0.99

60

Flat Washer M6, Stainless

234062600

$0.77

61

LH Elbow Padding Ass'y | Includes 61 to 64

204612219

Unavailable

62

Neoprene Foam

204610123

Unavailable

63

Black, Dart

293730006

$0.99

64

Flat Washer M6, Stainless

234062600

$0.77

65

Rear Spoiler Ass'y | Includes 65 to 66

204612233

Unavailable

66

Staple Cover, Meter

204610184

Unavailable

67

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

68

Loctite 243, 10 ml

293800060

$21.49

69

Flat Washer M6, Stainless

234062600

$0.77

70

Flat Washer 10 mm, Stainless

234002600

$2.22

71

Platform Ass'y | Includes 71 to 72

204612691

Unavailable

72

Strap

204610194

Unavailable

73

Black, Dart

293730006

$0.99

74

Velcro 25 Mm X 940 Mm

204611298

Unavailable

75

Velcro 25 Mm X 635 Mm

204611299

Unavailable

76

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

77

Pop Rivet 3/16"

293150008

$0.50
