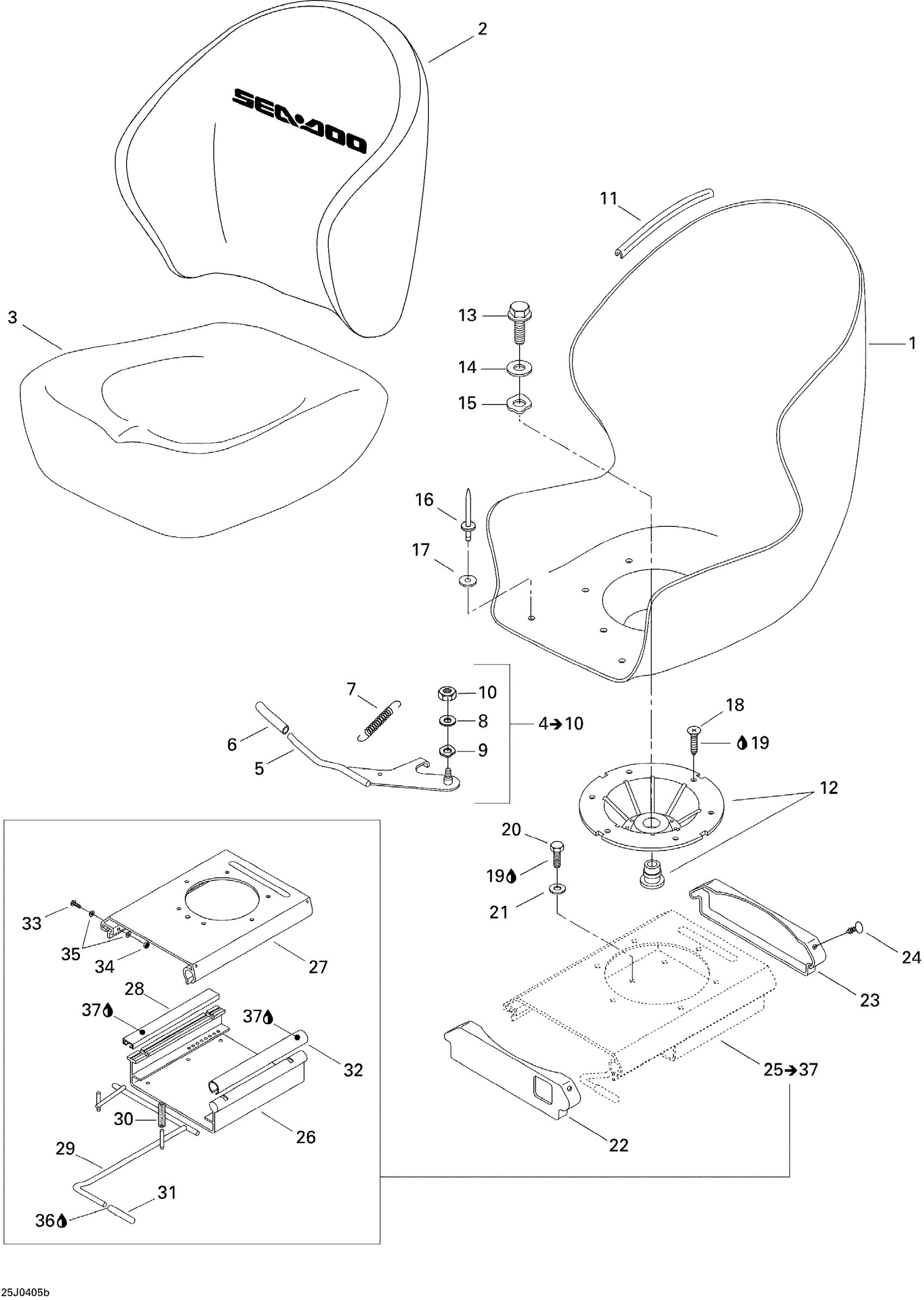

Sea-doo Challenger 1800, 240 ER, 2004 Seat (Driver and Passenger) Diagram

#

Description
Price

1

Seat Base

204611146

Unavailable

2

Backrest Cushion (Silver Metallic)

295501064

Unavailable

3

Seat Cushion

204612695

Unavailable

4

Lever Arm Ass’y

204610523

Unavailable

5

Lever Arm

204610524

Unavailable

6

Handle

204610348

Unavailable

7

SPRING - Call your local BRP dealership

204610349

Unavailable

8

Stainless Flat Washer M6

234061600

$0.33

9

Washer

211200059

Unavailable

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

12

SWIVEL PLATE - Call your local BRP dealership

204610513

Unavailable

13

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

14

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

15

WASHER - Call your local BRP dealership

293200056

Unavailable

16

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

17

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

18

PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

208561660

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Hex. Screw M6 X 35

207163560

$1.49

21

Flat Washer M6, Stainless

234062600

$0.77

22

Front Protector

204610375

Unavailable

23

Rear Protector

204610376

Unavailable

24

Black, Dart

293730006

$0.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Lower Part

269500636

Unavailable

27

Upper Part

269500637

Unavailable

28

Rectangular Bushing

269500638

Unavailable

29

Rod Ass'y

269500639

Unavailable

30

Spring

269500640

Unavailable

31

Handle

204610348

Unavailable

32

Circle Bushing

269500642

Unavailable

33

Hex. Screw M6 X 50

207065060

$2.22

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

Stainless Flat Washer M6

234061600

$0.33

36

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

37

Synthetic Grease, 400 G

293550010

Unavailable
