09- Lower Hull and Ladder

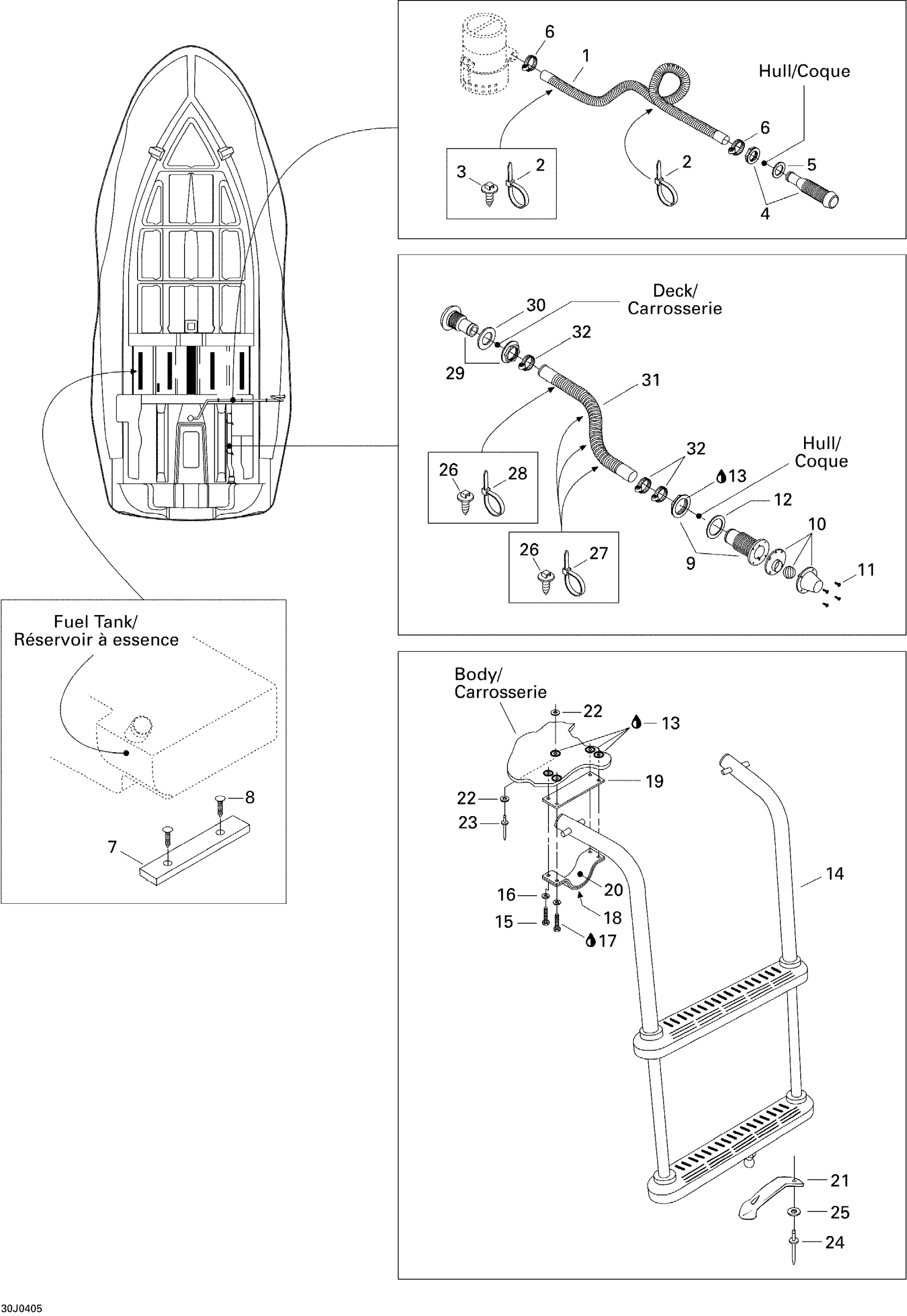

Sea-doo Challenger 1800, 240 ER, 2004 09- Lower Hull and Ladder Diagram
#
Description
Price
1
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
2
Tie-Rap 180 mm
414115200
$0.11
3
Mount Dart
293730040
$1.04
4
Fitting
293710162
$13.49
5
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
6
Tridon Clamp
293650016
$10.99
7
Rubber Pad
204060701
Unavailable
8
Black, Dart
293730006
$0.99
9
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
10
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
11
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
12
GASKET - Call your local BRP dealership
292800106
Unavailable
13
Silicone Sealant 51388, 300 ml
296000309
$36.99
14
Ladder Ass'y
204060612
Unavailable
15
Hex. Screw M6 X 35
207163560
$1.49
16
Lock Washer Helical M6
234161601
$1.15
17
Loctite 243, 10 ml
293800060
$21.49
18
LADDER CLIP - Call your local BRP dealership
204060055
Unavailable
19
PROTECTOR 97 - Call your local BRP dealership
204060057
Unavailable
20
PROTECTOR 158 - Call your local BRP dealership
204060056
Unavailable
21
Hood Latch
570027100
$13.49
22
Flat Washer M6, Stainless
234062600
$0.77
23
Pop Rivet 3/16"
293150043
$2.09
24
Pop Rivet 3/16"
293150013
$1.37
25
Flat Washer 5 mm, Stainless
234052600
$0.77
26
Mount Dart
293730040
$1.04
27
Tie-Rap 180 mm
414115200
$0.11
28
Tie Wrap 368 mm
293750008
$1.04
29
FITTING - Call your local BRP dealership
293710060
Unavailable
30
GASKET - Call your local BRP dealership
292800106
Unavailable
31
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
32
Norma Clamp
293650074
$17.05
