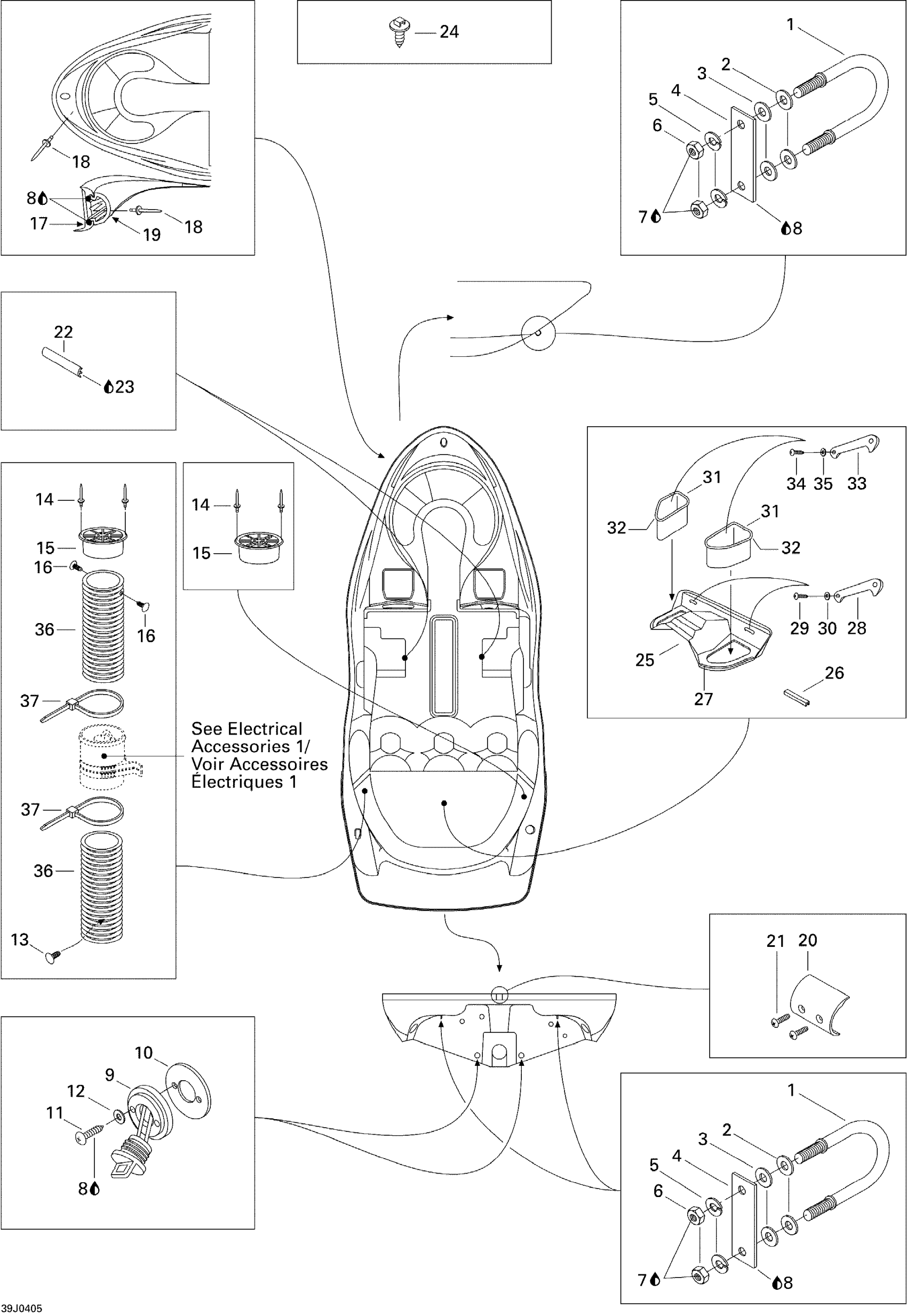

Sea-doo Challenger 1800, 240 ER, 2004 Hull Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
Unavailable
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
Unavailable
6
Hex. Nut M8
232081600
Unavailable
7
Loctite 271, 10 ml
293800005
Unavailable
8
Silicone Sealant 51388, 300 ml
296000309
Unavailable
9
Drain Plug
292000187
Unavailable
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
Unavailable
13
Black, Dart
293730006
Unavailable
14
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
15
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
16
Black, Dart
293730006
Unavailable
17
Bumper, Metallic Pewter
291000903
Unavailable
18
Pop Rivet 3/16"
293150013
Unavailable
19
Bumper Trim, Metallic Pewter
291000904
Unavailable
20
BUMPER COVER - Call your local BRP dealership
291000905
Unavailable
21
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
22
TRIM, WHITE - Call your local BRP dealership
204050048
Unavailable
23
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
24
Mount Dart
293730040
Unavailable
25
Accessories Cover
204050422
Unavailable
26
Trim, Meter
204050213
Unavailable
27
Seal Tray 1000Mm Long
219704368
Unavailable
28
Black, Handle - Call your local BRP dealership
204050159
Unavailable
29
Hex. Flange Screw K40 X 16
241141660
Unavailable
30
Flat Washer 4 mm, Stainless
234042600
Unavailable
31
LH Storage Basket
204050210
Unavailable
31
RH Storage Basket
204050212
Unavailable
32
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
33
Black, Handle - Call your local BRP dealership
204050159
Unavailable
34
Hex. Flange Screw K40 X 16
241141660
Unavailable
35
Flat Washer 4 mm, Stainless
234042600
Unavailable
36
Was 204050122 Vent Hose 4"
219704358
Unavailable
37
Tie Wrap 368 mm
293750008
Unavailable
