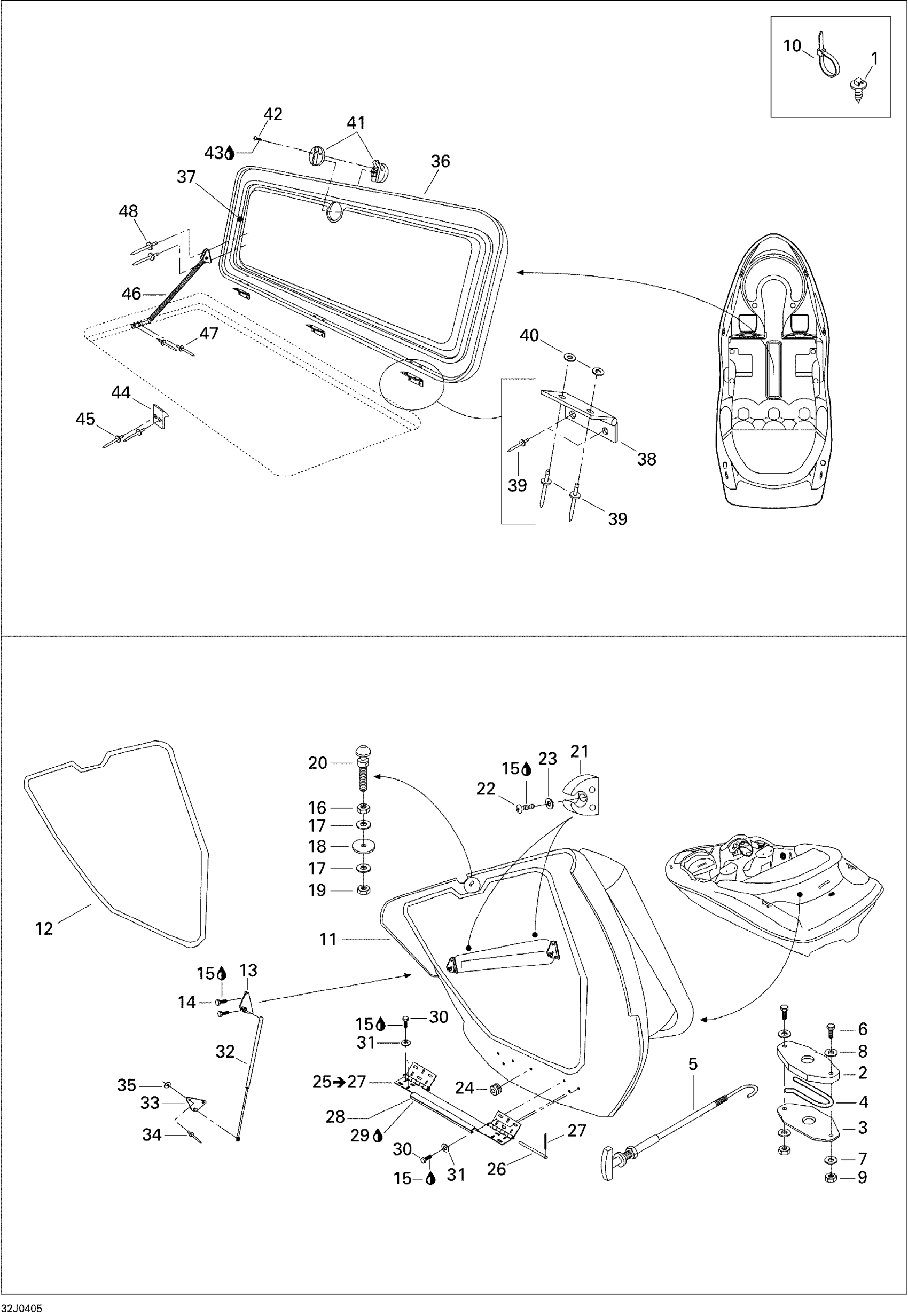

Sea-doo Challenger 1800, 240 ER, 2004 Engine Compartment and Central Cover Diagram

#

Description
Price

1

Mount Dart

293730040

$0.86

2

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

3

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

4

SPRING - Call your local BRP dealership

204070038

Unavailable

5

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

6

Hex. Screw M6 X 35

207163560

$1.17

7

Flat Washer M6, Stainless

234062600

$0.64

8

Stainless Flat Washer M6

234061600

$0.25

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Tie Wrap 368 mm

293750008

$0.85

10

Tie-Rap 180 mm

414115200

$0.09

11

Engine Cover

204071984

Unavailable

12

Was 293200017 Neoprene Seal

219704365

$118.27

13

Shock Bracket

204073074

$21.42

14

Hex. Screw M4 X 16 | Europe

207141660

$1.22

15

Loctite 243, 10 ml

293800060

$20.77

16

Hex. Jam Nut M10

232100600

$1.85

17

Flat Washer 10 mm, Stainless

234002600

$1.85

18

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

19

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

20

Latch Stud

204100065

Unavailable

21

Pole Support

291000642

Unavailable

22

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

23

Flat Washer 4 mm

234040600

$0.46

24

GROMMET - Call your local BRP dealership

293720017

Unavailable

25

Covering Plate Ass'y | Includes 25 to 27

204072006

Unavailable

26

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

27

Cotter Pin M2.5 X 12

204070205

Unavailable

28

BLACK TRIM, METER - Call your local BRP dealership

204070055

Unavailable

29

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

30

Hex. Screw M6 X 25

207162560

$1.22

31

Stainless Flat Washer M6

234061600

$0.25

32

Gas Shock, Port Side

204072013

Unavailable

32

GAS SHOCK - Call your local BRP dealership | Port Side

204071964

Unavailable

33

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

34

Pop Rivet 3/16"

293150043

$1.61

35

Flat Washer M5, Stainless

234051600

$0.64

36

Center Cover

204072025

Unavailable

37

Seal Tray 1000Mm Long

219704368

$12.30

38

HINGE - Call your local BRP dealership

204072601

Unavailable

39

Pop Rivet 3/16"

293150088

$0.91

40

Flat Washer M5, Stainless

234051600

$0.64

41

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

42

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

43

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

44

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

45

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

46

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

47

Pop Rivet 3/16"

293150043

$1.61

48

RIVET_POP 3/16 - Call your local BRP dealership

293150055

Unavailable
