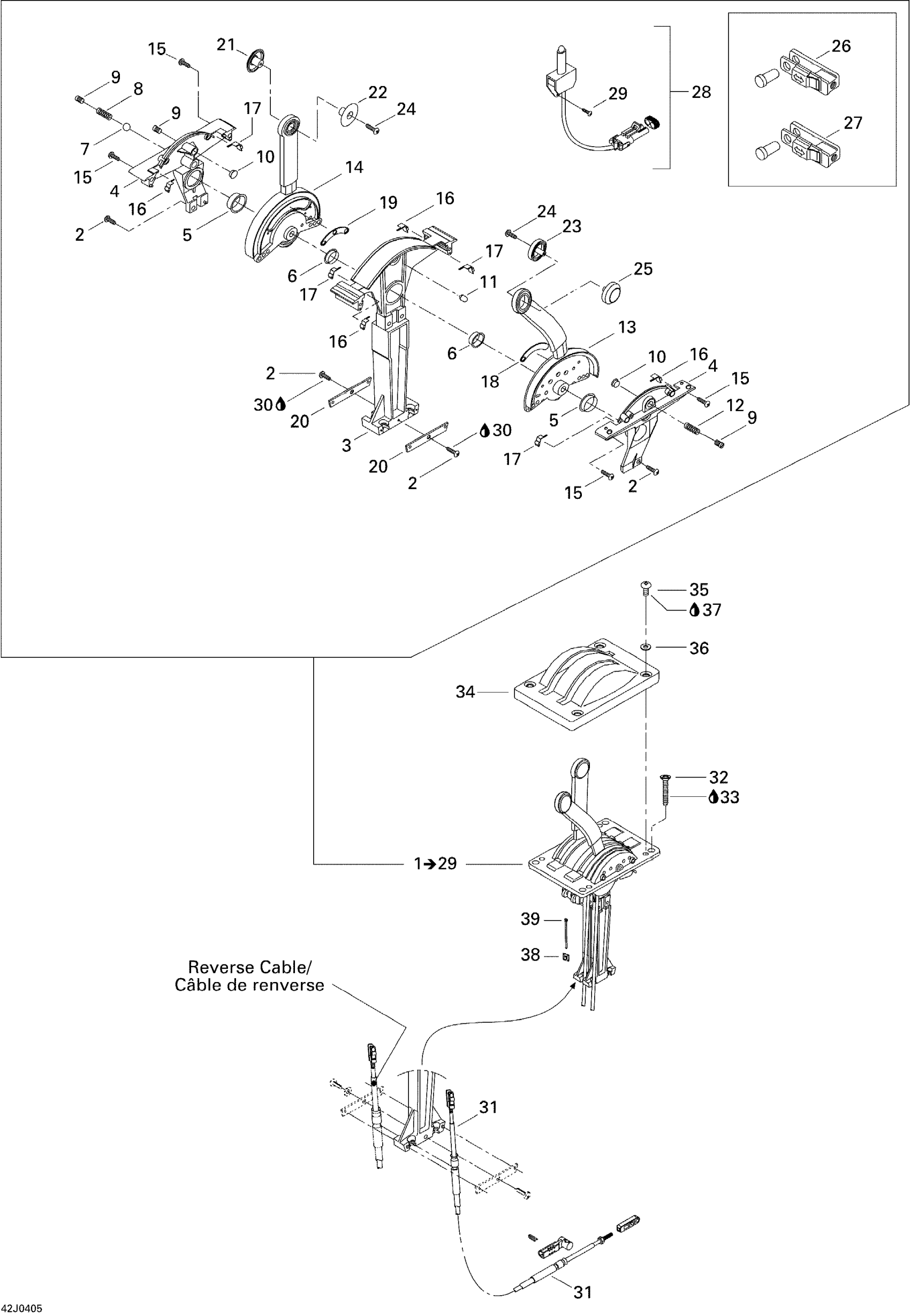

Sea-doo Challenger 1800, 240 ER, 2004 05- Control Handle Diagram

#

Description
Price

1

Ultraflex Control Ass'y | Includes 18 to 46

204390377

$1.00

2

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

3

LH Frame

204390378

Unavailable

4

Half-Case

277000703

Unavailable

5

BUSHING - Call your local BRP dealership

277000397

Unavailable

6

BUSHING - Call your local BRP dealership

277000398

Unavailable

7

BALL - Call your local BRP dealership

277000399

Unavailable

8

SPRING - Call your local BRP dealership

277000400

Unavailable

9

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

10

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

11

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

12

SPRING - Call your local BRP dealership

277000401

Unavailable

13

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

14

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

15

SCREW M5 X 20 - Call your local BRP dealership

204100016

Unavailable

16

RH Water Seal

277000423

Unavailable

17

LH Water Seal

277000424

Unavailable

18

THROTTLE LEVER SPACER - Call your local BRP dealership

277000659

Unavailable

19

Shift Lever Spacer

277000408

Unavailable

20

RETAINING PLATE - Call your local BRP dealership

204390227

Unavailable

21

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

22

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

23

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

24

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

25

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

26

CLEVIS L26 - Call your local BRP dealership | Not Shown

204390226

Unavailable

27

CLEVIS L25 - Call your local BRP dealership

204390225

Unavailable

28

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

29

SCREW M3 X 6 - Call your local BRP dealership

208630660

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Throttle Cable

204390211

Unavailable

32

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

33

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

34

Control Cover

204390123

Unavailable

35

Phillips Screw M4 X 10

208641060

$1.01

36

Flat Washer 4 mm

234040600

$0.55

37

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

38

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

39

Tie Wrap 94 mm | 4X4

293750001

$1.03
