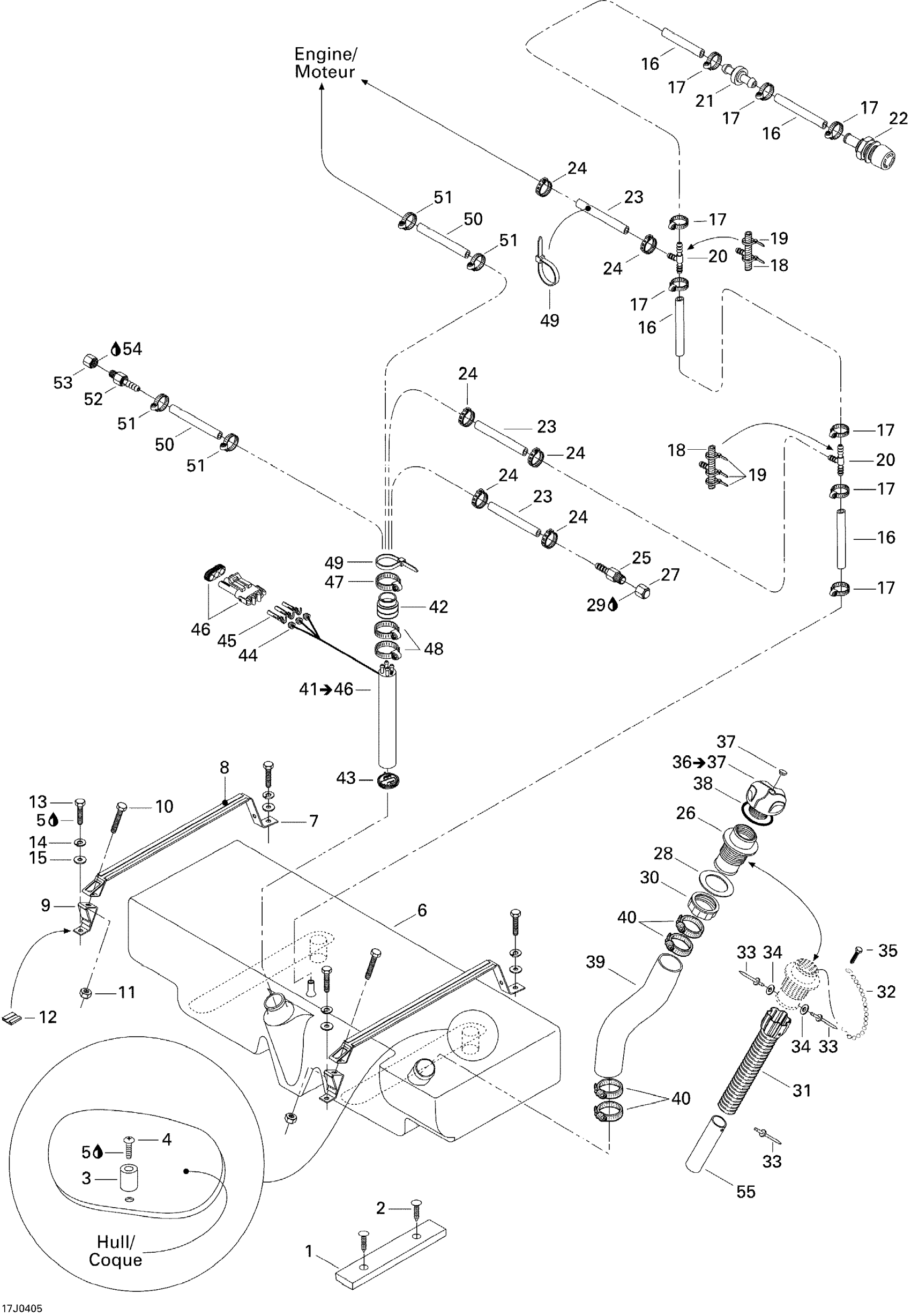

Sea-doo Challenger 1800, 240 ER, 2004 Fuel System Diagram

#

Description
Price

1

Rubber Pad

204060701

Unavailable

2

Black, Dart

293730006

Unavailable

3

Rubber Bumper

204560039

Unavailable

4

Phillips Screw M5 X 35

208653560

Unavailable

5

Loctite 271, 10 ml

293800005

Unavailable

6

Fuel Tank, Plastic

204560073

Unavailable

7

Fuel Tank Strap

204560189

Unavailable

8

Protector Pad

204560037

Unavailable

9

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

10

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

11

Hex. Elastic Nut M8

232581600

Unavailable

12

Protecteur Pad

204560027

Unavailable

13

Hex. Screw M8 X 30

207183060

Unavailable

14

Lock Washer 8 mm, Stainless

234181601

Unavailable

15

Flat Washer 8 mm, Stainless

234082600

Unavailable

16

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

17

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Tie-Rap 180 mm

414115200

Unavailable

20

T-Fitting

204560038

Unavailable

21

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

22

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

23

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

24

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

25

COUPLER - Call your local BRP dealership

204560265

Unavailable

26

Filler Neck

275500247

Unavailable

27

Pipe Cap

204560263

Unavailable

28

Gasket

293250029

Unavailable

29

Was 293800013 Loctite 56765

219704454

Unavailable

30

Filler Neck Nut, Fuel

211100012

Unavailable

31

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

32

Oil Cap Chain

275500015

Unavailable

33

Rivet 1/8”

293150057

Unavailable

34

Flat Washer M3, Stainless

234032600

Unavailable

35

Screw K40 X 10

241140060

Unavailable

36

Fuel Tank Cap, Black | Includes 26 to 27

275500430

Unavailable

37

Black, Snap Cap

293000034

Unavailable

38

Gasket

293250017

Unavailable

39

NECK FILLER HOSE - Call your local BRP dealership

219700374

Unavailable

40

Norma Clamp

293650081

Unavailable

41

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

42

Fuel Tube Adaptor

204560066

Unavailable

43

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

44

Wire Seal

278000218

Unavailable

45

Female Terminal

278000223

Unavailable

46

Male Housing, 3 Circuits

278000273

Unavailable

47

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

48

Norma Clamp

293650081

Unavailable

49

Tie-Rap 180 mm

414115200

Unavailable

50

Hose 5/16”, Meter

204560177

Unavailable

51

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

52

Hose Fitting

204560264

Unavailable

53

Pipe Cap

204560263

Unavailable

54

Was 293800013 Loctite 56765

219704454

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable
