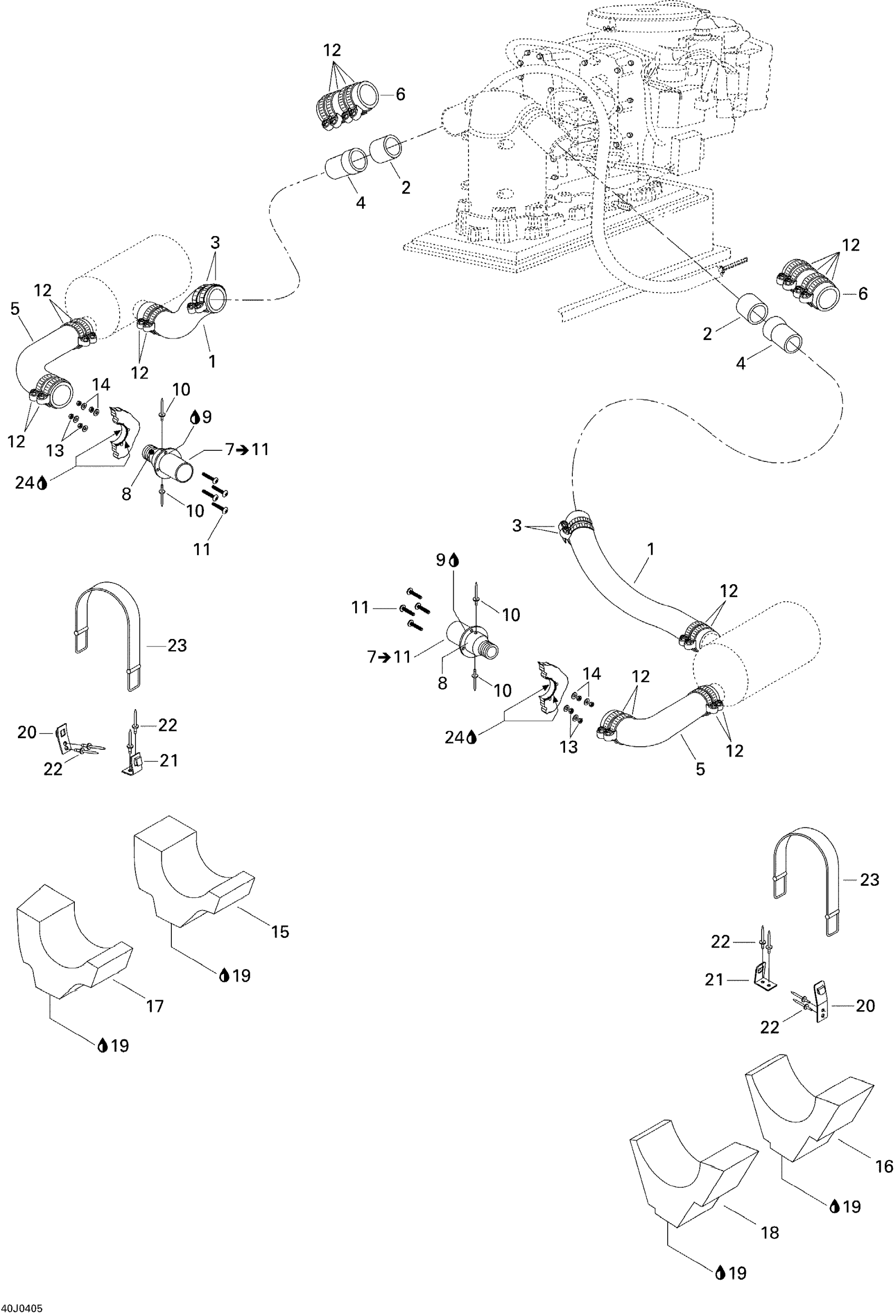

Sea-doo Challenger 1800, 240 ER, 2004 Exhaust System Diagram

#

Description
Price

1

Exhaust Hose

204340407

Unavailable

2

Exhaust Spacer

204340403

$30.49

3

Tridon Clamp

293650064

$8.29

4

Exhaust Adaptor

204340402

$59.49

5

Exhaust Hose

204340299

Unavailable

6

Exhaust Hose, Meter

204340256

Unavailable

7

Extension Exhaust Outlet | Includes 7 to 11

204340324

Unavailable

8

Exhaust Outlet

204340229

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Pop Rivet 3/16"

293150043

$2.09

11

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

12

Tridon Clamp

293650112

$12.99

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Flat Washer M6, Stainless

234062600

$0.77

15

LH Front Muffler Support

204340261

Unavailable

16

RH Front Muffler Support

204340262

Unavailable

17

LH Rear Muffler Support

204340263

Unavailable

18

RH Rear Muffler Support

204340264

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

21

Strap Clip 90°

204060017

Unavailable

22

Pop Rivet 3/16"

293150088

$0.99

23

STRAP - Call your local BRP dealership

293850022

Unavailable

24

Silicone Sealant 51388, 300 ml

296000309

$36.99
