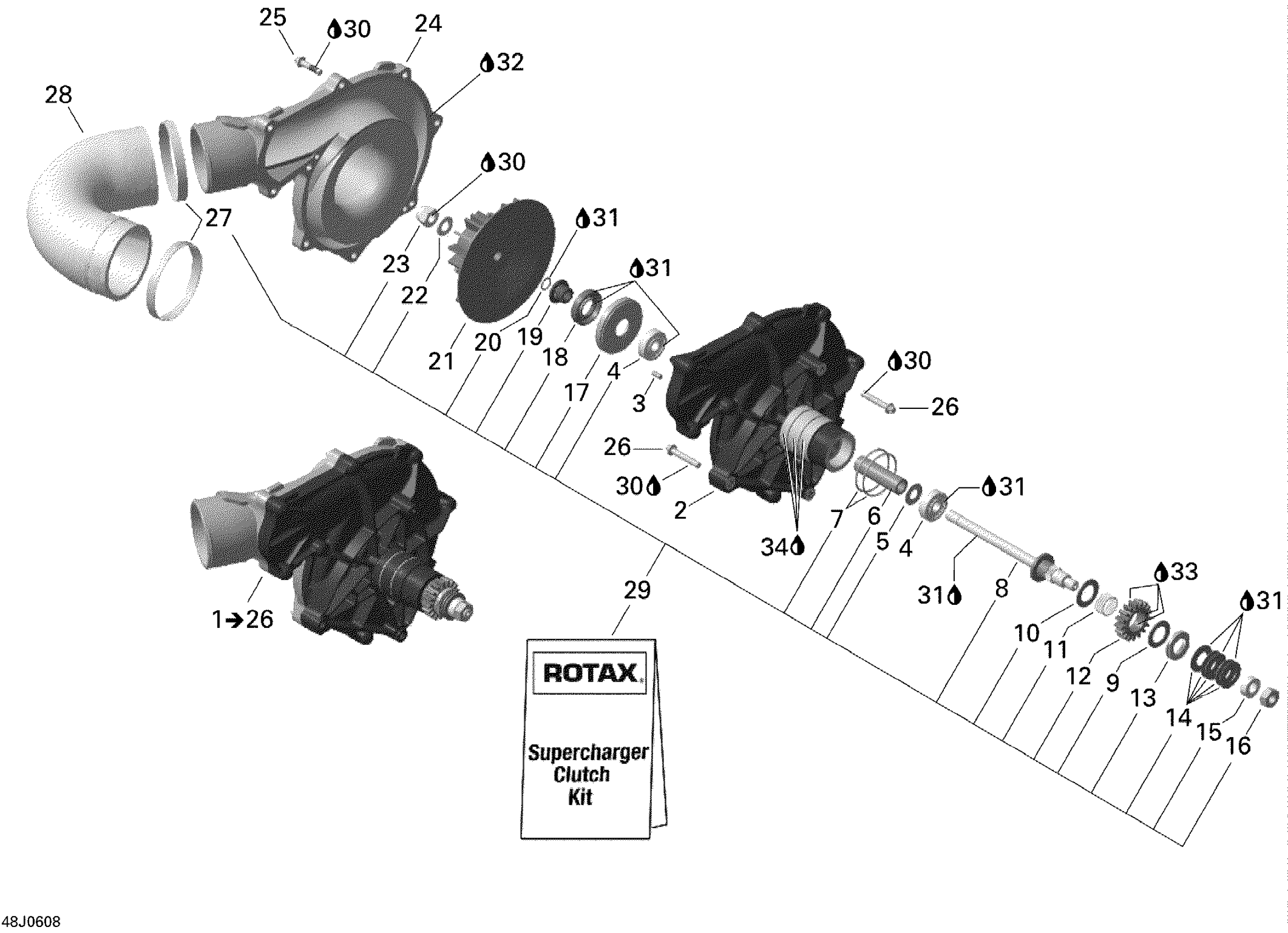

Sea-doo Challenger 180 4-TEC TOWER, Edition 2, 2006 Supercharger Diagram

#

Description
Price

1

Supercharger Ass'Y | Includes 1 to 25 This part replaces 420881996.

420890489

$1.00

2

Compressor Base Plate

420867180

$264.99

3

Drive Pin 5 X 10

420929650

$1.68

4

Bearing Ball This part replaces 420832710.

420832713

$39.99

5

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

6

Spacer

420947023

Unavailable

7

O-Ring | Included in gasket kit

420650270

$8.01

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Needle Pin This part replaces 420632430.

420632435

$35.99

12

Not Available As Spare Part - Friction Washer

Unavailable

13

LOCK WASHER - Call your local BRP dealership

420926377

Unavailable

14

SPRING WASHER - Call your local BRP dealership

420939220

Unavailable

15

LOCK WASHER - Call your local BRP dealership

420926376

Unavailable

16

HEX. NUT - Call your local BRP dealership

420942950

Unavailable

17

THRUST WASHER - Call your local BRP dealership

420926393

Unavailable

18

Oil Seal

420950940

$30.49

19

STEP COLLAR - Call your local BRP dealership

420947012

Unavailable

20

O-Ring

420950950

$1.01

21

Compressor Impeller

420867191

$759.99

22

SHIM - Call your local BRP dealership

420927413

Unavailable

23

CAP NUT - Call your local BRP dealership

420842833

Unavailable

24

Compressor Housing

420867154

$114.99

25

Torx Flange Screw M6 X 25

420641238

$3.27

26

Torx Flange Screw M6 X 35

420440274

$1.01

27

Gear Clamp

420851703

$22.99

28

FORMED HOSE - Call your local BRP dealership

420660151

Unavailable

29

Supercharger Kit This part replaces 420881101.

420881102

$499.99

30

Loctite 243, 10 ml

293800060

$21.49

31

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

32

Loctite 5910, 300 ml

293800081

$57.99

33

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

34

Grease, Super Lube

293550030

$28.99
