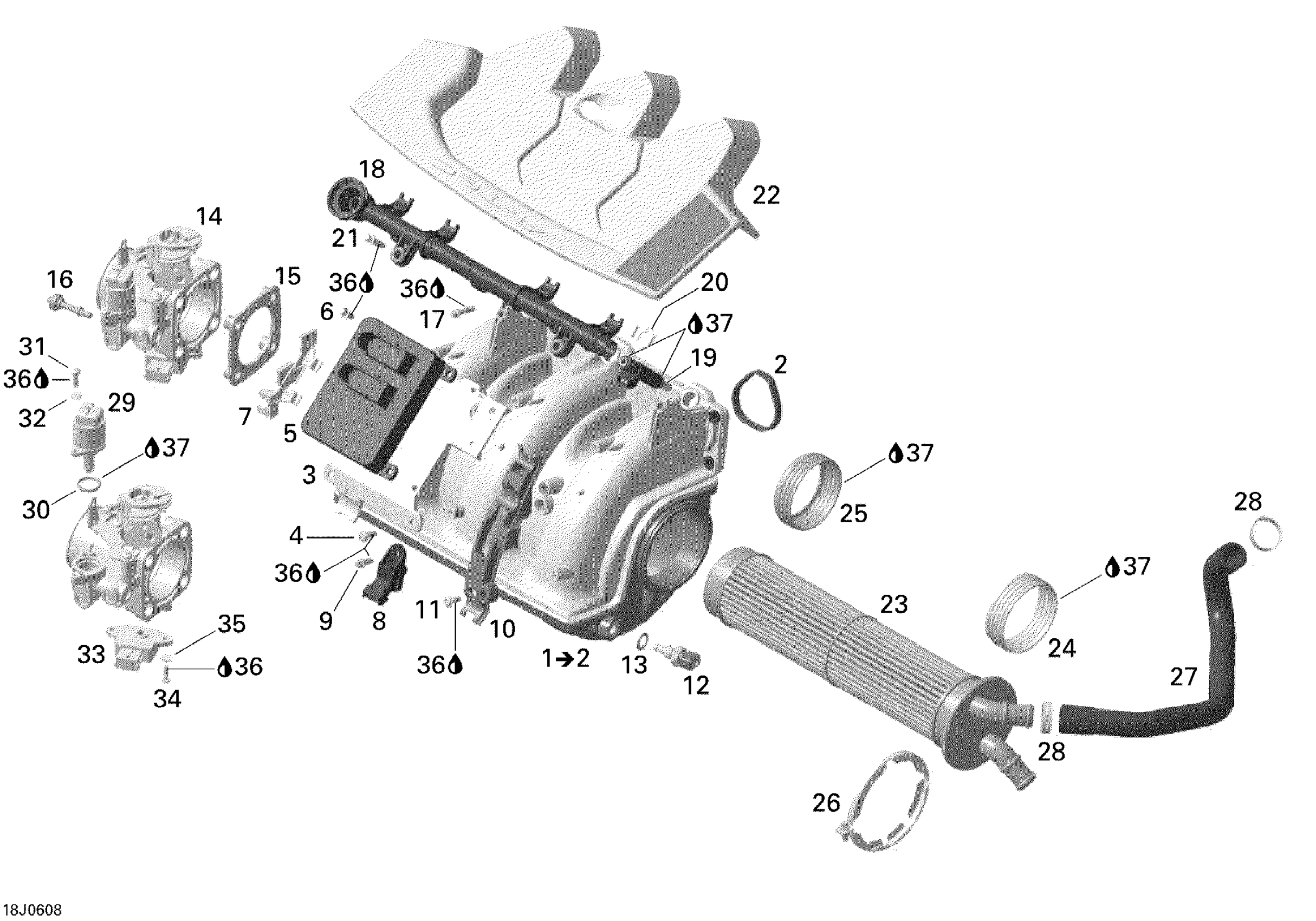

Sea-doo Challenger 180 4-TEC TOWER, Edition 2, 2006 Air Intake Manifold Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867955

$469.99

2

Gasket | Included in gasket kit

420950740

$4.44

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.96

5

ELECTRONIC BOX - Call your local BRP dealership | Edition 1

420664946

$1.00

6

Torx Flange Screw M6 X 16

420641588

$2.11

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

420274058

$124.99

9

Torx Flange Screw M6 X 16

420641048

$2.96

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$2.11

12

Temperature Sensor This part replaces 420222423.

420222421

$39.99

13

Aluminum Sealing Ring

420250016

$5.39

14

Throttle Body

420889024

Unavailable

15

Rubber Gasket

420950792

$11.60

16

Hex Screw M6 X 30

420440568

$8.58

17

Torx Flange Screw M6 X 25

420641238

$3.27

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

19

Fuel Injector | Includes 19 to 20

420874520

$148.49

20

Injector Clip

420853030

$3.09

21

Torx Flange Screw M6 X 25

420641238

$3.27

22

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

23

Intercooler This part replaces 420889653.

420889654

$459.99

24

PROFILE RING - Call your local BRP dealership

420631990

Unavailable

25

Profile Ring

420631995

$20.99

26

Gear Clamp

420853253

$35.99

27

FORMED HOSE - Call your local BRP dealership

420822173

Unavailable

28

Gear Clamp

420851673

$5.71

29

Idle Bypass Valve

420963051

$307.49

30

O-Ring

420631780

$4.44

31

Binding Head Screw M5 X 16

420440911

$14.28

32

Snap Ring

420845710

$4.12

33

Position Sensor

420866120

$98.99

34

Phillips Screw M4 X 16

208641660

$0.90

35

Flat Washer 4 mm, Stainless

234042600

$1.15

36

Loctite 243, 10 ml

293800060

$21.49

37

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
