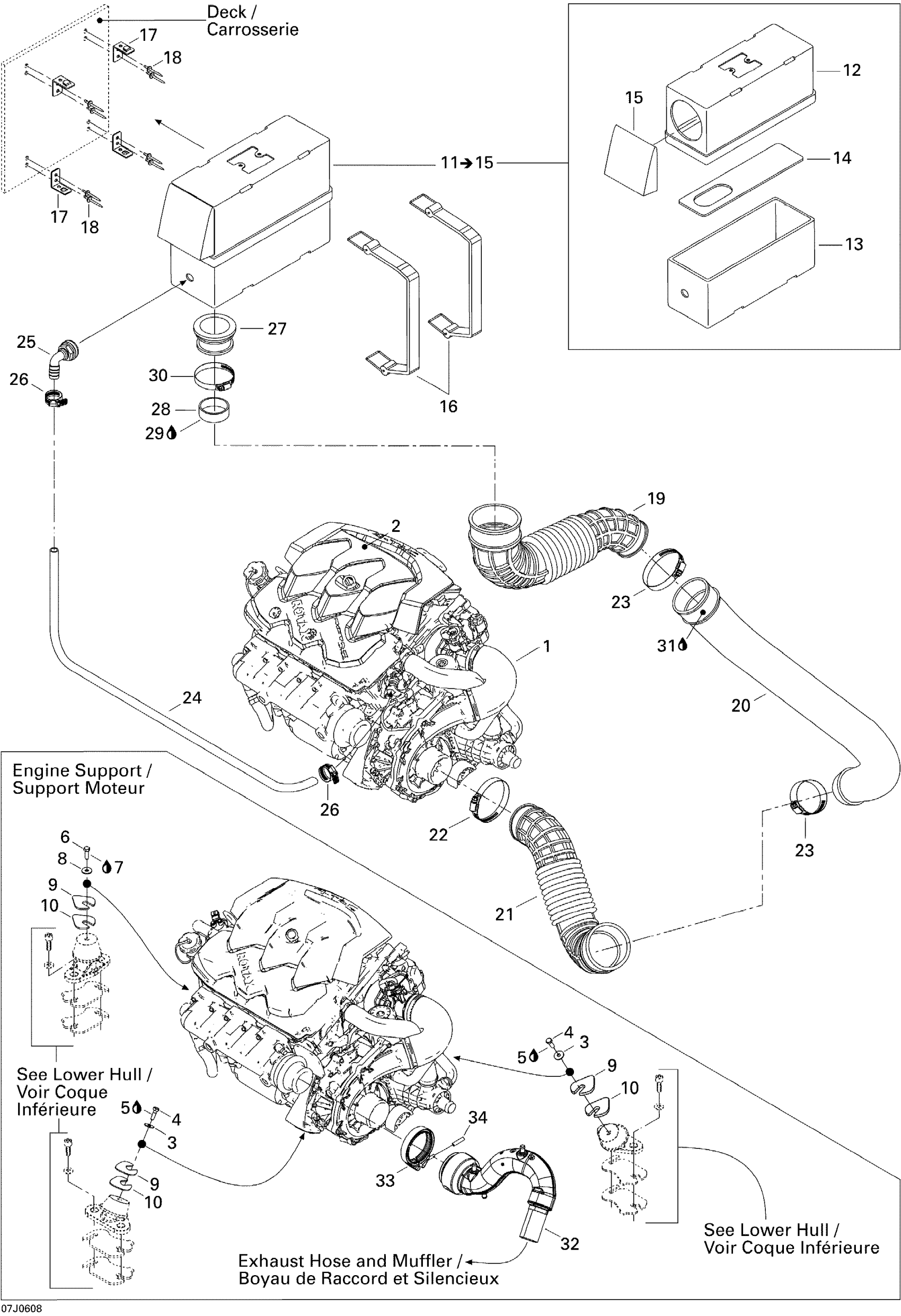

Sea-doo Challenger 180 4-TEC TOWER, Edition 2, 2006 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.43

4

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

10

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

11

Air Silencer Ass'y | Includes 13 to 14

204250333

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Retainer Strap

293850097

$11.64

17

Strap Clip 90°

204060017

Unavailable

18

Pop Rivet 3/16"

293150008

$0.50

19

Intake Hose

204250331

Unavailable

20

Intake Hose

204250332

Unavailable

21

Intake Hose

204250331

Unavailable

22

Tridon Clamp

293650179

$11.49

23

Tridon Clamp

293650179

$11.49

24

HOSE 3/4 - Call your local BRP dealership

204250353

Unavailable

25

Fitting 90°

204250335

Unavailable

26

Tridon Gear Clamp

293650051

$4.19

27

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

28

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

29

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

30

Tridon Clamp

293650179

$11.49

31

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

32

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

33

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

34

Polyurethane Hose 10000Mm Long

219704410

$56.99
