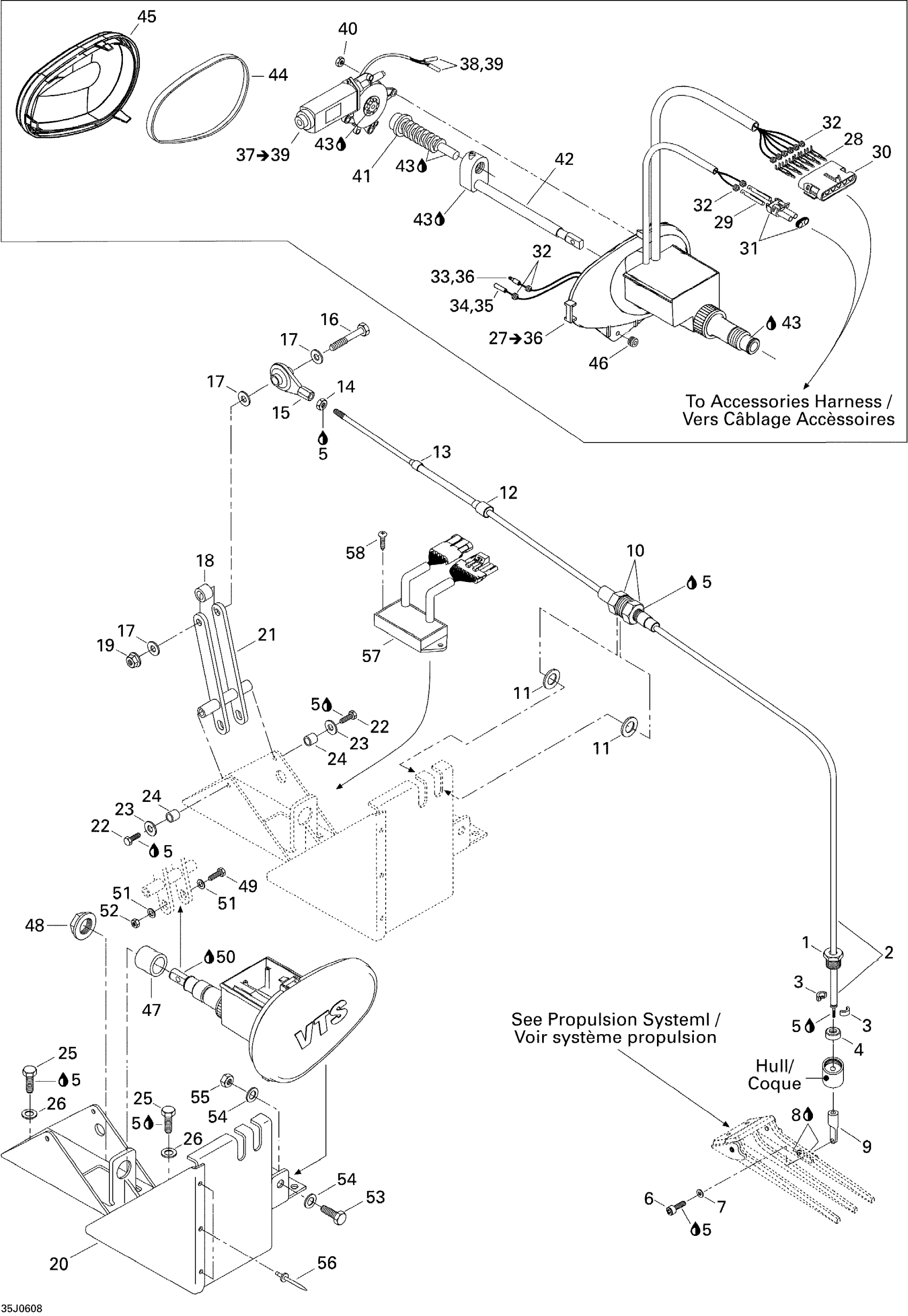

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 Inlet Clearance System (ICS) Diagram

#

Description
Price

1

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

2

WEEDLESS CABLE - Call your local BRP dealership

204200117

Unavailable

3

HALF RING - Call your local BRP dealership

204200009

Unavailable

4

THRU HULL SEAL - Call your local BRP dealership

204200118

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

Pivot Socket Screw M5 x 0.8

204100138

Unavailable

7

FLAT WASHER 5 MM - Call your local BRP dealership

234052100

$1.78

8

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

9

Joint

204200006

Unavailable

10

Hex. Jam Nut

212100006

Unavailable

11

Flat Washer

213200017

Unavailable

12

Boot, Large

277000473

Unavailable

13

Boot, Small

277000466

Unavailable

14

Hex. Nut

212100005

$1.03

15

BALL JOINT - Call your local BRP dealership

204170062

Unavailable

16

Hex. Screw M6 X 50

207065060

$2.12

17

Flat Washer M6, Stainless

234062600

$0.73

18

NYLON SPACER - Call your local BRP dealership

204200112

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.06

20

Weedless Support Ass'y

204471003

Unavailable

21

Pivot-arm Ass'y

204471006

Unavailable

22

Hex. Screw M6 X 16

207161660

$1.40

23

Stainless Flat Washer M6

234061600

$0.28

24

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

25

Hex. Forming Screw M6 X 20

207162060

$1.18

26

Stainless Flat Washer M6

234061600

$0.28

27

V.T.S. HOUSING ASSY - Call your local BRP dealership | Includes 27 to 36

278001606

Unavailable

28

Male Terminal | XT Models

278000222

$2.93

29

Female Terminal

278000223

$2.93

30

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

31

Male Connector, 2 Circuits

278000220

$12.66

32

Wire Seal

278000218

$4.00

33

Insulated Sheath

278001008

$3.10

34

Insulated Sheath

278001007

$3.12

35

Female Terminal | DS 650 X

278001009

$2.93

36

Male Terminal

278000230

$4.00

37

Windshield Motor

278002579

$211.91

38

Insulation Sheath

278000231

$4.75

39

Male Terminal

278000230

$4.00

40

Hex. Elastic Stop Nut M6

232561600

$1.06

41

Worm Screw

278000428

$13.24

42

Sliding Block Ass’y

278001698

Unavailable

43

Synthetic Grease, 400 G

293550010

Unavailable

44

GASKET - Call your local BRP dealership

293200027

Unavailable

45

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

46

GROMMET - Call your local BRP dealership

293720015

Unavailable

47

ABS SPACER - Call your local BRP dealership

204470857

Unavailable

48

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

49

Hex. Screw M6 X 40

207164060

$3.15

50

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

51

Flat Washer M6, Stainless

234062600

$0.73

52

Hex. Elastic Stop Nut M6

232561600

$1.06

53

Hex. Screw M8 X 30

207183060

$1.49

54

Flat Washer M8, Stainless

234080600

$1.43

55

Hex. Elastic Nut M8

232581600

$1.43

56

Pop Rivet 3/16"

293150039

$1.31

57

Weedless Grade Module

204470887

Unavailable

58

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable
