- Challenger 180 4-TEC TOWER, Edition 1, 2006
10- Electrical System

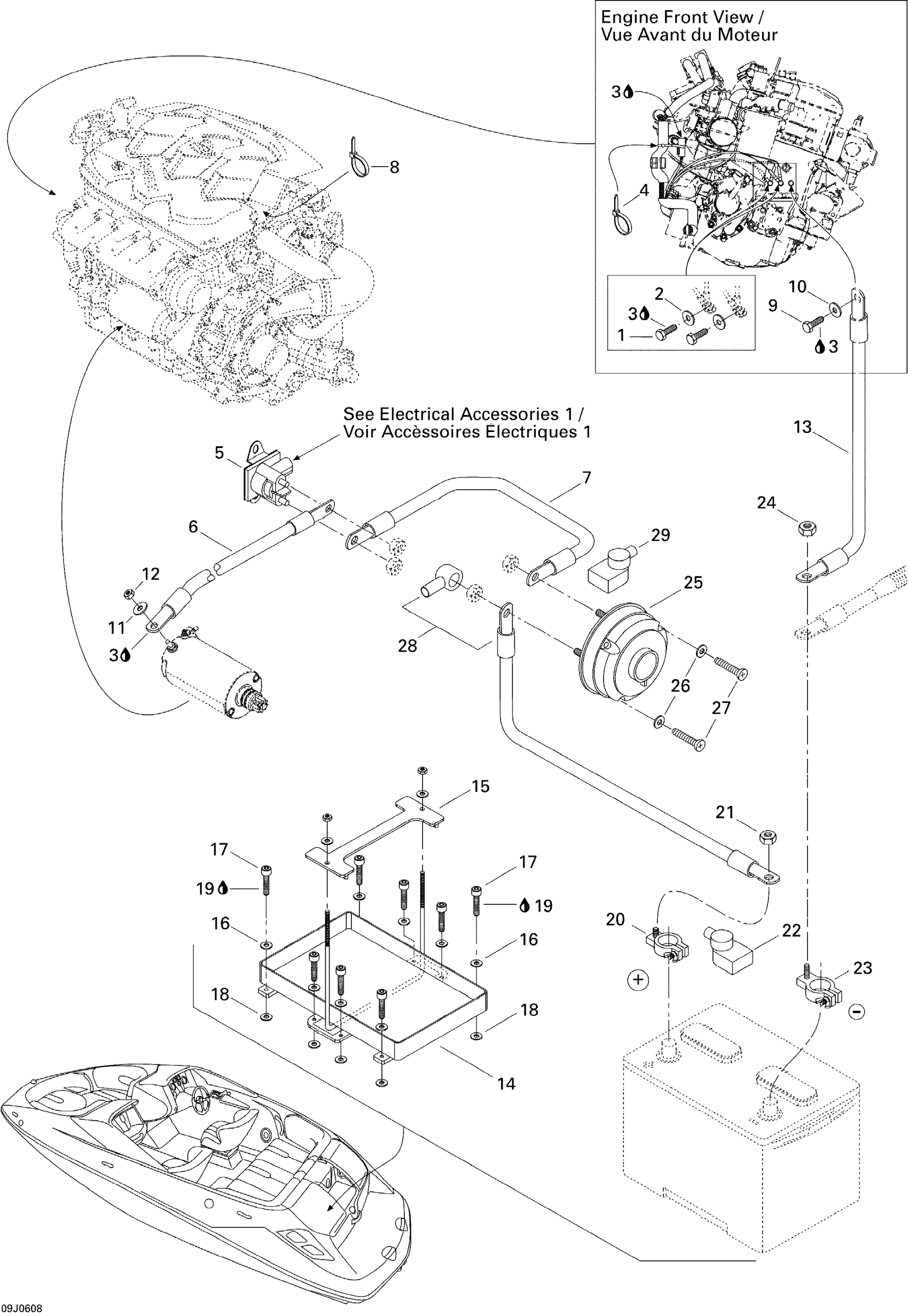

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 10- Electrical System Diagram
#
Description
Price
1
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
2
Stainless Flat Washer M6
234061600
$0.33
3
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
4
Tie-Rap 180 mm
414115200
$0.11
5
Starter Relay
278003012
$42.49
6
RED CABLE - Call your local BRP dealership
204470798
Unavailable
7
RED CABLE - Call your local BRP dealership
204470799
Unavailable
8
Tie Wrap 142 mm
293750002
$1.25
9
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
10
Flat Washer M6, Stainless
234062600
$0.77
11
Stainless Flat Washer M6
234061600
$0.33
12
Hex. Elastic Stop Nut M6
232561600
$1.15
13
RH GROUND CABLE - Call your local BRP dealership
204470199
Unavailable
14
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
15
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
16
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
17
Socket Head Screw M6 X 25
205062560
$1.69
18
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
19
Loctite 243, 10 ml
293800060
$21.49
20
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
21
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
22
RED BOOT - Call your local BRP dealership
204470269
Unavailable
23
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
24
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
25
BATTERY SWITCH - Call your local BRP dealership
204470814
Unavailable
26
Flat Washer M5, Stainless
234051600
$0.77
27
PHILLIPS HEAD SCREW M4.8 X 38 - Call your local BRP dealership
250000089
Unavailable
28
POSITIVE SWITCH CABLE - Call your local BRP dealership
204470250
Unavailable
29
RED BOOT - Call your local BRP dealership
204470269
Unavailable
