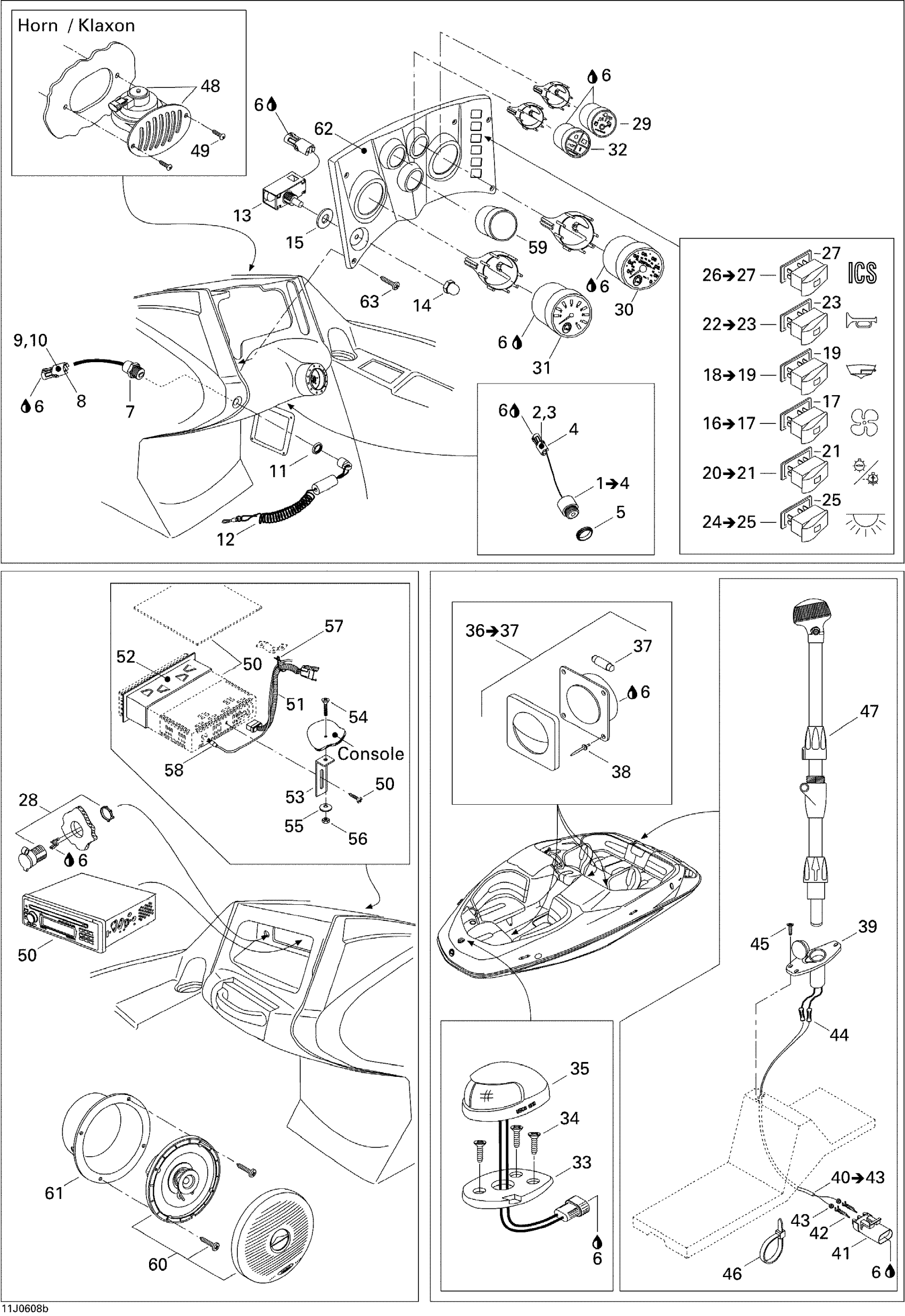

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 Electrical Accessories 2 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$92.99

2

Male Terminal | XT Models

278000222

$3.19

3

Wire Seal

278000218

$4.39

4

Female Housing, 2 Circuits

278000217

$9.59

5

Buzzer Nut

278000707

Unavailable

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

Male Housing, 3 Circuits

278000273

$9.59

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Safety Nut (DESS Switch)

278002963

$3.28

12

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

13

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

14

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

15

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

16

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

17

Gasket

204470132

Unavailable

18

Bilge Pump Switch Ass'y | Includes 18 to 19

204470974

Unavailable

19

Gasket

204470132

Unavailable

20

Navigation Light Switch Ass'y | Includes 20 to 21

204470975

Unavailable

21

Gasket

204470132

Unavailable

22

HORN SWITCH ASS'Y - Call your local BRP dealership | Includes 22 to 23

204470976

Unavailable

23

Gasket

204470132

Unavailable

24

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership | Includes 24 to 25

204470977

Unavailable

25

Gasket

204470132

Unavailable

26

Inlet Clearance System Switch Ass'y | Includes 26 to 27

204471047

Unavailable

27

Gasket

204470132

Unavailable

28

DC Outlet

710001248

$37.99

29

Fuel Gauge

204470985

Unavailable

30

Speedometer Gauge

204470986

Unavailable

31

Tachometer Gauge

204470988

Unavailable

32

Engine Warning Gauge

204470989

Unavailable

33

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

34

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

35

Front Lamp

204470372

Unavailable

36

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

37

BULB - Call your local BRP dealership

204470081

Unavailable

38

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

39

REAR LIGHT BASE - Call your local BRP dealership

204470990

Unavailable

40

REAR LIGHT HARNESS - Call your local BRP dealership | Includes 39 to 42

204470980

Unavailable

41

Female Housing, 2 Circuits

278000217

$9.59

42

Male Terminal | XT Models

278000222

$3.19

43

Wire Seal

278000218

$4.39

44

Connector With Heat Shrink

202000435

Unavailable

45

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

46

Tie Wrap 142 mm

293750002

$1.25

47

REAR LIGHT POLE - Call your local BRP dealership

204470979

Unavailable

48

HORN - Call your local BRP dealership

204470801

Unavailable

49

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

50

Stereo Compact Disk Player/radio

204471056

Unavailable

51

Stereo Adaptor Harness

204470930

Unavailable

52

STEREO TRIM RING - Call your local BRP dealership

204471010

Unavailable

53

RADIO SUPPORT - Call your local BRP dealership

204470981

Unavailable

54

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

55

Flat Washer M6, Stainless

234062600

$0.77

56

Hex. Elastic Stop Nut M6

232561600

$1.15

57

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

58

Antenna

204470931

Unavailable

59

GAUGE CAP - Call your local BRP dealership | STD

204470987

Unavailable

60

Speaker, White

204471059

Unavailable

61

SPEAKER COVER ASS'Y - Call your local BRP dealership

204470982

Unavailable

62

Fascia Ass'y

204470949

Unavailable

63

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable
