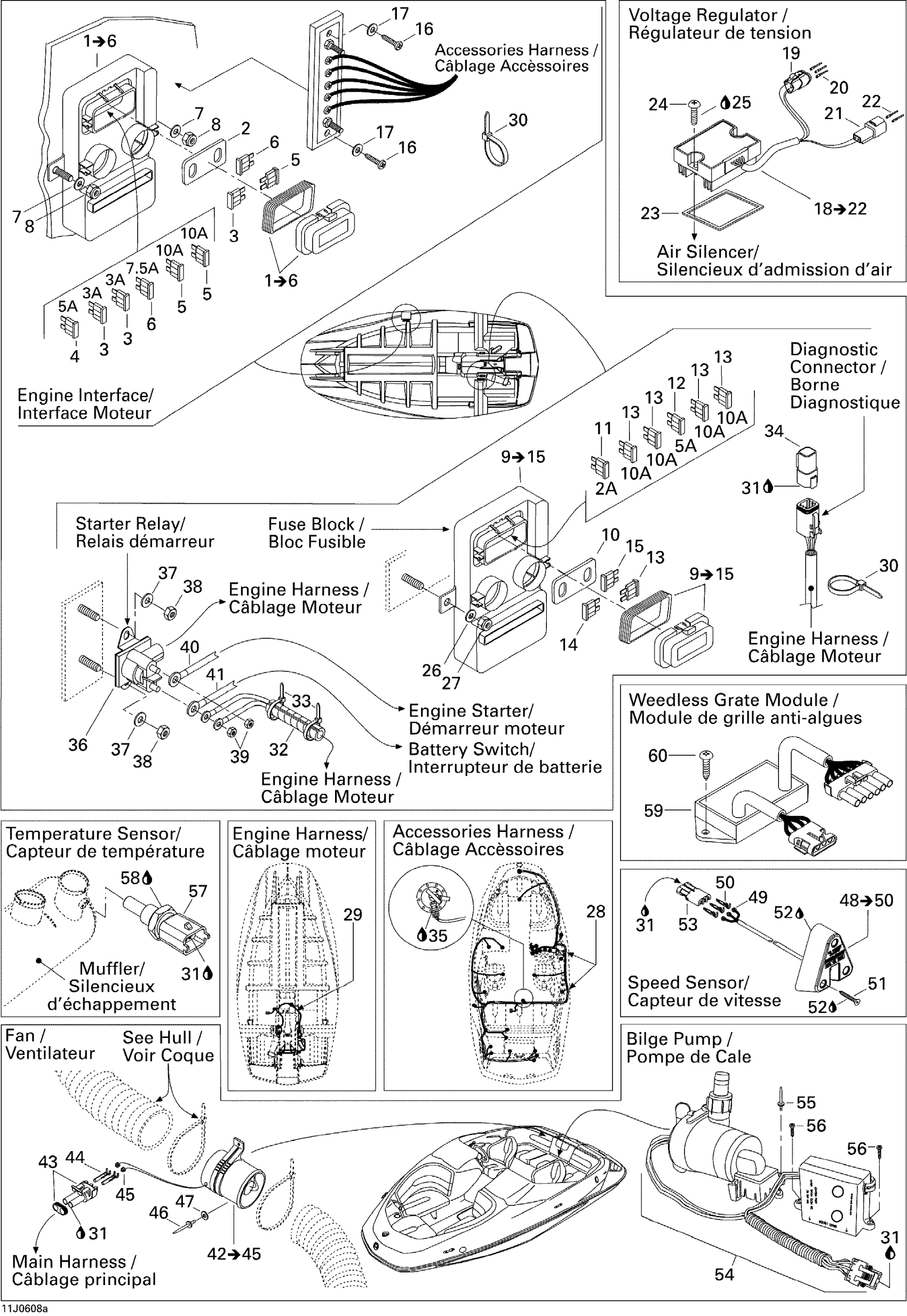

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 Electrical Accessories 1 Diagram

#

Description
Price

1

SIMPLE ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6

204470771

Unavailable

2

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.22

5

Fuse, 10 Amperes | North America

278001197

$1.79

6

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.64

8

Hex. Elastic Stop Nut M6

232561600

$0.92

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

11

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

12

Fuse, 5 Amperes | CE

278000344

$3.22

13

Fuse, 10 Amperes | North America

278001197

$1.79

14

Fuse, 20 Amperes

403003900

Unavailable

15

Fuse, 30 Amperes

410917200

$3.22

16

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

17

Flat Washer 4 mm, Stainless

234041600

$0.91

18

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

19

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$28.43

20

Female Terminal

278000632

$1.69

21

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

22

Male Terminal

515175568

$7.48

23

SEAL - Call your local BRP dealership

293250123

Unavailable

24

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

25

Loctite 271, 10 ml

293800005

$20.77

26

Flat Washer M6, Stainless

234062600

$0.64

27

Hex. Elastic Stop Nut M6

232561600

$0.92

28

Accessories Wiring Harness

204471062

Unavailable

29

Engine Harness

204470973

Unavailable

30

Tie-Rap 180 mm

414115200

$0.09

31

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

32

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable

33

Tie Wrap 142 mm

293750002

$0.88

34

Diagnostic Connector

278002704

$15.57

35

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

36

Starter Relay

278003012

$35.07

37

Flat Washer M6, Stainless

234062600

$0.64

38

Hex. Elastic Stop Nut M6

232561600

$0.92

39

Hex. Elastic Stop Nut M6

232561600

$0.92

40

RED CABLE - Call your local BRP dealership

204470798

Unavailable

41

RED CABLE - Call your local BRP dealership

204470799

Unavailable

42

Fan Ass'y | Includes 44 to 47

204470108

$114.37

43

Male Connector, 2 Circuits

278000220

$11.02

44

Female Terminal

278000223

$2.55

45

Wire Seal

278000218

$3.48

46

Pop Rivet 3/16"

293150008

$0.40

47

Flat Washer 5 mm, Stainless

234052600

$0.64

48

Speed Sensor

278001993

$143.62

49

Wire Seal

710000048

$5.10

50

Male Terminal | XT Models

278000222

$2.55

51

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

52

Silicone Sealant 51388, 300 ml

296000309

$35.72

53

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

54

BILGE PUMP - Call your local BRP dealership

204471078

Unavailable

55

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

56

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

57

Temperature Sensor

278002895

$31.82

58

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

59

Weedless Grade Module

204470887

Unavailable

60

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable
