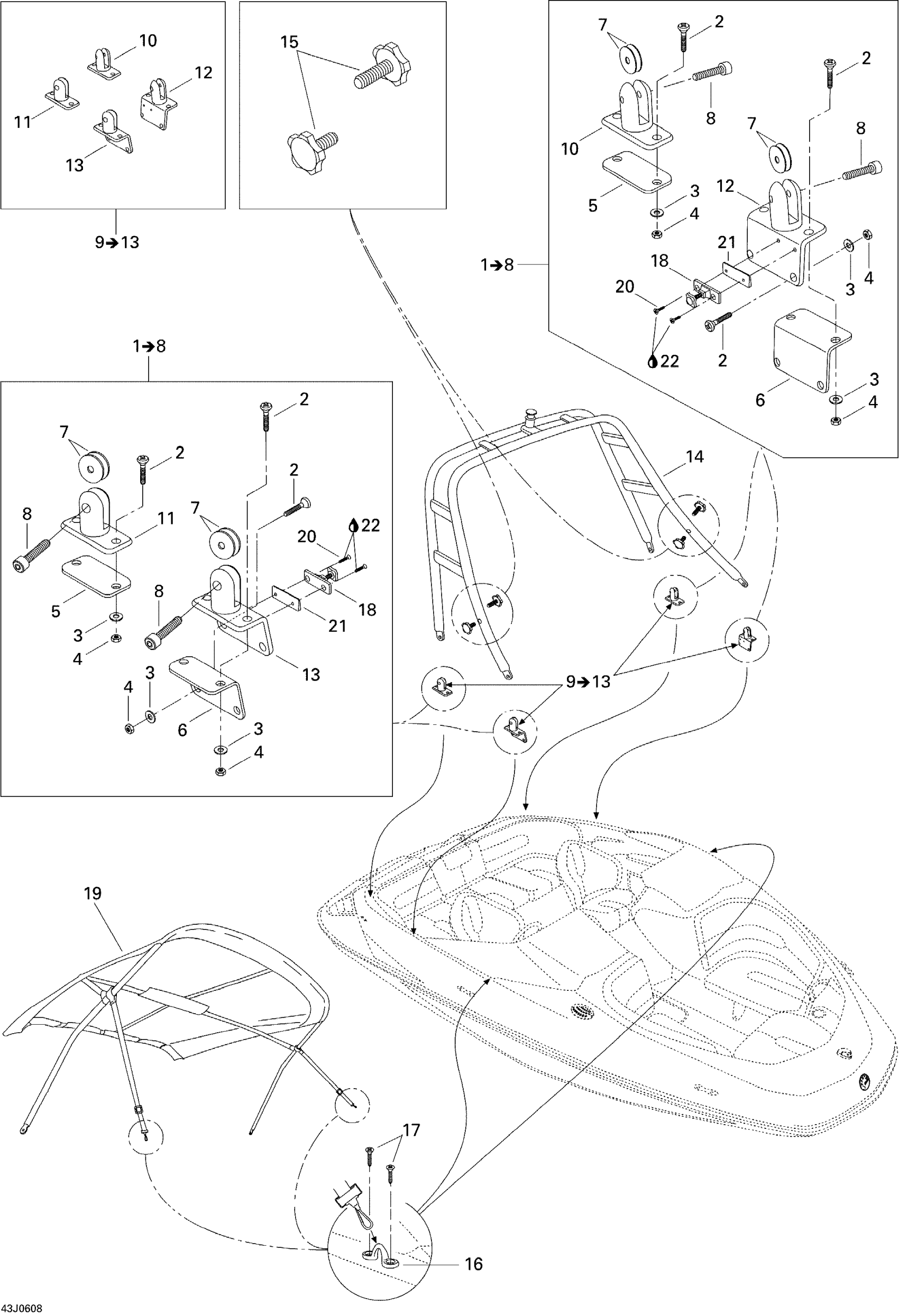

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 09- Tower And Bimini Top Diagram

#

Description
Price

1

TOWER HARDWARE KIT - Call your local BRP dealership | Includes 4 to 11

204072257

Unavailable

2

SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership

204100151

Unavailable

3

WASHER - Call your local BRP dealership | Without Tower

204071423

Unavailable

4

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

5

REAR GASKET - Call your local BRP dealership

204130107

Unavailable

6

FRONT GASKET - Call your local BRP dealership

204130108

Unavailable

7

Washer, Nylon

204100158

Unavailable

8

SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership

204100094

Unavailable

9

TOWER MOUNTING KIT - Call your local BRP dealership | Includes 12 to 16

204072258

Unavailable

10

REAR TOWER SUPPORT, PORT SIDE - Call your local BRP dealership

204072251

Unavailable

11

REAR TOWER SUPPORT, STARBOARD - Call your local BRP dealership

204072252

Unavailable

12

Front Tower Support, Port Side

204072253

Unavailable

13

Front Tower Support, Starboard

204072259

Unavailable

14

Tower

204072261

Unavailable

15

Soft Touch Knob

204072011

Unavailable

16

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

17

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

18

BIMINI MOUNT - Call your local BRP dealership

204072264

Unavailable

19

Bimini Top Ass'y

204072262

Unavailable

20

FLAT PHILLIPS SCREW M5 X 1 - Call your local BRP dealership

208451660

Unavailable

21

BIMINI MOUNT SPACER - Call your local BRP dealership

204072263

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49
