- Challenger 180 4-TEC TOWER, Edition 1, 2006
09- Storage Compartment

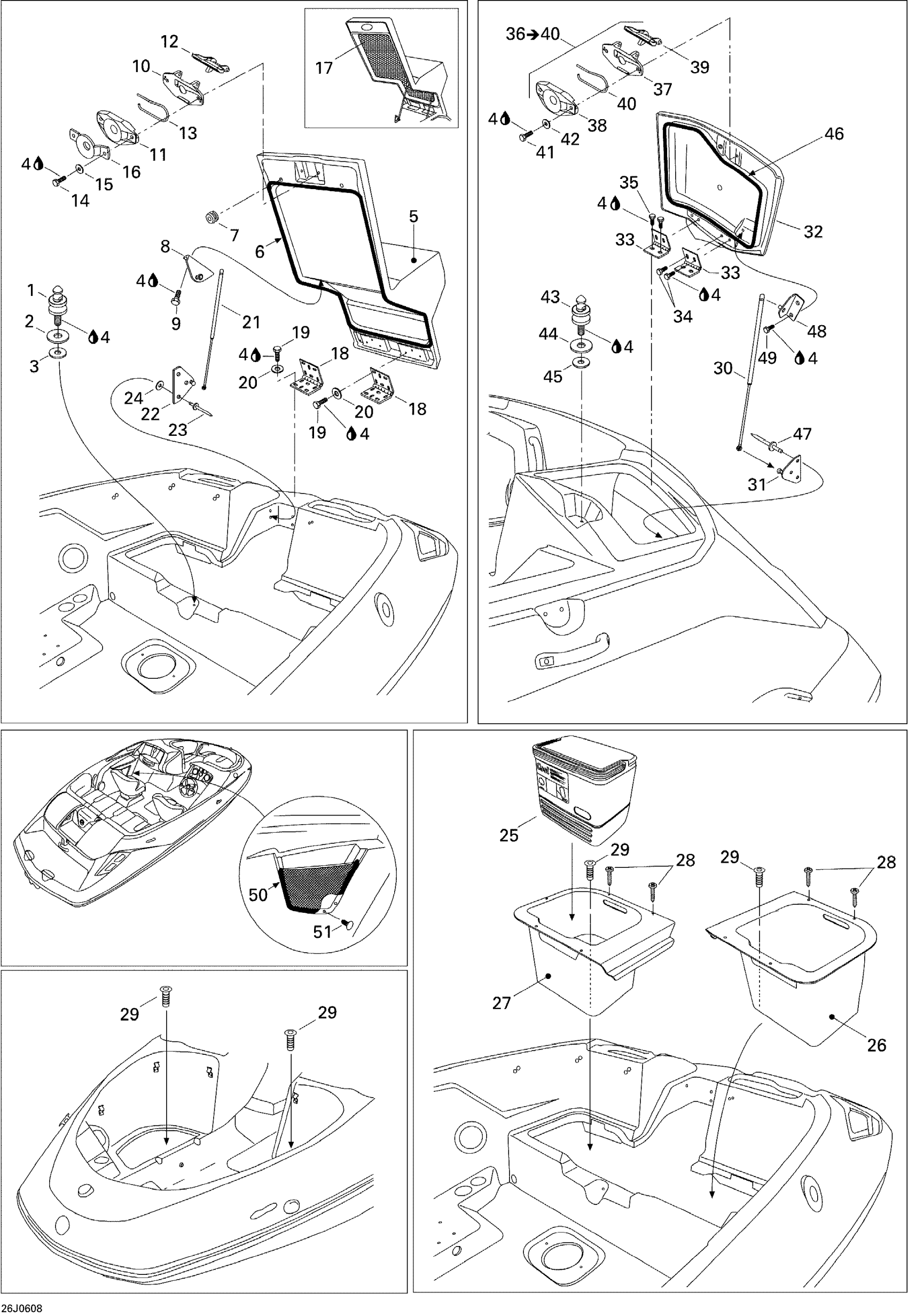

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 09- Storage Compartment Diagram
#
1
Latch Stud
291001420
Unavailable
2
Flat Washer 10 mm, Stainless
234002600
$2.22
3
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
4
Loctite 243, 10 ml
293800060
$21.49
5
Engine Cover
204072561
Unavailable
6
Was 293200017 Neoprene Seal
219704365
$149.99
7
GROMMET - Call your local BRP dealership
293720017
Unavailable
8
Angled Shock Bracket
204071699
Unavailable
9
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
10
Latch Ass'y
269700109
$24.99
11
Latch Ass'y
269700109
$24.99
12
Latch Ass'y
269700109
$24.99
13
Latch Spring
269700017
$9.19
14
Hex. Screw M6 X 25
207162560
$1.47
15
Stainless Flat Washer M6
234061600
$0.33
16
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
17
FOAM - ACOUSTIC - Call your local BRP dealership This part replaces 204073316.
291003867
Unavailable
18
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
19
Hex. Screw M6 X 25
207162560
$1.47
20
Stainless Flat Washer M6
234061600
$0.33
21
GAS SHOCK - Call your local BRP dealership
204071959
Unavailable
22
Shock Bracket
204071673
Unavailable
23
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
24
Flat Washer M5, Stainless
234051600
$0.77
25
16-QT COOLER - Call your local BRP dealership
291003362
Unavailable
26
Rear Storage Box, Port Side | Port Side
204072090
Unavailable
27
Rear Storage Box, Starboard | Starboard
204072091
Unavailable
28
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
29
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
30
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
31
RH SHOCK BRACKET - Call your local BRP dealership
204072219
Unavailable
31
LH SHOCK BRACKET - Call your local BRP dealership | Port Side
204072220
Unavailable
32
Rear Storage Lid, Port Side | Port Side
204072460
Unavailable
32
Rear Storage Lid, Starboard | Starboard
204072461
Unavailable
33
SUNDECK HINGE - Call your local BRP dealership
204612769
Unavailable
34
Hex. Cap Screw M6 X 12
207161260
$1.26
35
Hex. Screw M6 X 16
207161660
$1.59
36
Latch Ass’y | Includes 36 to 40
204070577
Unavailable
37
Latch Ass'y
269700109
$24.99
38
Latch Ass'y
269700109
$24.99
39
Latch Ass'y
269700109
$24.99
40
Latch Spring
269700017
$9.19
41
Hex. Screw M6 X 25
207162560
$1.47
42
Stainless Flat Washer M6
234061600
$0.33
43
Latch Stud
291001420
Unavailable
44
Flat Washer 10 mm, Stainless
234002600
$2.22
45
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
46
Seal Tray 1000Mm Long
219704368
$13.99
47
Pop Rivet 3/16"
293150043
$2.09
48
Angled Shock Bracket
204071699
Unavailable
49
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
50
Storage Net
204072210
Unavailable
51
Black, Dart
293730006
$0.99
