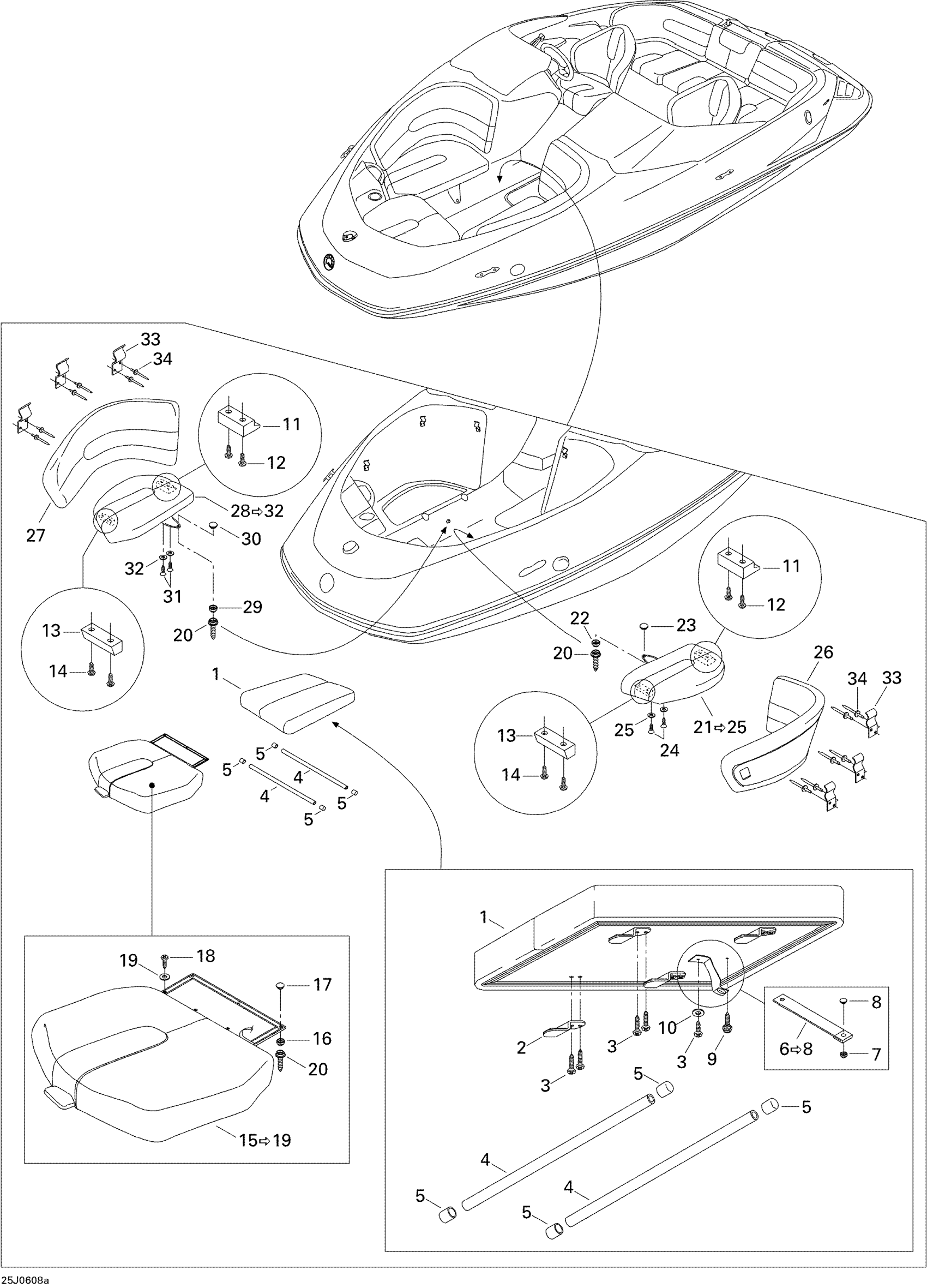

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 09- Seat, Front View Diagram

#

Description
Price

1

Seat Ass'y, Bow (Grey)

204613121

Unavailable

2

BRACKET - Call your local BRP dealership | Except STD

204613161

Unavailable

3

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

4

TUBE, STAINLESS - Call your local BRP dealership | Except STD

204613164

Unavailable

5

TUBE CAP - Call your local BRP dealership | Except STD

204613165

Unavailable

6

Retaining Strap Ass'y | Includes 6 to 8

204613163

Unavailable

7

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

8

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

9

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

10

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

11

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

12

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

13

LATCH - Call your local BRP dealership

204611805

Unavailable

14

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

15

Front Seat Ass'y, Bow (Blue) | Includes 15 to 19, Blue

204613210

Unavailable

15

Front Seat Ass'y, Bow | Includes 15 to 19, Copper

204613126

Unavailable

16

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

17

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

18

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

19

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

20

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

21

Front Seat Ass'y, Port Side | Includes 21 to 25, Blue

204613213

Unavailable

21

Front Seat Ass'y, Port Side | Includes 21 to 25, Copper

204613130

Unavailable

22

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

23

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

24

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

25

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

26

Backrest Ass'y, Port Side (Blue) | Blue

204613462

Unavailable

26

Backrest Ass'y, Port Side | Copper

204613133

Unavailable

27

Backrest Ass'y, Starboard (Blue) | Blue

204613466

Unavailable

27

Backrest Ass'y, Starboard | Copper

204613135

Unavailable

28

Front Seat Ass'y, Starboard | Includes 28 to 32, Blue

204613219

Unavailable

28

Front Seat Ass'y, Starboard | Includes 28 to 32, Copper

204613137

Unavailable

29

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

30

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

31

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

32

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

33

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

34

Pop Rivet 3/16"

293150043

$2.09
