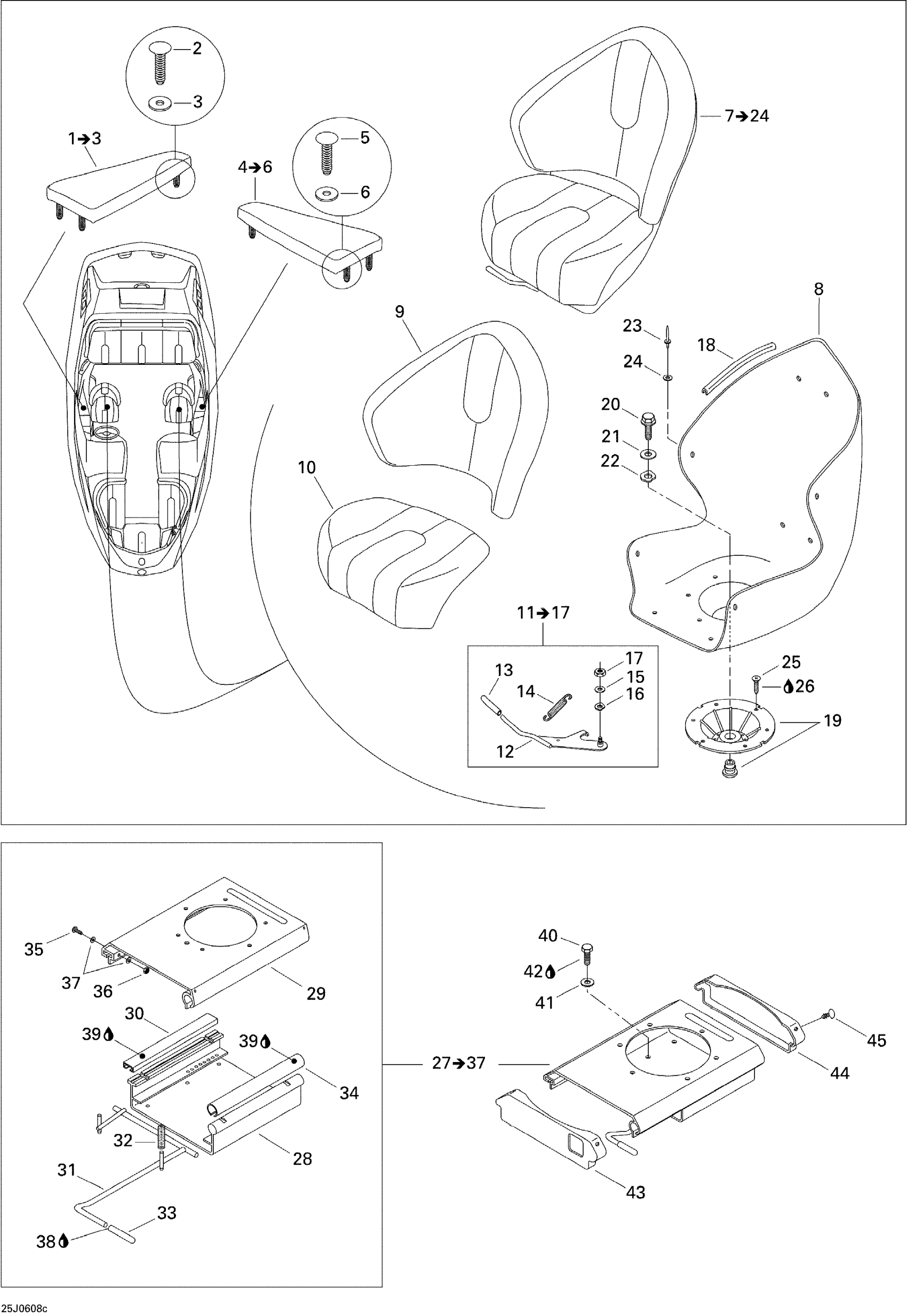

Sea-doo Challenger 180 4-TEC TOWER, Edition 1, 2006 Seat Diagram
#
1
Elbow Rest Ass'y, Port Side (Blue) | Includes 1 to 3, Blue
204612816
Unavailable
1
Elbowrest Ass'y, Port Side | Includes 1 to 3, Copper
204613151
Unavailable
4
Elbow Rest Ass'y, Starboard (Blue) | Includes 4 to 6, Blue
204612817
Unavailable
4
Elbowrest Ass'y, Starboard | Includes 4 to 6, Copper
204613154
Unavailable
7
Seat Ass'y | Includes 7 to 24, Blue
204613233
Unavailable
7
Seat Ass'y | Includes 7 to 24, Copper
204613156
Unavailable
8
Seat Base
204611146
Unavailable
9
Backrest Cushion (Blue) | Blue
204613234
Unavailable
9
Backrest Cushion | Copper
204613157
Unavailable
10
Seat Cushion (Blue) | Blue
204613236
Unavailable
10
Seat Cushion | Copper
204613159
Unavailable
11
Lever Arm Ass’y
204610523
Unavailable
12
Lever Arm
204610524
Unavailable
13
Handle
204610348
Unavailable
14
SPRING - Call your local BRP dealership
204610349
Unavailable
16
Washer
211200059
Unavailable
18
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
19
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
20
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
21
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
22
WASHER - Call your local BRP dealership
293200056
Unavailable
23
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
24
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
25
PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
208561660
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Lower Part
269500636
Unavailable
29
Upper Part
269500637
Unavailable
30
Rectangular Bushing
269500638
Unavailable
31
Rod Ass'y
269500639
Unavailable
32
Spring
269500640
Unavailable
33
Handle
204610348
Unavailable
34
Circle Bushing
269500642
Unavailable
39
Synthetic Grease, 400 G
293550010
Unavailable
43
Front Protector
204610375
Unavailable
44
Rear Protector
204610376
Unavailable
